DP-20 PLUS Web Guide Controller 6-31
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

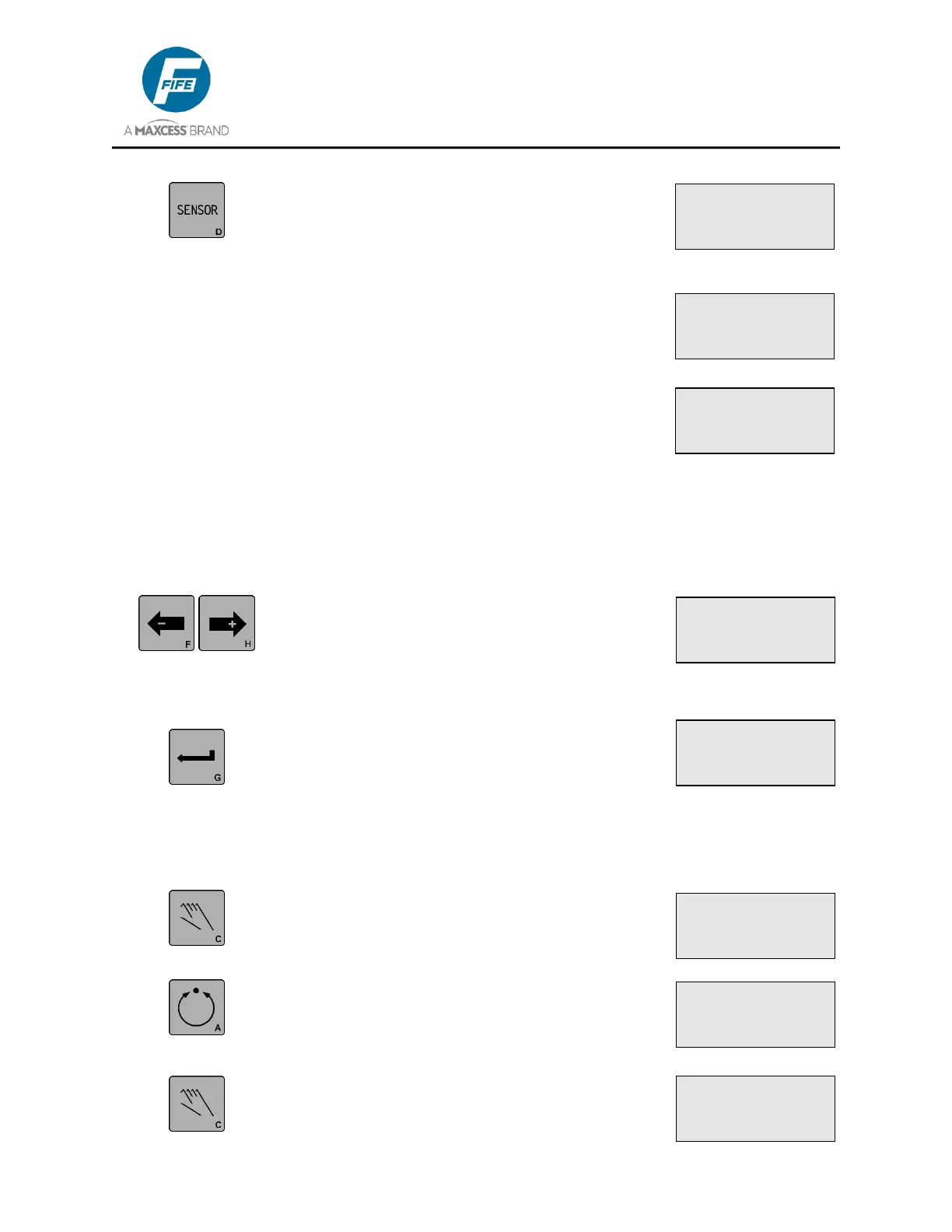

8. Use the SENSOR key to change the mode, if
desired. After a mode change, the mode
designation on line 3 will flash for 20 seconds. If
mode 1 is selected, the guide oscillates back
and forth within 80% of the bandwidth of the
currently selected sensor, simulating
instantaneous 80% Guide Point Shifts. If
mode 2 is selected, the guide oscillates back
and forth within 80% of the bandwidth of the
currently selected sensor, simulating 4% steps
in Guide Point Shift. If mode 3 is selected, the
guide oscillates, switching back and forth
between the Guide Point of the left edge sensor
and the Guide Point of the right edge sensor
(with 0% Guide Point Shift in both sensors). This
requires the sensors to be placed at spacing
wider than the width of the web. The sensor
spacing determines the amplitude of the
oscillation.
9. Use the ARROW keys to modify the oscillation
speed, as displayed on line 4. The left ARROW
key decreases the time per direction change
(increases speed). The right ARROW key
increases the time per direction change
(decreases speed). If an ARROW key is held
down, the speed of the change increases. If
both ARROW keys are pressed
simultaneously, the fastest speed is selected,
which is 0.01 seconds. Press the ENTER key
to store the changes, or if no key is pressed
within 20 seconds, the changes will be stored
automatically. The counter at the end of Line 3
increments on each direction reversal.
10. Pressing the MANUAL key while the oscillator
is running will pause the oscillation. PAUSED
will be displayed on line 2. The unit will remain
paused until another command is issued.
11. Pressing the AUTOMATIC key will resume the
oscillator action at the point it was paused.
12. Pressing the MANUAL key, a second time will
exit the oscillator mode and return to the
Operator Level.
× 3A.3.8.3.1
RUNNING
× MODE1 10
-ÜÜÜÜÜÜÜÜ+ 0.01s
× 3A.3.8.3.2
RUNNING
× MODE2 1
-ÜÜÜÜÜÜÜÜ+ 0.01s
× 3A.3.8.3.3
RUNNING
× MODE3 10
-ÜÜÜÜÜÜÜÜ+ 0.01s
× 3A.3.8.3.1
RUNNING
× MODE1 10
-ÜÜÜÜÜÜÜÜ+ 0.50s
× 3A.3.8.3.1
RUNNING
× MODE1 1
-ÜÜÜÜÜÜÜÜ+ 0.50s
× 3A.3.8.3.1
RUNNING
× MODE1 10
-ÜÜÜÜÜÜÜÜ+ 0.01s
× 3A.3.8.3.1
PAUSED
× MODE1 10
-ÜÜÜÜÜÜÜÜ+ 0.50s
