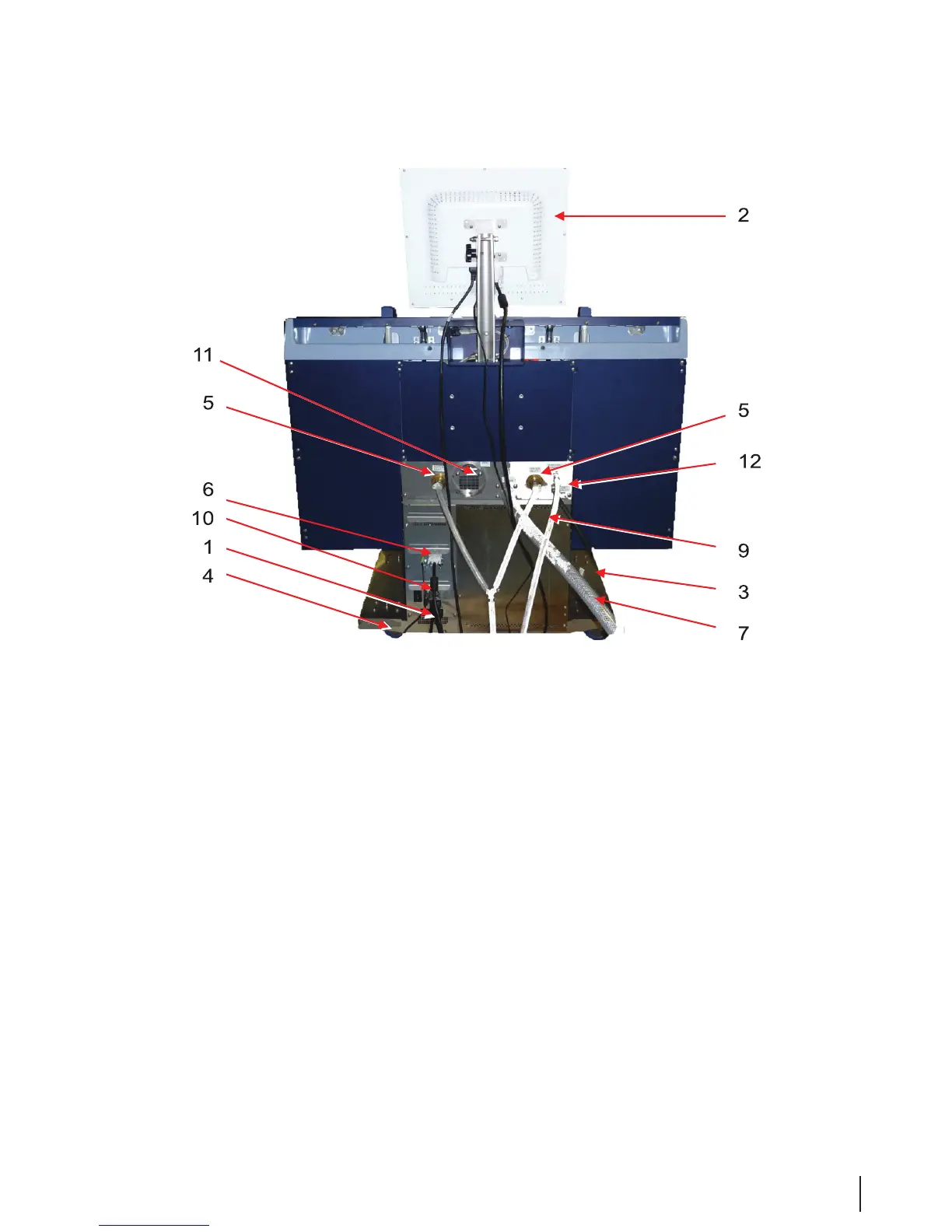

Figure 2 MEDIVATORS
®
ADVANTAGE PLUS
®
AER Back View
1. PC: Runs the programs on the MEDIVATORS ADVANTAGE PLUS System that disinfect the
reprocessor and endoscopes.
2. PC Monitor: Displays messages, menu selections, and the operation status.
3. Base Shroud: Covers and protects the bottom of the MEDIVATORS ADVANTAGE PLUS System.
4. Castors: Wheels which make the MEDIVATORS ADVANTAGE PLUS System easier to move.
Caster wheels can be locked.
5. Water Supply Inputs: Inlet for ltered water, one for each module (3/8” barb tting with hose
clamp, provided).
6. System Power: Electrical power supply connection.
7. Discharge: Fluids output to the drain (1” barb tting).
8. On-Board Air Compressor (Optional accessory not shown): provides pressurized air to the
system in the event that a pressurized air line from the facility is not available.
9. Compressed Air Hookup: Connects with facility pressured air line, if on-board air compressor
accessory is not purchased (1/4” NPT).
10. Circuit Breaker/Power Switch: Toggle switch turns MEDIVATORS ADVANTAGE PLUS on and
off.
11. Vent: Exhausts internal chemical vapor build-up.
