54
System Startup
1. Verify that the MEDIVATORS
®
ADVANTAGE PLUS
®
Automated Endoscope Reprocessor PC and
main power source are on.
2. Open the shutoff valve to the incoming water line. For optimum performance the water supply must
be capable of delivering a minimum of 1.32 gpm (5 L/min) at 35 psi (2 bar).
3. Turn the external air source on (if applicable). External air supply must be capable of delivering house
compressed air (dry / oil free) at a minimum rate of 10.58 G/min (40 L/min) at 87 psi (6 bar).
Daily Service
System Air Pressures
The main air pressure and leak test air pressure are maintained by regulators. The air pressure adjustment
controls and corresponding gauges are located behind the front access door, just above the disinfectant
reservoirs.

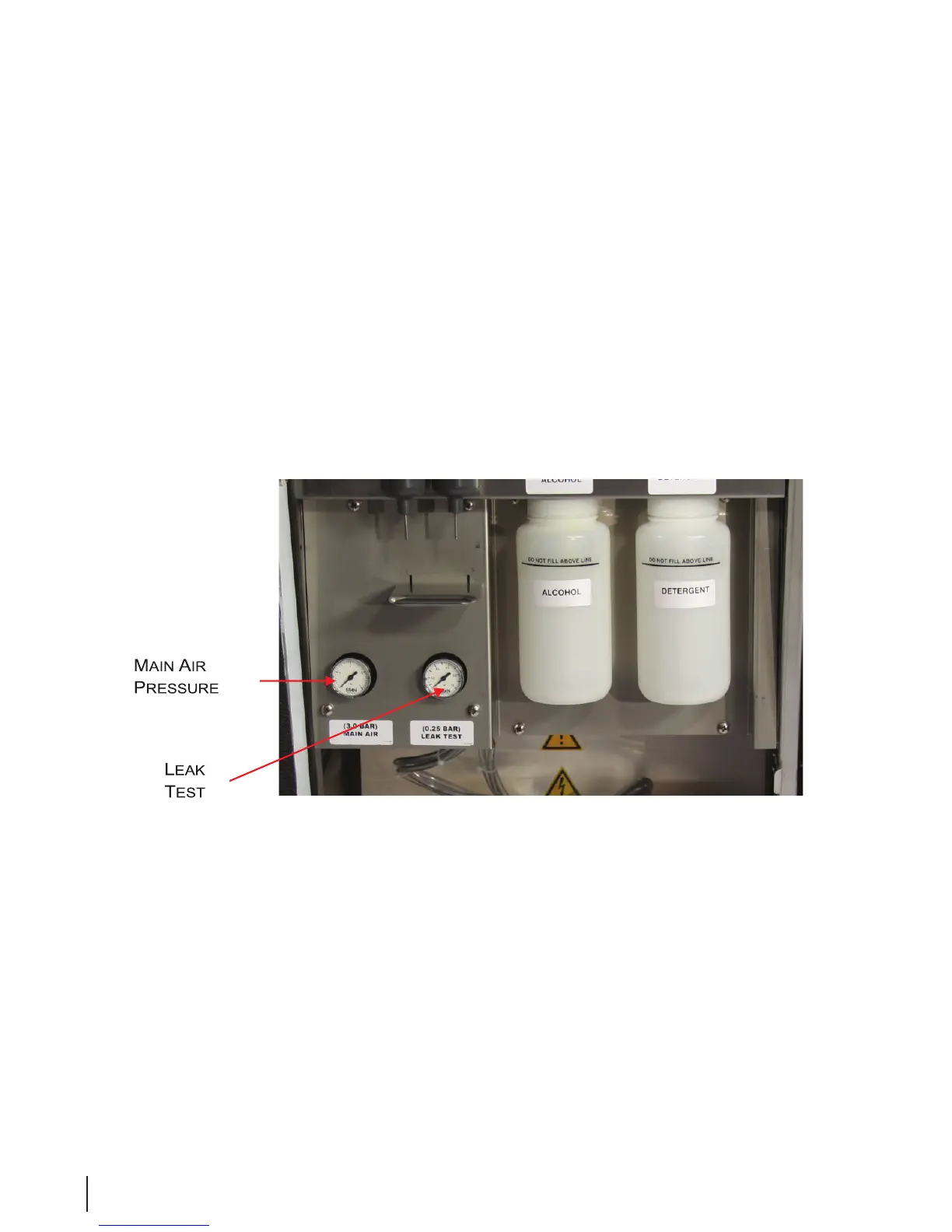

Figure 1 Air Pressure Controls
Proper operation of the MEDIVATORS ADVANTAGE PLUS System reprocessor requires that the air
pressure be set and maintained at the values shown in the table below.
