Chapter 2 Servo System Specifications
2.3 Servo drive dimensions
1．SIZE A (Applicable drive: M5-NS1R6A, M5-NS2R8A)

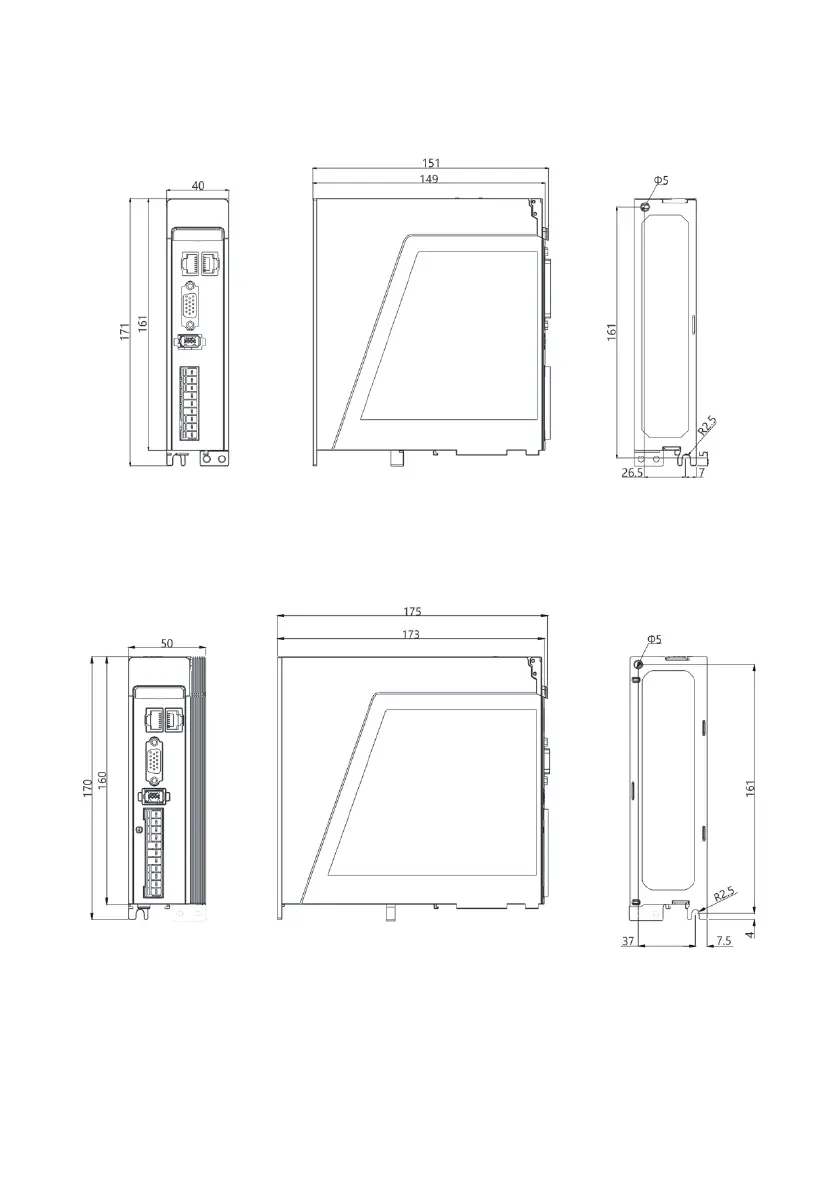

Fig.2-1 Dimensions for servo drive of SIZE A
2．SIZE B (Applicable drive: M5-NS5R5A, M5-NS7R6A)
Fig.2-2 Dimensions for servo drive of SIZE B
