Chapter 4 Wiring of Servo System

4.4 Communication port wiring

M5-N series servo supports EtherCAT communication. The communication ports are CN3 and CN4, where

CN3(IN) is connected to the host controller, and CN4(OUT) is connected to the next slave.

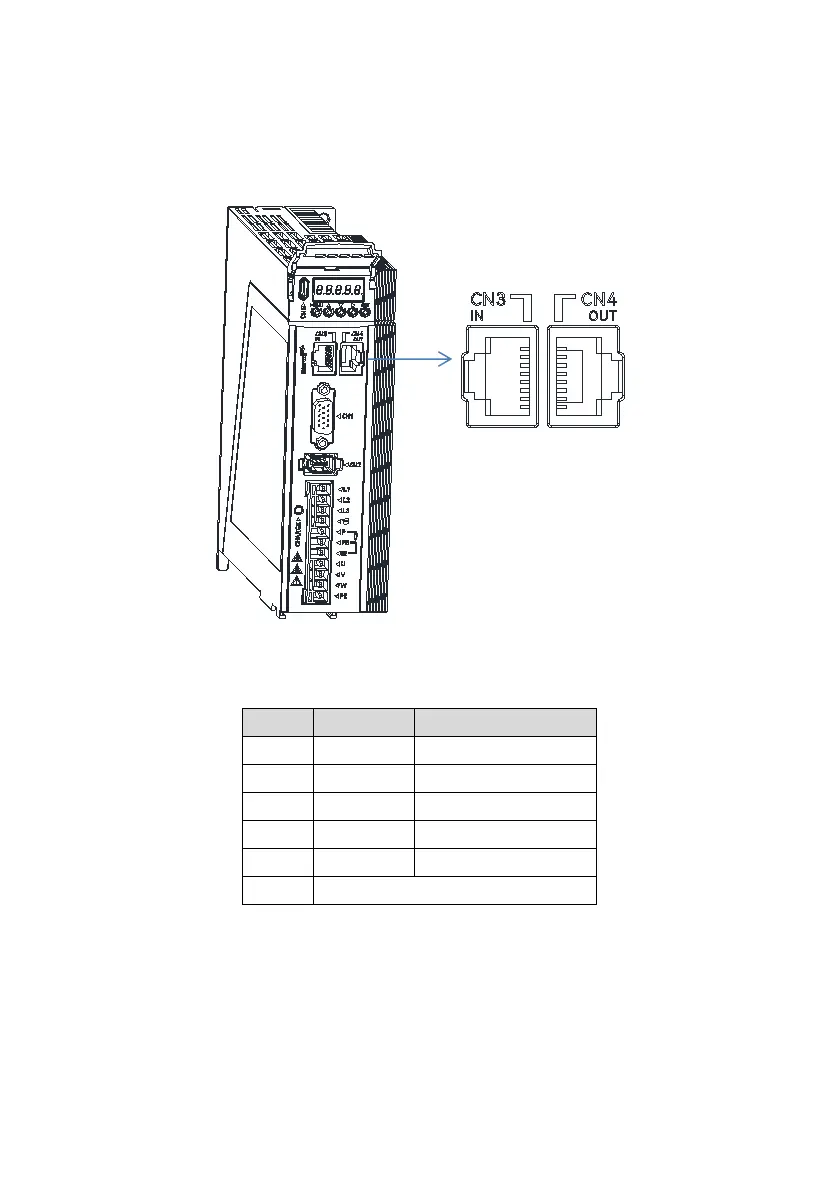

Fig.4-9 Communication interface connection diagram

Table 4-6 Communication port signal definition table

Pin No.

Definition

Description

TX+

Data transmit+

TX-

Data transmit-

RX+

Data receive+

RX-

Data receive-

Housing

Shield

4/5/7/8

Undefined
