6.3 Electronic gear
The use of "electronic gear" function, movement of the workpiece corresponding to the unit command pulse can
be set to any value. In the system control,you can need not consider the mechanical reduction ratio and the
number of encoder pulse.
1)Electronic gear ratio setting method is as follows:

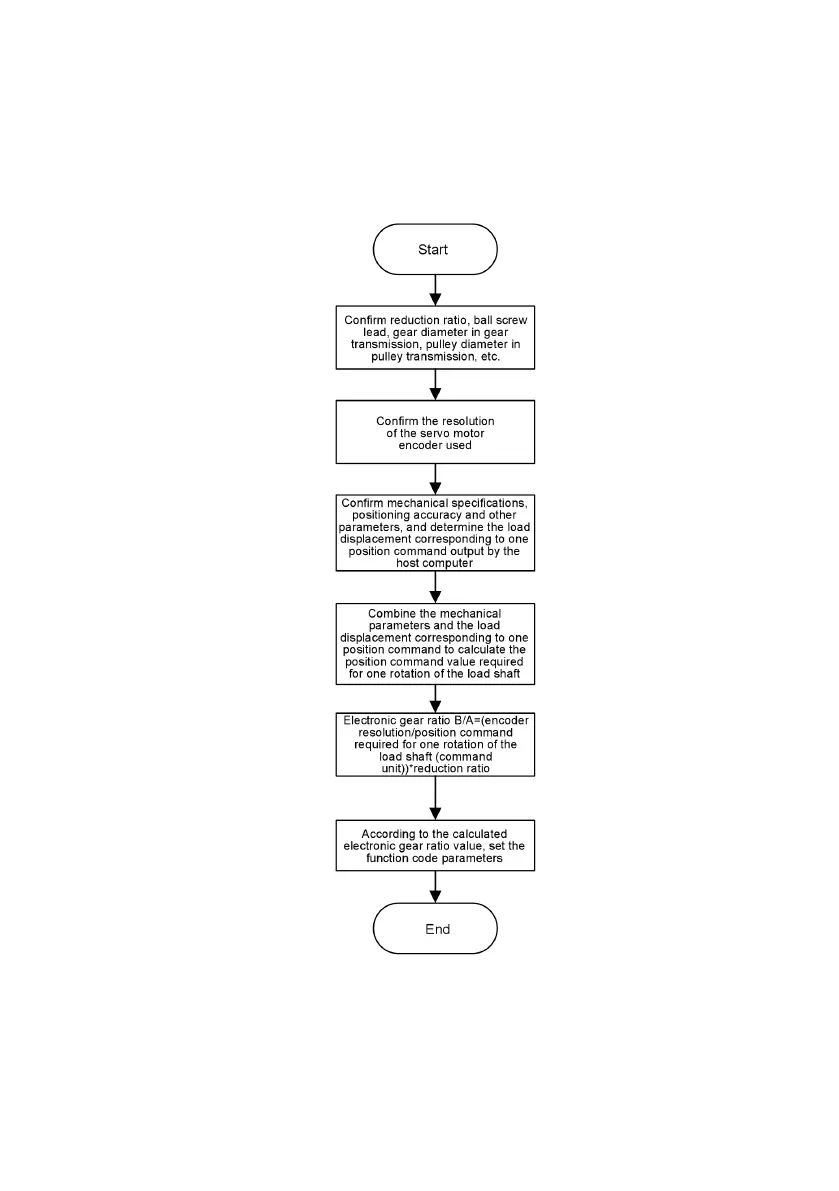

Fig.6-1 Electronic gear ratio setting process
The electronic gear ratio parameter function is shown as follows:
