Megmeet M5-N Series User Manual

Chapter 4 Wiring of Servo System
30
4.2 Servo motor encoder signal connection (CN2)

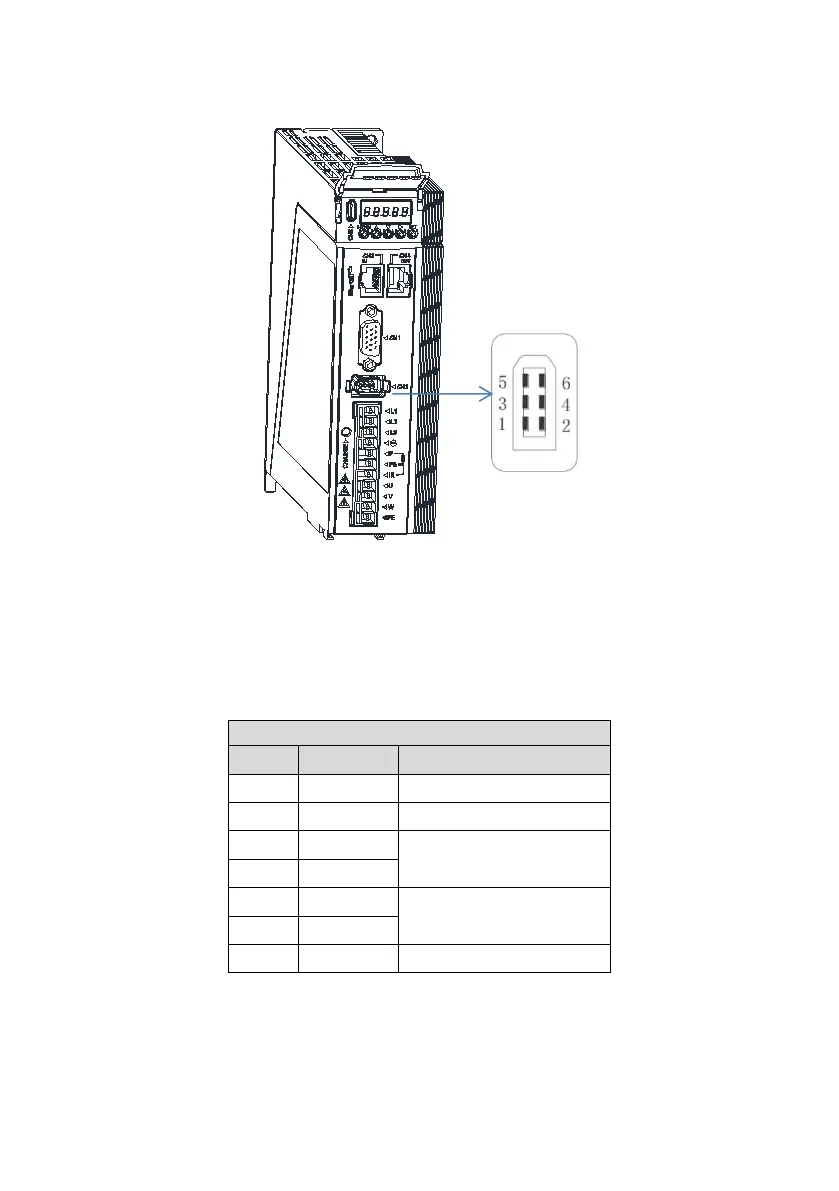

Fig.4-1 Servo motor encoder signal connection diagram
The motor encoder interface of the M5-N servo drive supports absolute encoder, and the interface signals are
defined in the table 4-3.
Table 4-3 Encoder port definition
Connection port: CN2, 1394 interface
Pin
Signal name
Signal description
1
+5V
Power +5V
2
GND
Power ground
3
Reserved
-
4
Reserved
5
SD+
Serial data signal
6
SD-
Shell
PE
Shield
