Megmeet M5-N Series - Page 34

Chapter 4 Wiring of Servo System
34
(3) Source (PNP) output
When the controller input is a source input, the wiring mode is as shown in Fig.4-8.

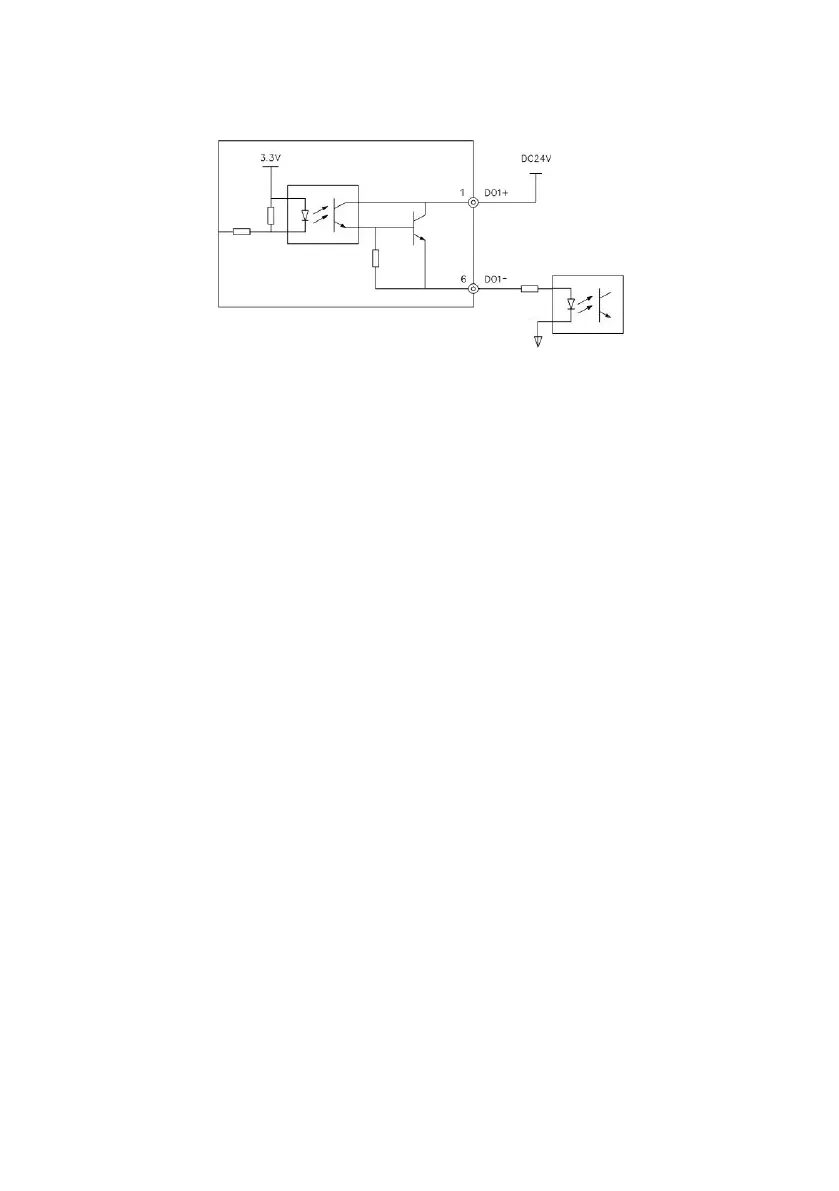

Fig.4-8 DO terminal source (PNP) output wiring mode
