Megmeet M5-N Series User Manual

Chapter 3 Installation Description
23
SIZEB:Actual load ratio ≤80%). When installing multiple servo drives side by side, it is recommended to leave a
spacing of more than 20mm on both sides of the horizontal installation (required for heat dissipation) and a
spacing of more than 50mm on both sides of the vertical installation.
Clearance for compact installation
Clearance for side-by-side installation

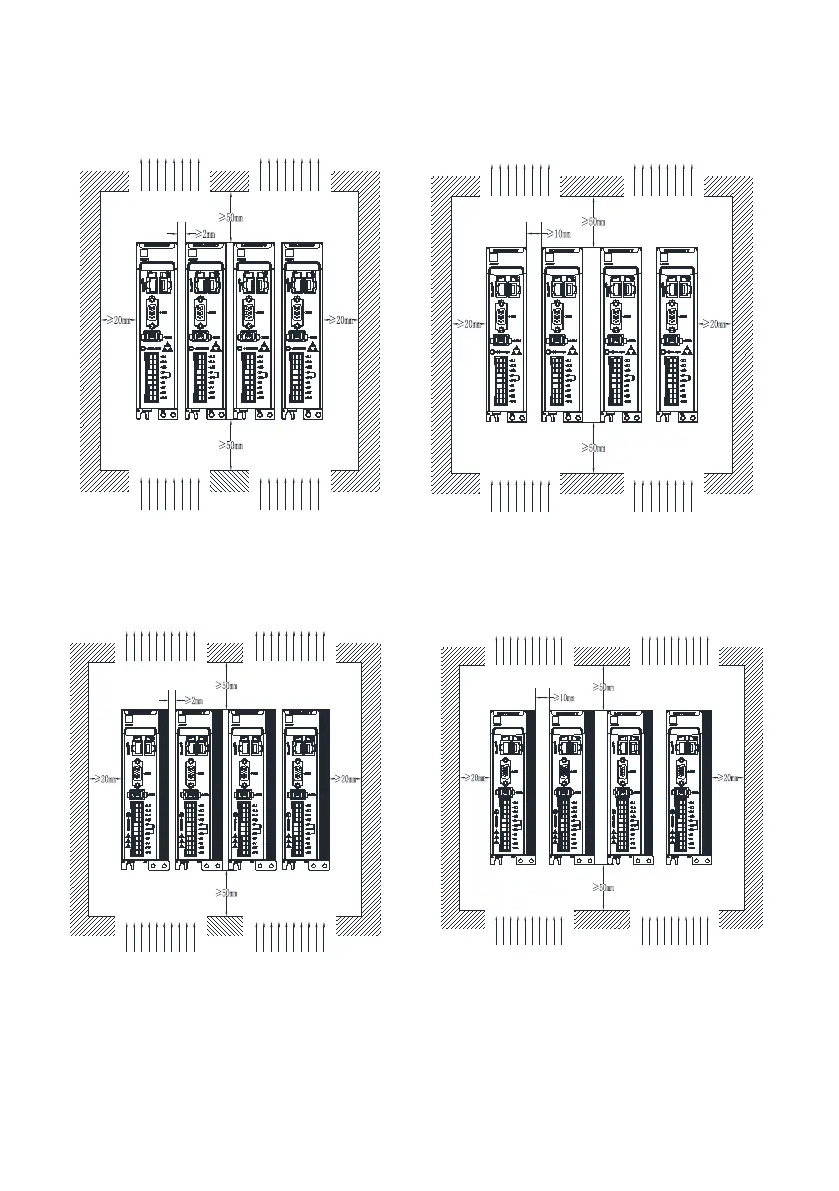

Fig.3-1 SIZE A servo installation diagram
Clearance for compact installation
Clearance for side-by-side installation
Fig.3-2 SIZE B servo installation diagram
