Chapter 3 Installation Description

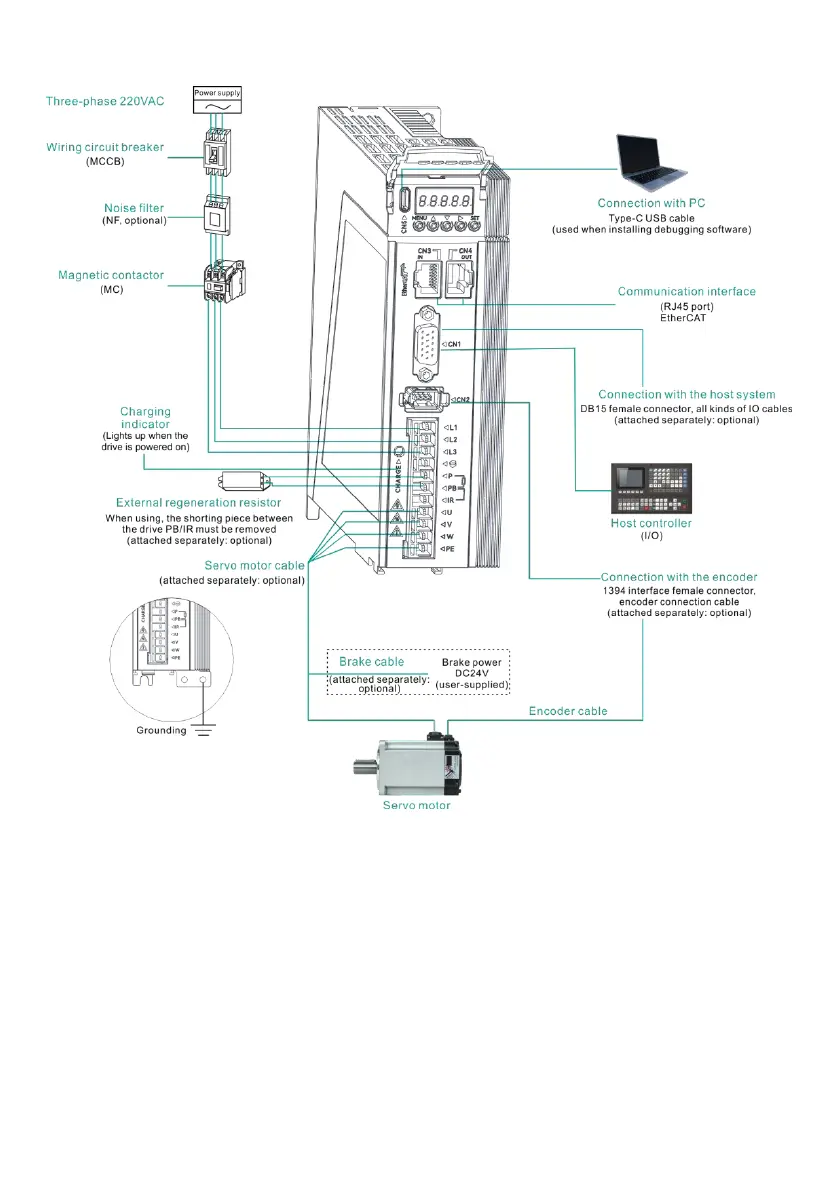

Fig.3-4 Three-phase 220V servo system wiring diagram
Note:
Single-phase 220V system wiring is only applicable to 220V drive models of M5-NS5R5A and below
Three-phase 220V system wiring is only applicable to 220V drive models of M5-NS5R5A and above
System wiring should pay attention to:
Make sure the power specifications and wiring of L1, L2, L3 are correct to avoid damage and danger to the
drive.
Make sure the motor output U, V, W phase sequence wiring is correct, otherwise it may cause abnormal
motor rotation.
