SERVICE MANUAL NUMBER 22
STERNDRIVE (MCM) MODELS
Page 2A-8 90-860074--1 FEBRUARY 2002
6. Align rear engine mounts with inner transom plate mounts while simultaneously aligning
exhaust system. DO NOT relieve hoist tension.
22032
74298
IMPORTANT: Engine attaching hardware must be installed in sequence shown.
7. Install both rear engine mounting bolts and hardware as shown. Torque to 47-54 Nm
(35-40 lb-ft).
22032
a
b
c
d
e
f
g
h

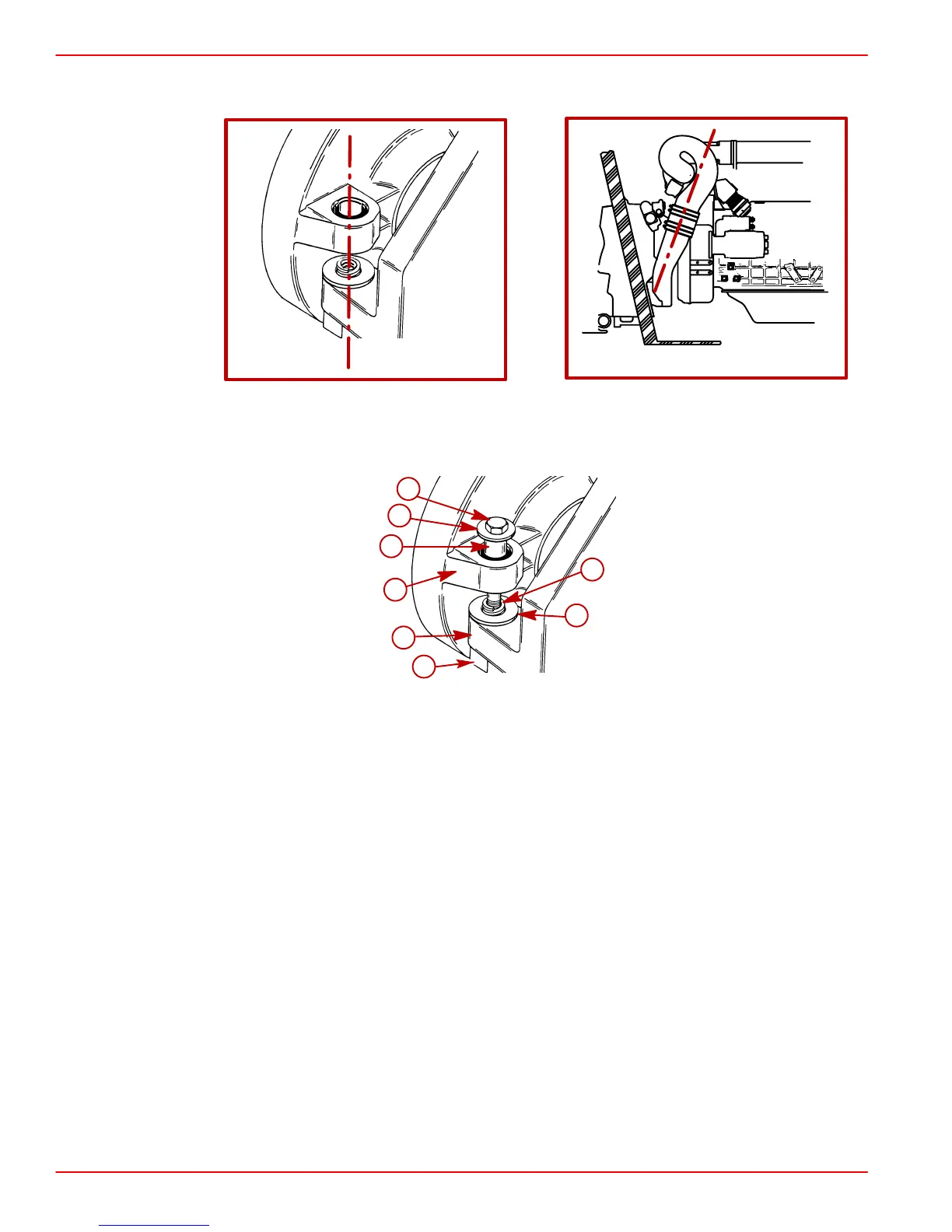

a-Rear Engine Mount
b-Inner Transom Plate Mount
c-Bolt
d-Washer
e-Spacer
f-Fiber Washer
g-Double-Wound Lockwasher
h-Locknut (Not Shown)
