SERVICE MANUAL NUMBER 22
STERNDRIVE (MCM) MODELS
Page 2A-14 90-860074--1 FEBRUARY 2002
20. When alignment is correct, tighten locknuts and jam nuts securely.
NOTE: Coat both nuts and threaded portion of mount with Perfect Seal if used in a saltwater
environment to reduce rust and ease of serviceability.
23161
a
b
c
d
e
f
g

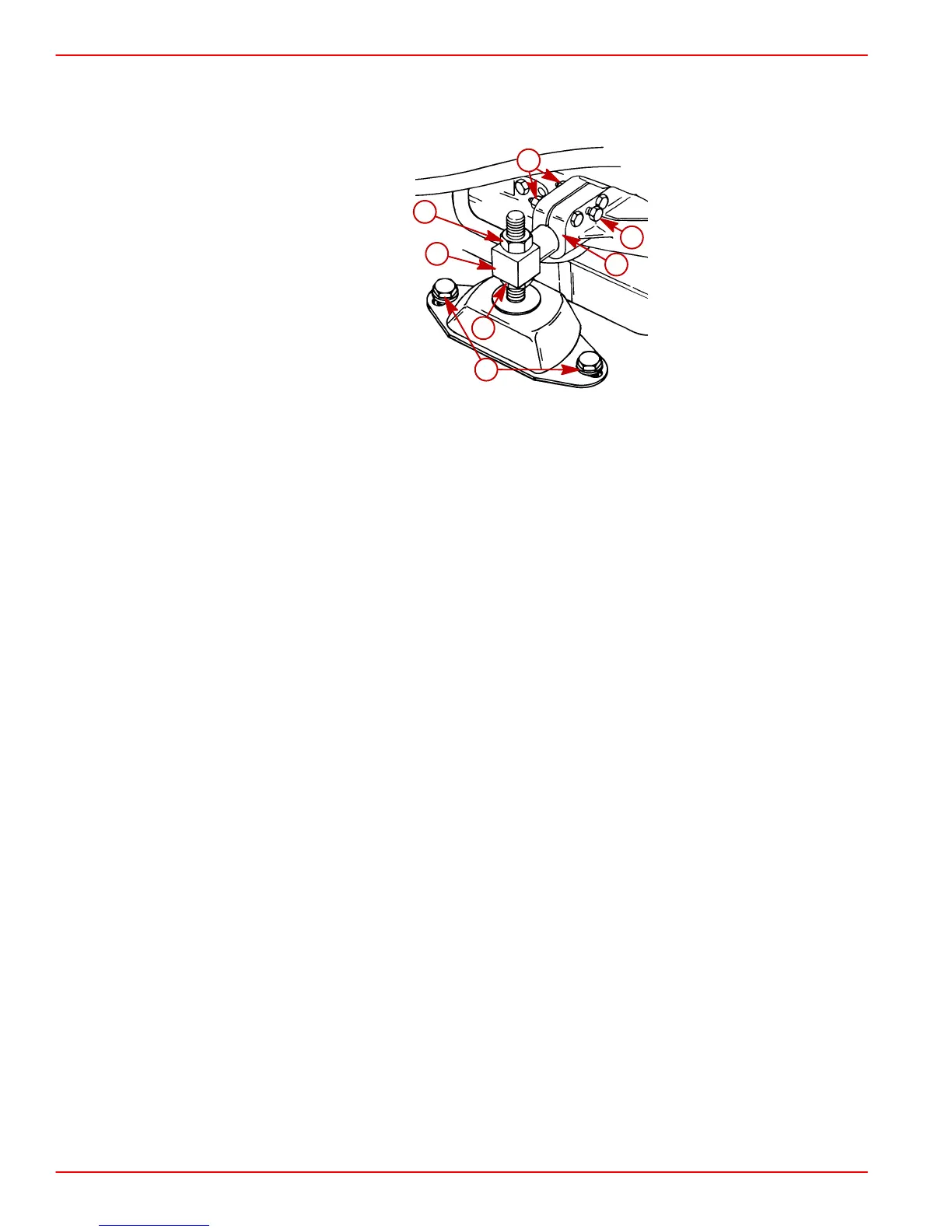

Typical
a-Locknut
b-Bracket
c-Mount Adjustment Nut
d-Lag Bolts
e-Clamp
f-Nuts
g-Clamp Spread-Screw
21. Remove alignment tool.
22. Remove chain sling from lifting eyes.
23. Install sterndrive unit. Refer to appropriate Mercury MerCruiser Sterndrive Service
Manual.
