SERVICE MANUAL NUMBER 22 STERNDRIVE (MCM) MODELS
90-860074--1 FEBRUARY 2002 Page 2A-13
17. On port front mount do as follows:
a. Position ECM assembly mounting bracket holes directly over front, port engine
mount holes.
NOTE: It may be necessary to lower, or raise, the ECM assembly and bracket in slotted hole,
depending upon the final configuration of the power package, to position ECM on front
mount.
b. Fasten ECM mounting bracket and front mount assembly to boat stringer using
appropriate hardware (lag bolts or through bolts etc.).

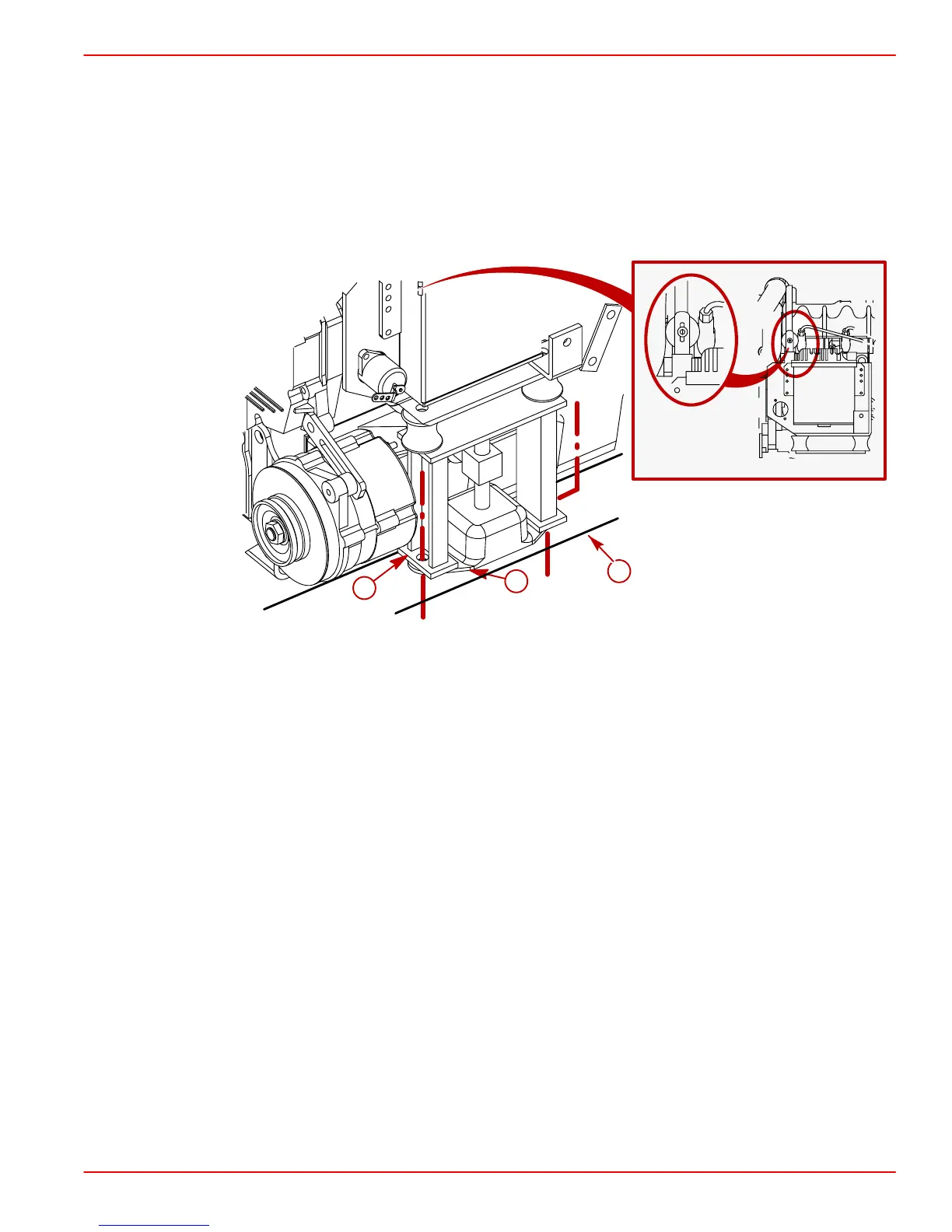

75301
a
b
c
d
a-ECM Assembly Mounting Bracket
b-Front, Port Engine Mount
c-Stringer
d-Slotted Hole For Raising Or Lowering ECM Assembly
18. Tighten both front mounts onto boat stringers using appropriate hardware.
19. Recheck alignment with alignment tool. Tool must enter coupler splines freely. If not,
readjust front mounts.
NOTE: Turn mount adjustment nut left to lower, and right to raise, the front of the engine.
Loosen nuts on mount clamping bolts to move bracket side-to-side.
