Page 2A-12 90-860074--1 FEBRUARY 2002
14. Attempt to insert the solid end of the alignment tool.
a. Repeat step 13. and 14. until the alignment tool installs easily (SLIDES FREELY
WITH TWO FINGERS) all the way into and out of engine coupler splines. Do not
check by turning.
NOTE: This may require tapping the sides of the tool. Do NOT check by turning. By greasing
the splines you can identify which side has interference.
71463
b
c
a

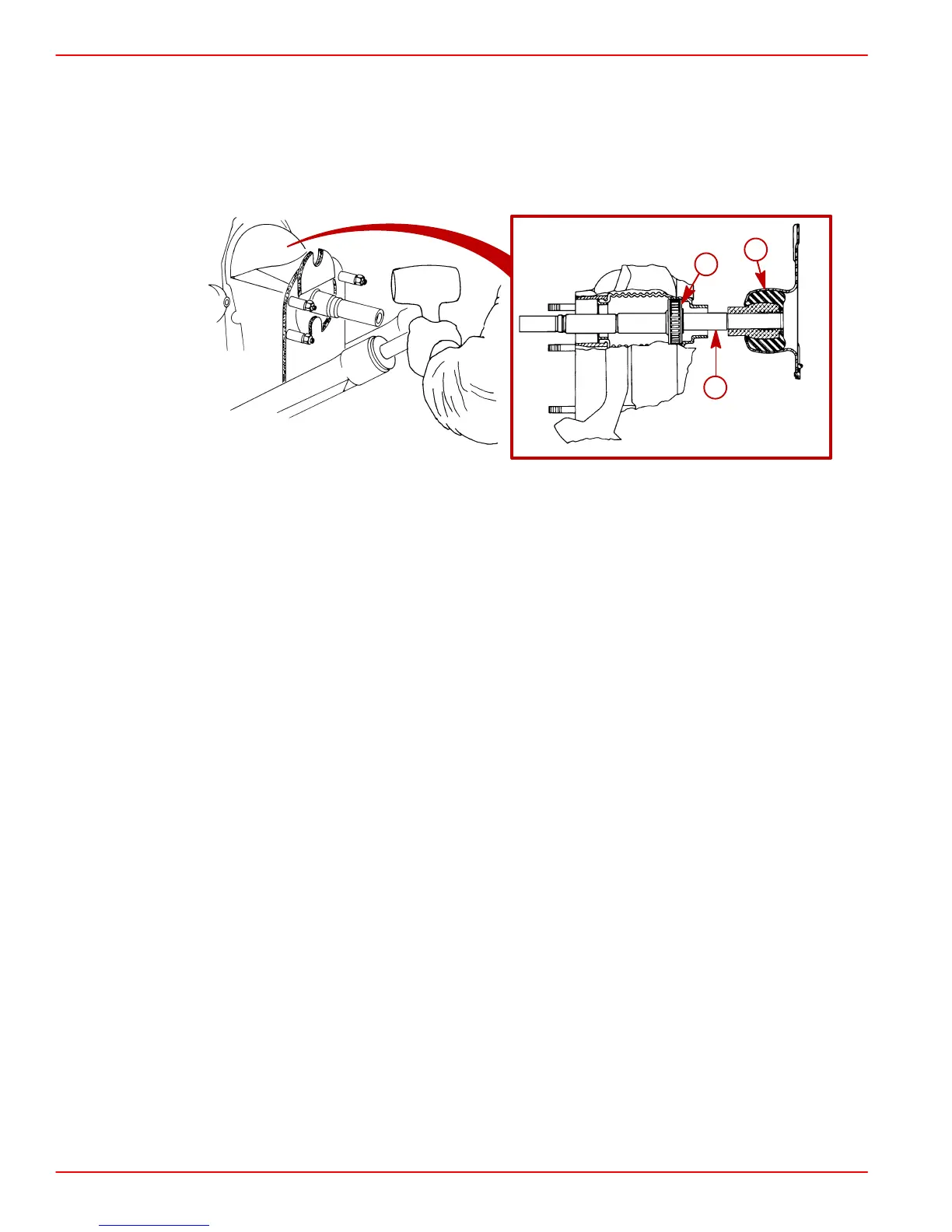

70013 76921
a-Alignment Tool
b-Gimbal Bearing
c-Engine Coupler
15. Front engine mounts must rest on boat stringer. Adjust front engine mounts if necessary.
16. Relieve hoist tension entirely.
To Next Page
