SERVICE MANUAL NUMBER 22 STERNDRIVE (MCM) MODELS
90-860074--1 FEBRUARY 2002 Page 2A-11
13. If the alignment tool does not fit, remove it and carefully adjust engine mounts as
necessary:
a. To Adjust Engine Up or Down: Loosen locknut on mounts. Turn adjusting nuts as
necessary. Retighten locknuts.
IMPORTANT: Large diameter of mount trunion MUST NOT extend over 19 mm (3/4 in.)
from edge of mount bracket to centerline of mount stud.
b. To Move Engine Left or Right: Loosen trunion clamping bolts on both front mounts
and move engine as necessary. Do NOT over-extend mount trunion. Retighten
locking nuts.
NOTE: A small amount of side-to-side adjustment can be obtained from the slots on the
engine mount pads.
23161
g
b
c
a
e
f
d

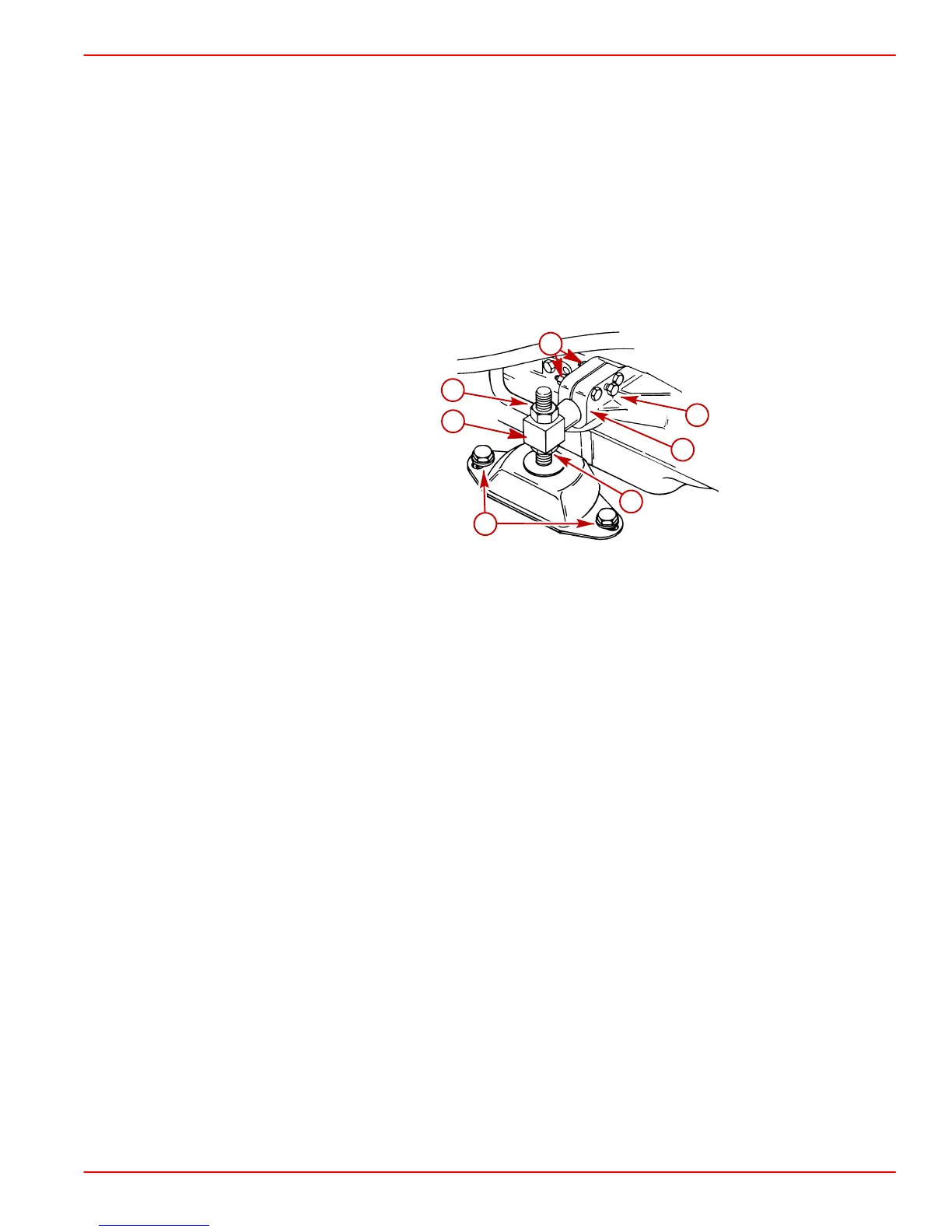

Typical
a-Locknut
b-Bracket
c-Mount Adjustment Nut
d-Lag Bolts
e-Clamp
f-Clamp Spread-Screw
g-Nuts
