SERVICE MANUAL NUMBER 22
STERNDRIVE (MCM) MODELS
Page 2A-10 90-860074--1 FEBRUARY 2002
CAUTION
Do NOT use an alignment tool from another manufacturer. Alignment tools other
than Quicksilver Alignment Tool, may cause improper alignment and damage to
gimbal bearing and/or engine coupler.
CAUTION
To avoid damage to gimbal bearing, engine coupler, or alignment tool:
• Do NOT attempt to force alignment tool!
• Do NOT raise or lower engine with alignment tool inserted (or partially
inserted) in gimbal bearing or engine coupler.

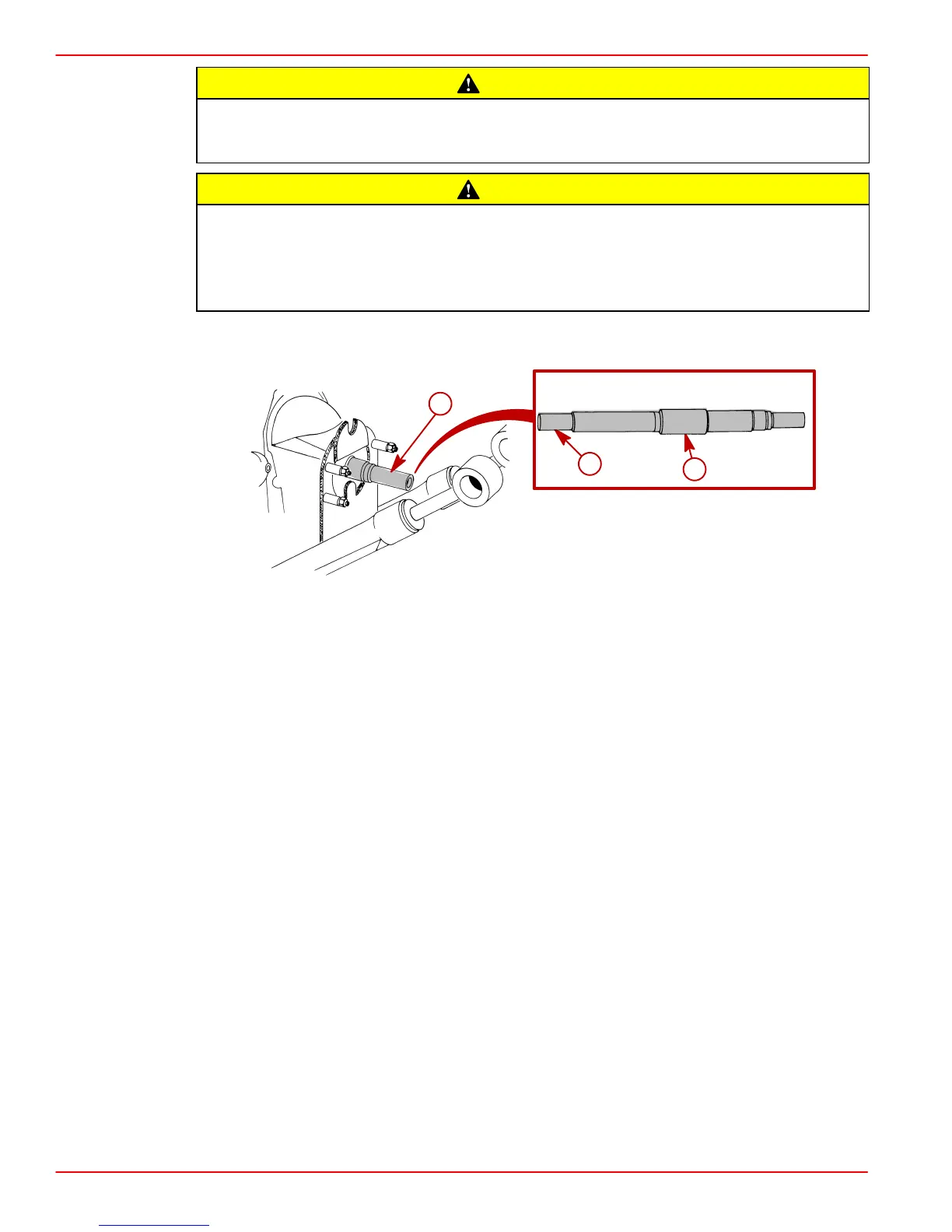

12. Attempt to insert the solid end of the alignment tool through the gimbal bearing and into
the engine coupler splines.
70013
a
b
a
a-Alignment Tool (Use Only Recommended Quicksilver Alignment Tool)
b-Insert This End Of Alignment Tool Through Gimbal Housing Assembly
To Next Page
