11. Connect instrument extension harness ends to engine harness ends. Connector collars
must be fully engaged and secure. Tighten threaded connector collar of extension
harness onto connector on side of electrical box.
75301
75333
75337
e
a
b
c
f
a
b
c
d

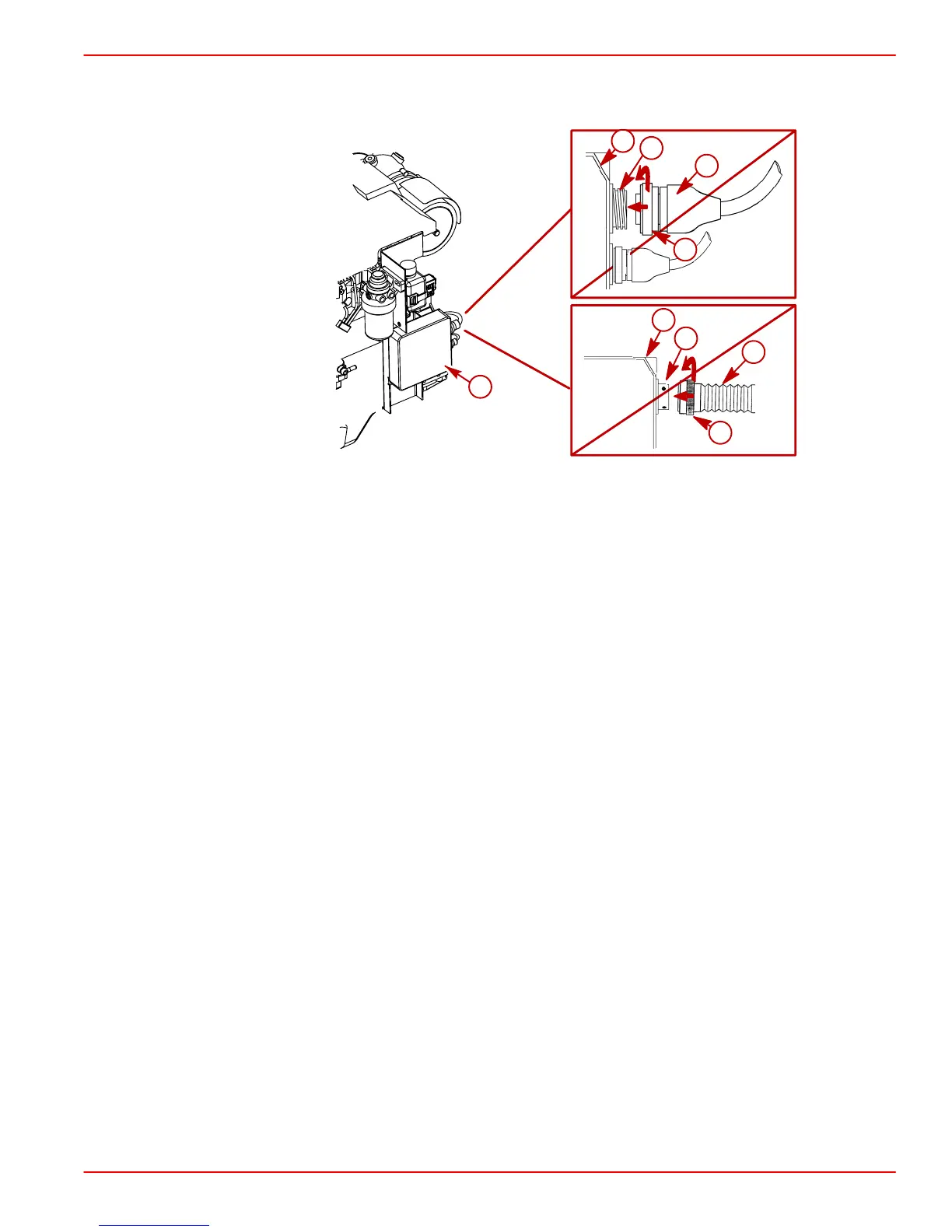

Standard And 21-Pin Deutscht Connections
a-Extension Harness From Instruments
b-Engine Harness and Connector End
c-Connector Collar
d-Location of Electrical Box
e-Electrical Box - With Standard Connectors
f-Electrical Box - With 21-Pin Deutscht Connector
12. After all wires are connected, secure them with clamps or tie straps which may have
been retaining them to engine or hoses prior to removal.
