SERVICE MANUAL NUMBER 22
STERNDRIVE (MCM) MODELS
Page 2A-26 90-860074--1 FEBRUARY 2002
6. Adjust remote control shift cable as follows:
a. Temporarily install shift cable end guide into shift lever, and insert anchor pin.
b. Adjust shift cable barrel so that hole in barrel centers with vertical centerline of stud.
Ensure that backlash center mark is aligned with edge of control cable end guide.
CAUTION
Do NOT attempt to install or remove remote control shift cable barrel from stud,
without first removing end guide anchor pin from shift lever, and removing cable.
Attempting to bend shift cable to install or remove barrel, will place undue stress
on cable end guide and shift lever, and damage to both could occur.
c. Remove shift cable end guide from shift lever by removing anchor pin.

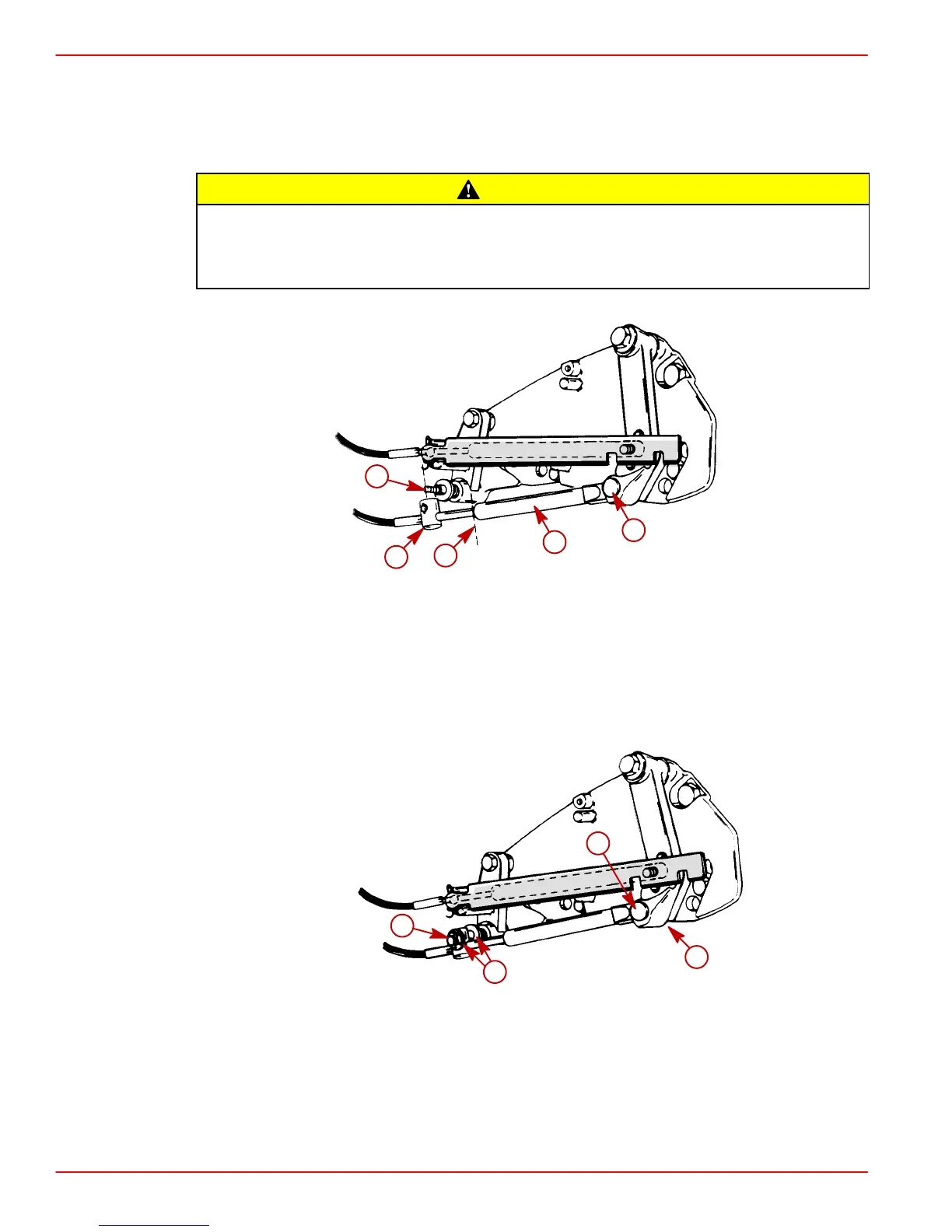

23242
a
b
c
e
d
a-Remote Control Shift Cable End Guide
b-Anchor Pin
c-Backlash Center
d-Remote Control Shift Cable Barrel
e-Stud
7. Install remote control shift cable. Tighten locknut until it contacts cable end guide. Insert
cotter pin from the top and spread both ends.
23242
a
b
c
d
a-Locknut
b-Washers - Both Sides of Barrel
c-Anchor Pin
d-Cotter Pin (Not Visible)
To Next Page
