8. Remove adjustment tool.
9. Shift remote control lever into full forward position. Place end of adjustment tool in barrel
retainer.
Rh Rotation - All Bravo One, Two, And Three Models: Rear slot in tool should fit over shift
lever stud.
Lh Rotation - All Bravo One And Two Models: Forward slot in tool should fit over shift
lever stud.
If slot does not fit over stud, loosen shift lever stud and slide stud either direction, until slot
in tool fits over stud. When adjustment is correct, retighten stud.

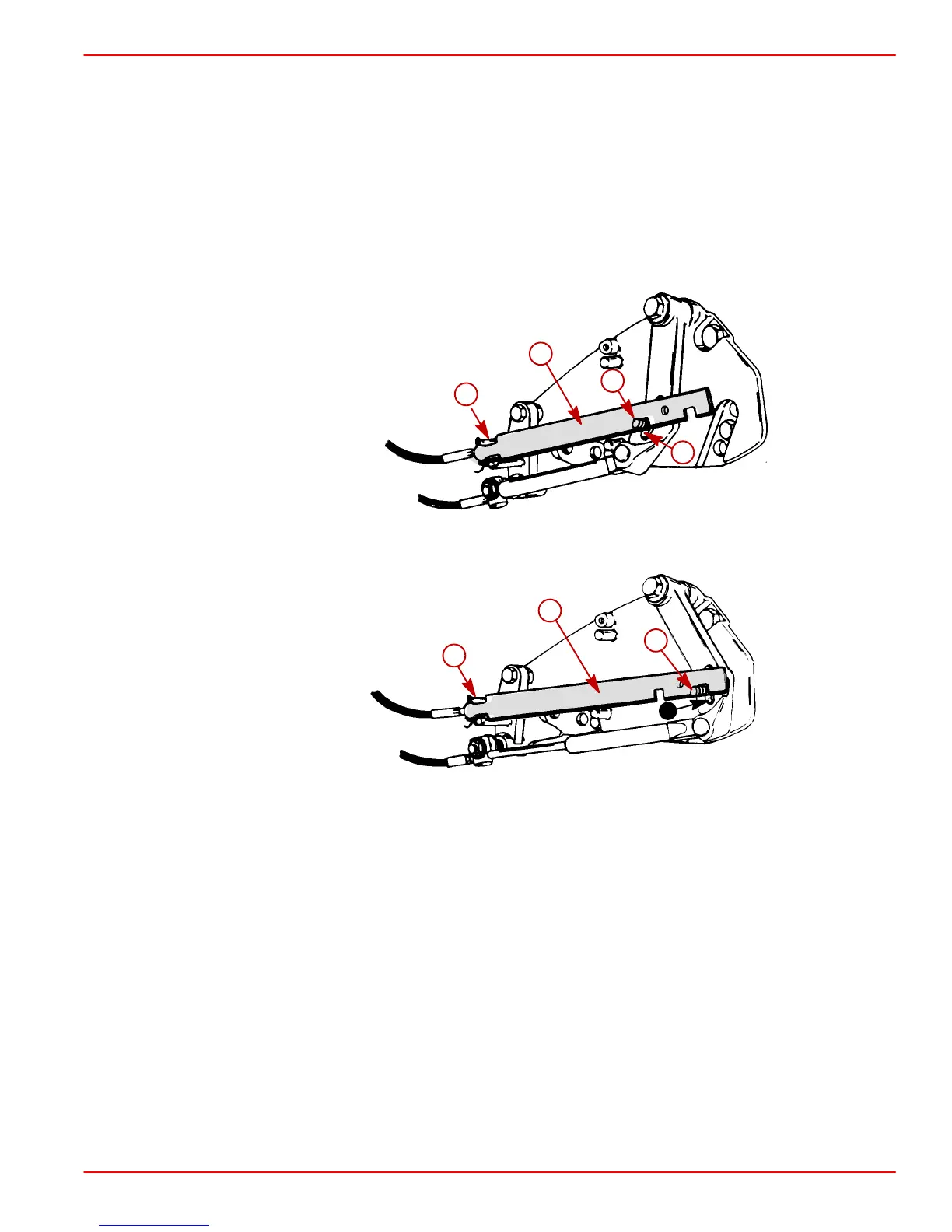

23242
a
b
c
d
RH Rotation - All Bravo One, Two, Three
23242
d
a
b
c
LH Rotation - All Bravo One And Two
a-Adjustment Tool
b-Barrel Retainer
c-Shift Lever Stud
d-Shift Lever Adjustment Slot
10. Remove adjustment tool.
11. Lubricate shift cable pivot points with 30W engine oil.
