INBOARD (MIE) MODELS SERVICE MANUAL NUMBER 22
Page 2B-12 90-860074--1 FEBRUARY 2002

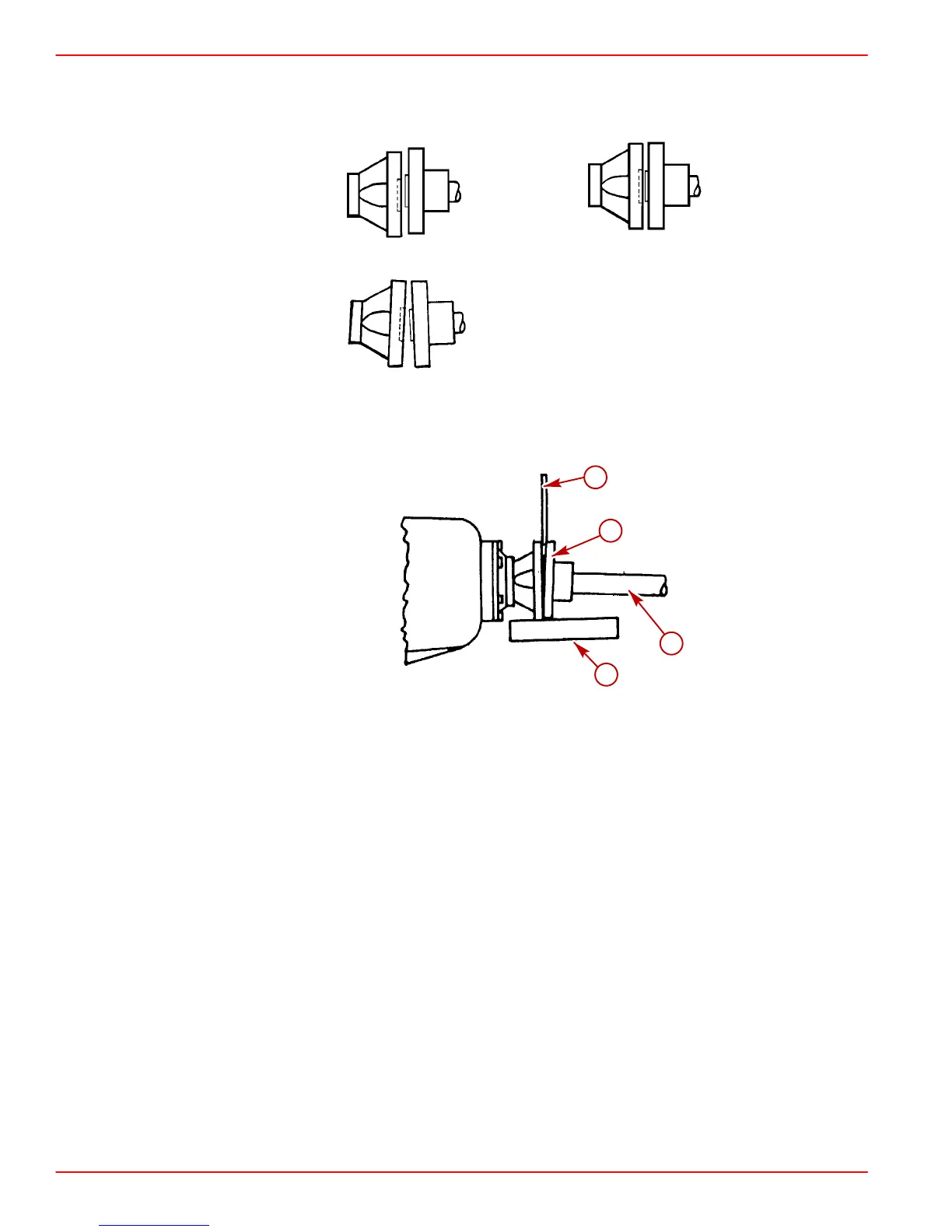

3. Ensure that coupling centerlines align, by butting propeller shaft coupler against
transmission output flange. Shoulder on propeller shaft coupler should engage recess
on transmission output flange face with no resistance.
72597
INCORRECT
CORRECT
INCORRECT
NOTE: Some propeller shaft couplers may not have a shoulder on mating face. On these
installations, use a straight edge to check centerline alignment.
72598
c
b
a
d
a-Feeler Gauge
b-Transmission Coupling
c-Propeller Shaft
d-Straight Edge
