INBOARD (MIE) MODELS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 2B-19
WARNING
Be careful when working on fuel system components; diesel fuel is flammable.
Ensure that the ignition key is OFF. Do NOT smoke or allow sources of open flame
in the area while changing fuel system components. Wipe up any spilled fuel
immediately. Do NOT allow fuel to come into contact with any hot surface which
may cause it to ignite.

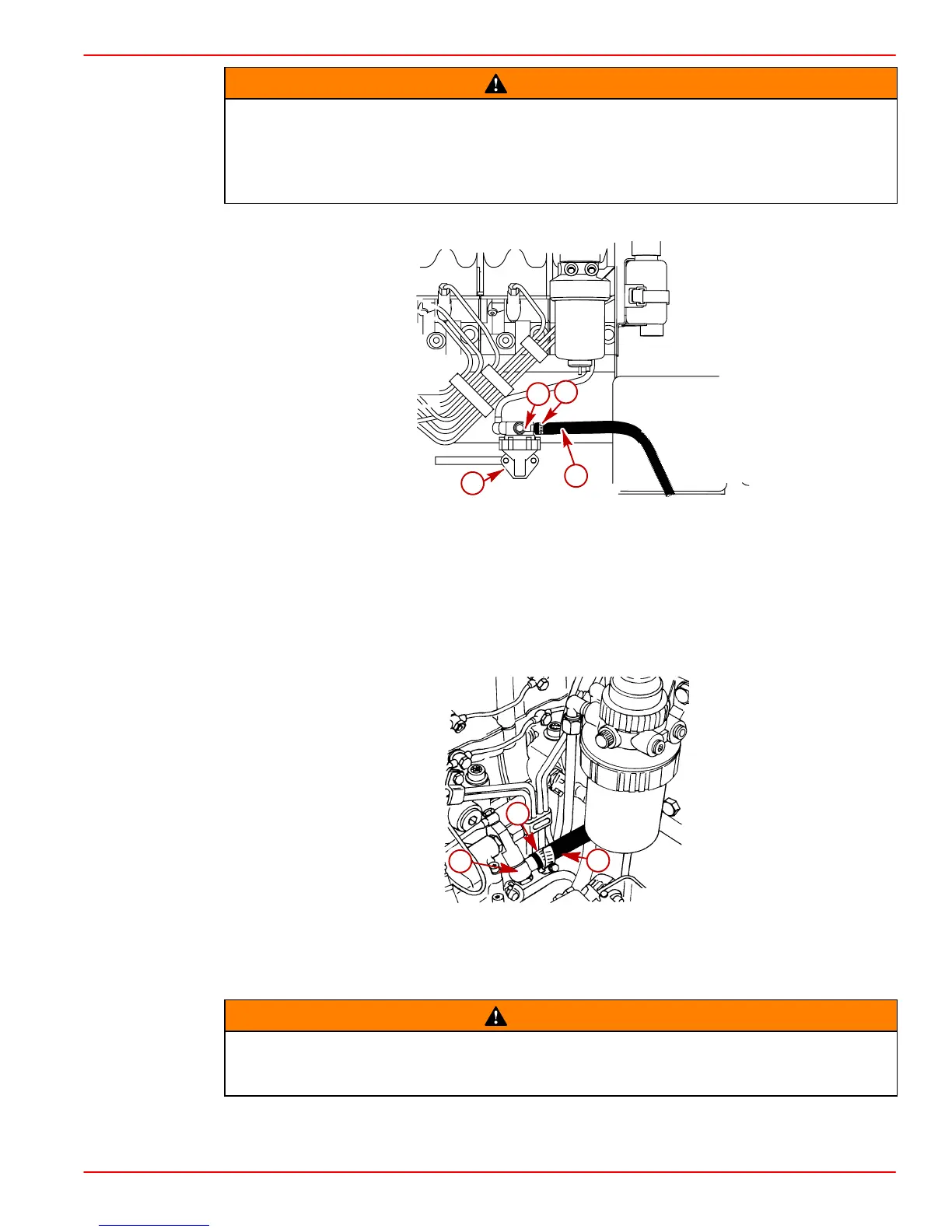

3. Connect flexible fuel line to inlet fitting on fuel pump. Secure with hose clamp.
75298
a
b
c
d
a-Fuel Line
b-Hose Clamp
c-Inlet Fitting
d-Fuel Pump
4. Connect flexible return fuel line to injection pump fuel return line fitting. Secure with hose
clamp.
75579
a
b
c
a-Return Fuel Line
b-Return Fitting
c-Hose Clamp
WARNING
Dispose of fuel-soaked rags, paper, etc., in an appropriate airtight, fire-retardant
container. Fuel-soaked items may spontaneously ignite and result in a fire hazard
which could cause serious bodily injury or death.
