ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-140 90-860074--1 FEBRUARY 2002
c. Refer to the following chart to determine and select the shim thickness required:
Liner
Liner Recess BELOW Block Shim To Be Used
Protrusion
ABOVE Block
(Without Shim) (Thickness)
ABOVE Block
(With Shim)
0.14 - 0.09 0.15
(.0055 - .0035) (.0059)
0.19 - 0.14 0.20
0.01 - 0.06
(.0074 - .0055) (.0078)
(.0004 - .0023)
0.22 - 0.17 0.23
(.0086 - .0066) (.0090)
d. Remove liner and install shim selected and refit liner.
e. Measure protrusion. Adjust using alternate shim if required.

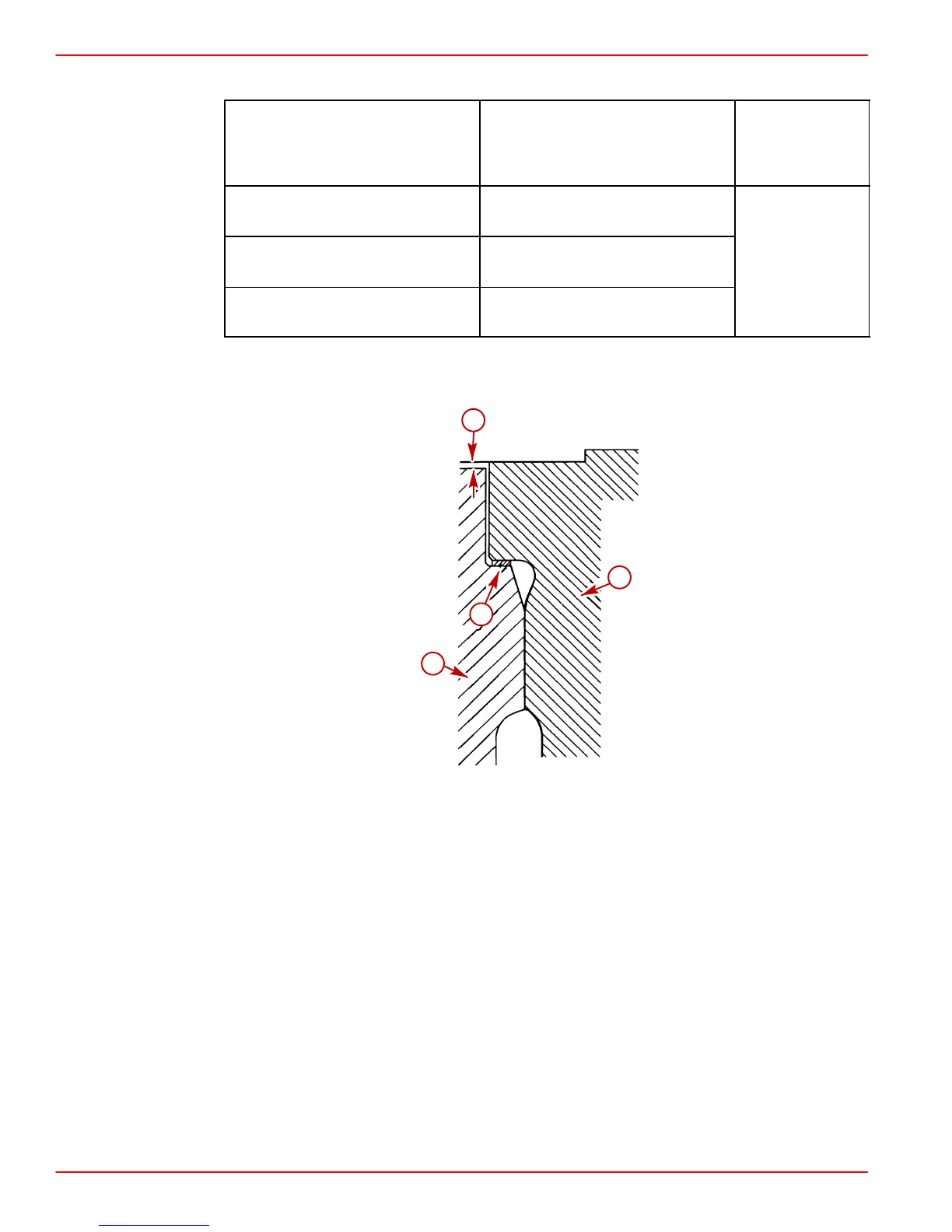

70475
a
b
c
d
a-Cylinder Liner Protrusion (Height Above Block Surface)
b-Cylinder Liner
c-Cylinder Block
d-Shim
