ENGINE MECHANICAL
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 3A-141

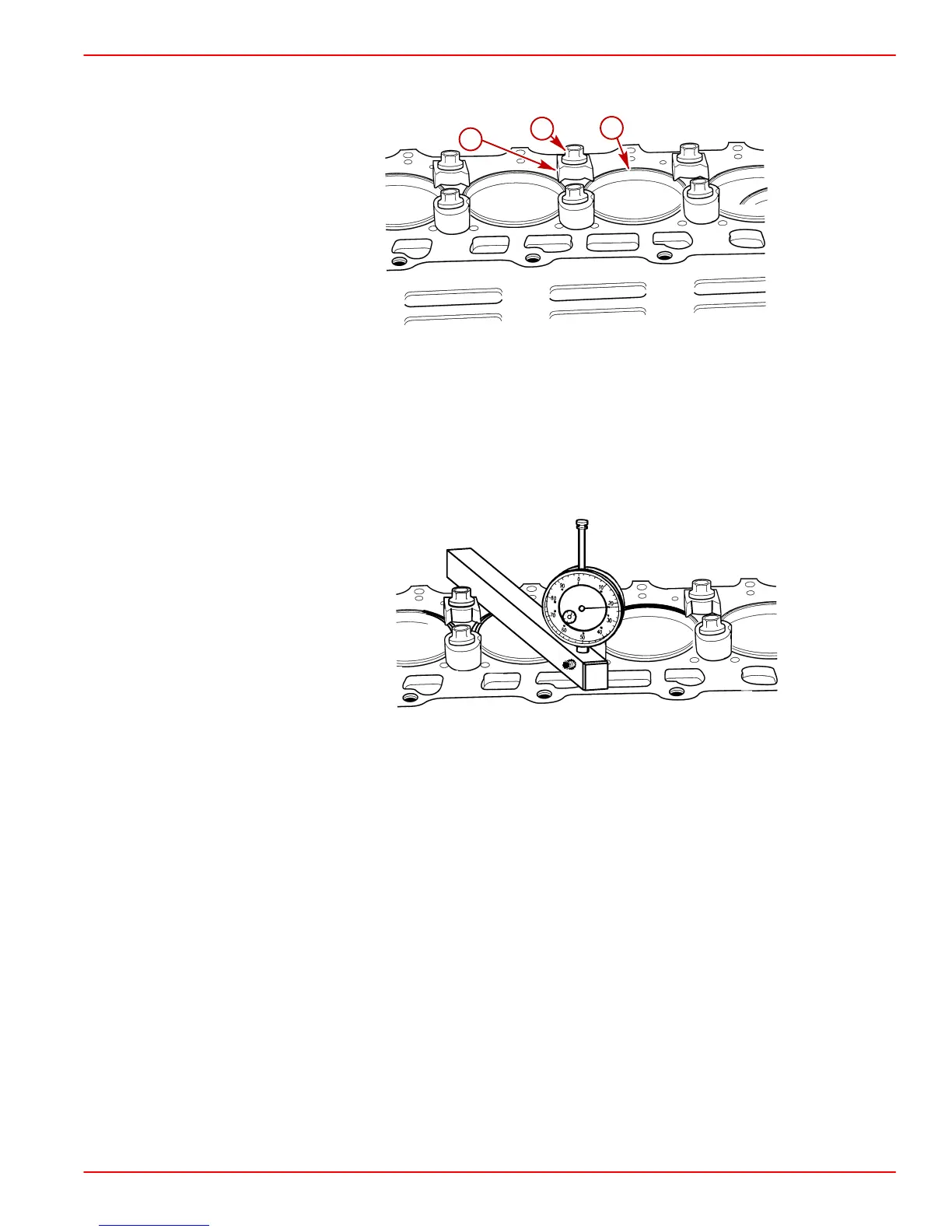

2. Tighten liners, with appropriate shims, to 30 Nm (22 lb-ft) and formed spacer-washers
as shown.
75015
a
b
c
a-Liner
b-Suitable Bolt
c-Formed, Spacer-Washer
3. Recheck-liners for proper amount of protrusion using liner gauge bar 91-184812A1
(SAE) or 91-801333509 (Metric) and appropriate dial gauge as shown. If not as
specified, adjust protrusion as previously outlined until each liner is protruded 0.01 -
0.06mm (.0004 - .0023 in.) above block.
75551
4. Remove liners in order, keeping appropriate shims matched to liners.
