MAINTENANCE

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 1B-27

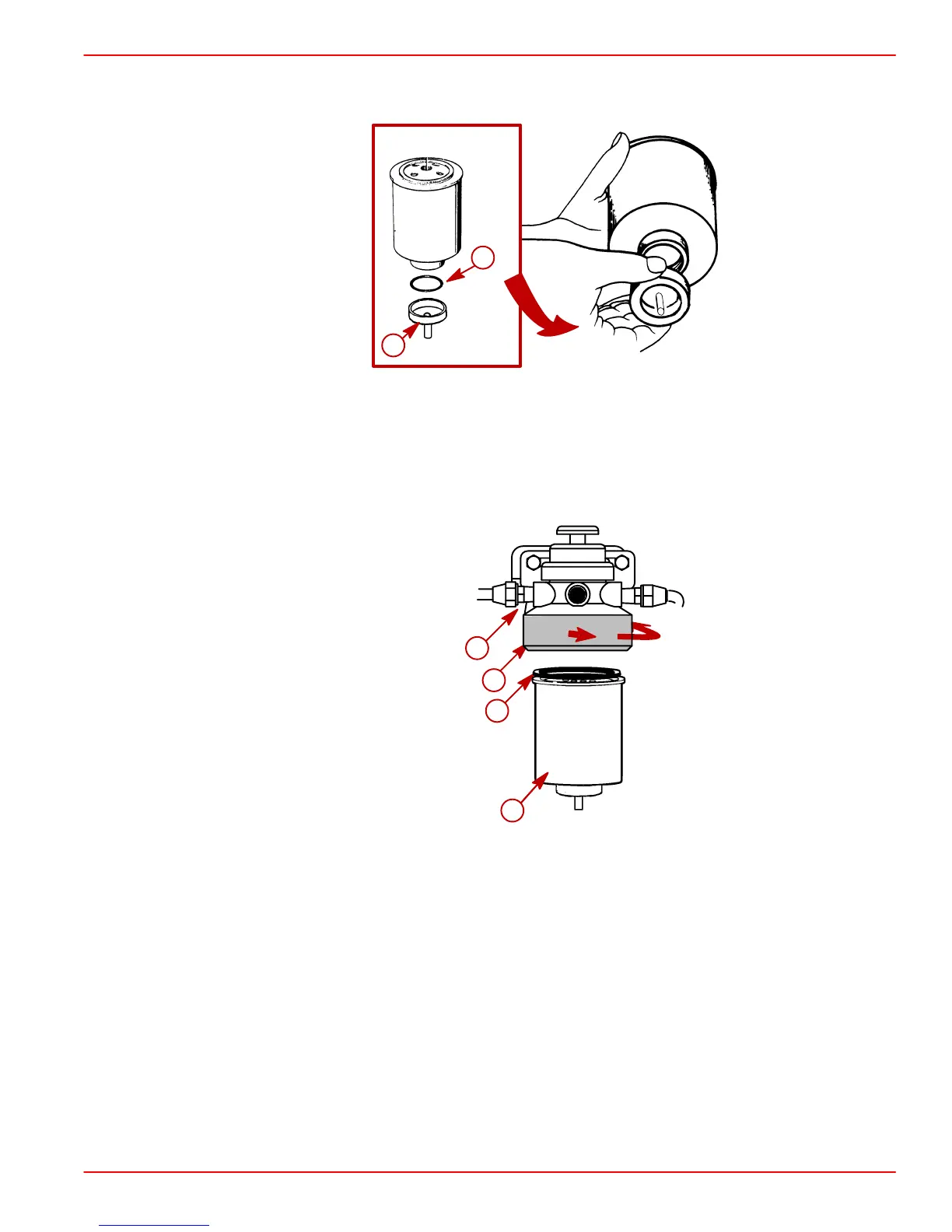

INSTALLATION

1. Install O-ring and drain cap on new filter.

70160

a-O-ring Seal

b-Drain Cap

2. Lubricate seal with clean engine oil.

3. Align filter to bracket. Twist locking ring by hand to secure filter to bracket. Do NOT use

a filter wrench.

74731

a-Filter Header

b-Locking Ring

c-Seal

d-Fuel Filter

4. Fill fuel filter as previously outlined.
