SEAWATER COOLING SYSTEM

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 6A-13

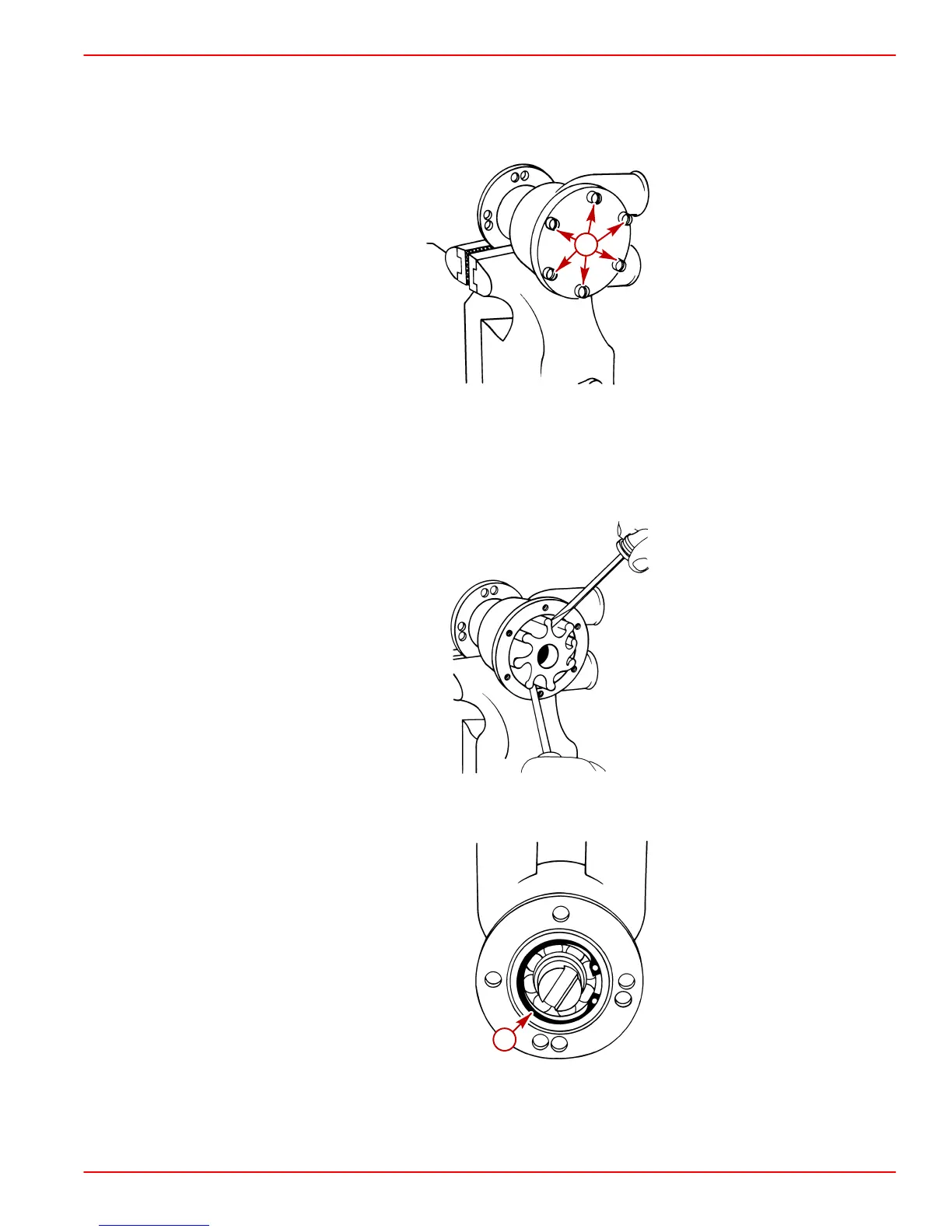

Disassembly

1. Clamp the pump in a vise.

2. Remove the 6 cover screws.

70625

Typical

a-Cover Screws

3. Using 2 screwdrivers, carefully remove the impeller.

70626

4. On D2.8L D-Tronic pumps: Remove internal snap ring from pump body.

70628

a-Snap Ring
