Mercury D4.2L D-Tronic

SEAWATER COOLING SYSTEM SERVICE MANUAL NUMBER 22
Page 6A-14 90-860074--1 FEBRUARY 2002

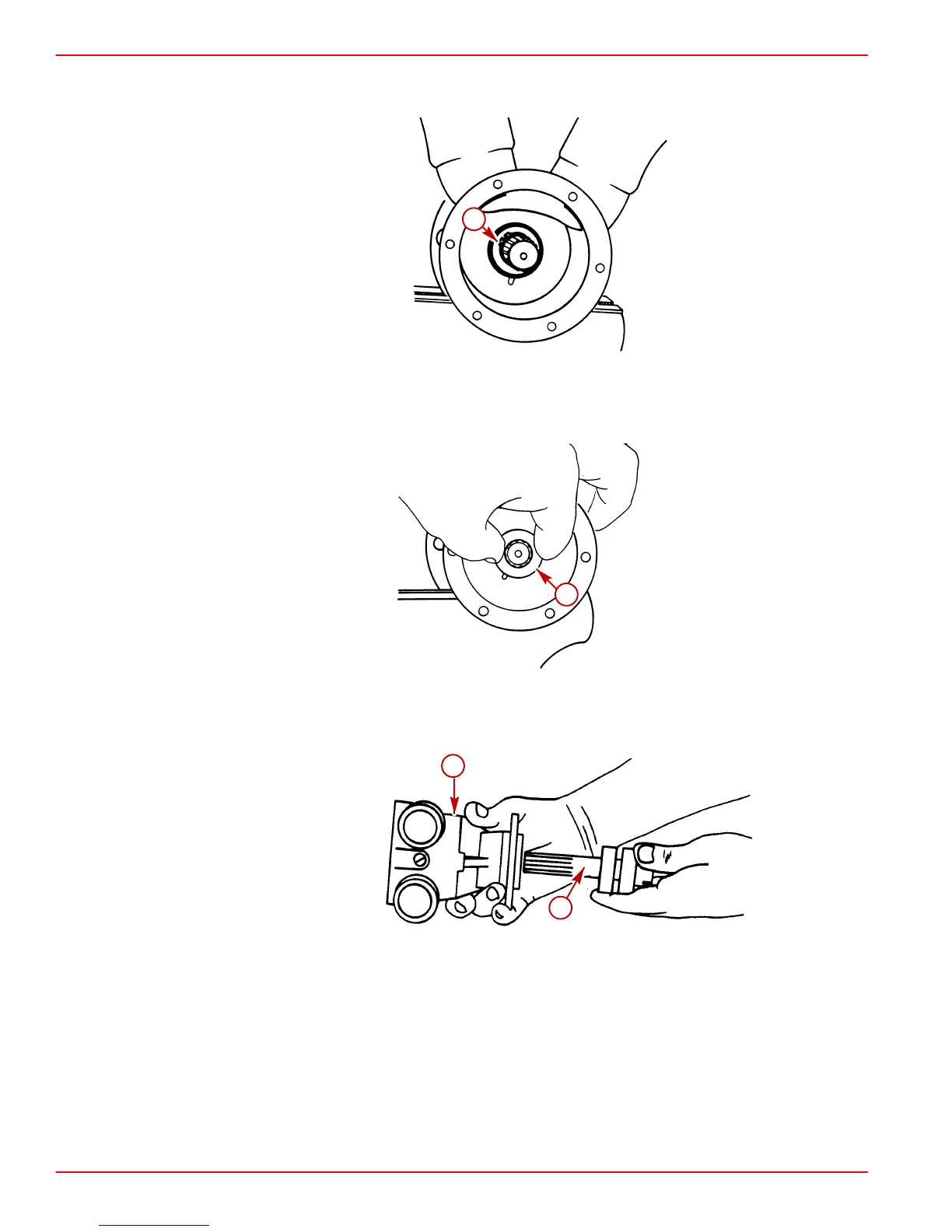

5. On D4.2L D-Tronic pumps:
a. Remove external retaining ring from pump shaft.
70694
a
a-External Retaining Ring
b. Remove spacer from shaft.
70695
a
a-Spacer
6. Using a soft faced hammer, tap shaft and bearing assembly out of pump housing.
70638
b
a
Typical
a-Shaft and Bearing Assembly
b-Pump Housing
