INTERCOOLER

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 7A-9

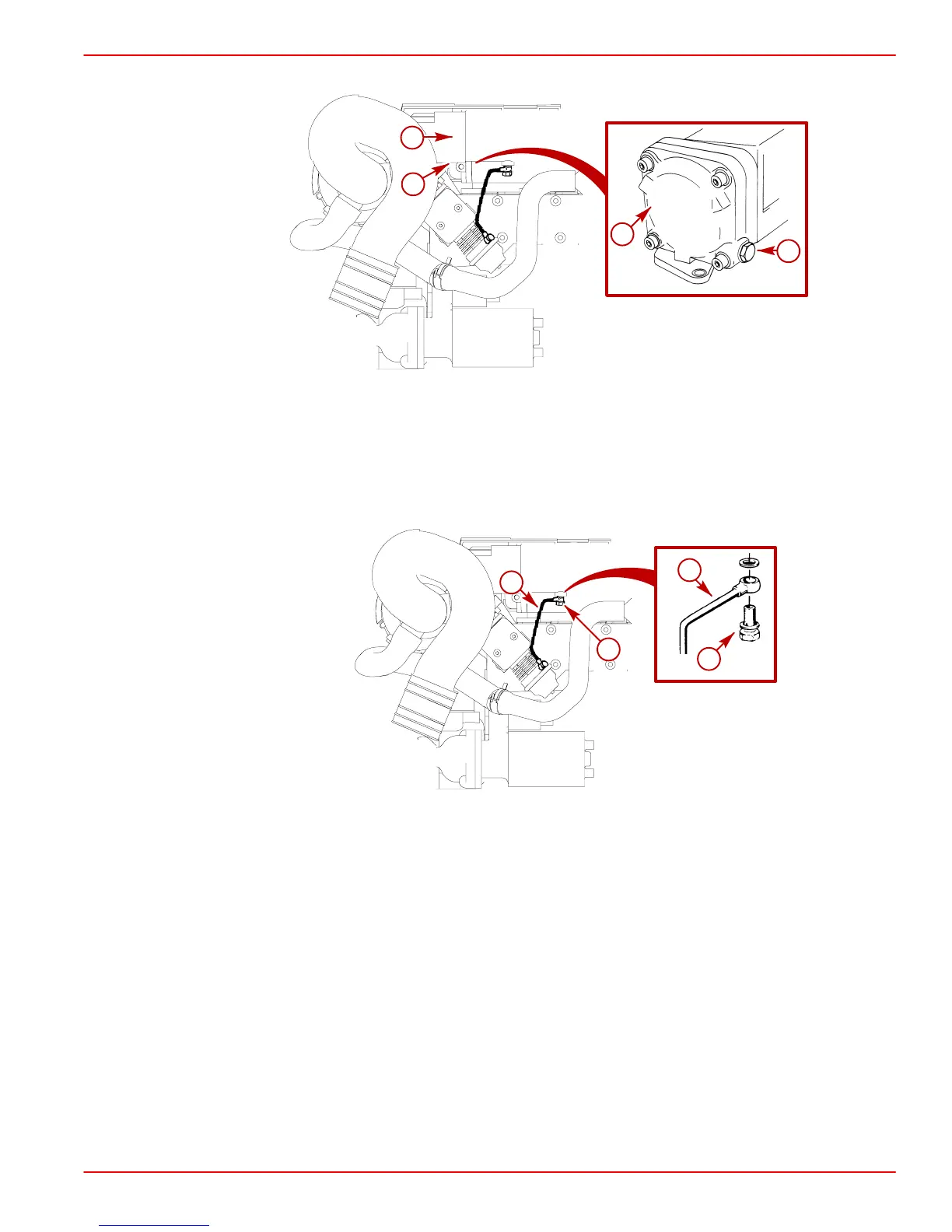

18. Remove drain plug and sealing washer from rear cover of intercooler.

75621

70912

Sterndrive Shown (Inboard Similar)

a-Intercooler

b-Rear Cover

c-Drain Plug With Sealing Washer

19. Remove hollow bolt and sealing washers from wastegate valve pressure line.

70916

73940

Sterndrive Shown (Inboard Similar)

a-Wastegate Valve Pressure Line

b-Hollow Bolt With Sealing Washers
