INTERCOOLER SERVICE MANUAL NUMBER 22

Page 7A-8 90-860074--1 FEBRUARY 2002

Intercooler

Removal

14. Remove engine cover.

15. Drain the seawater system.

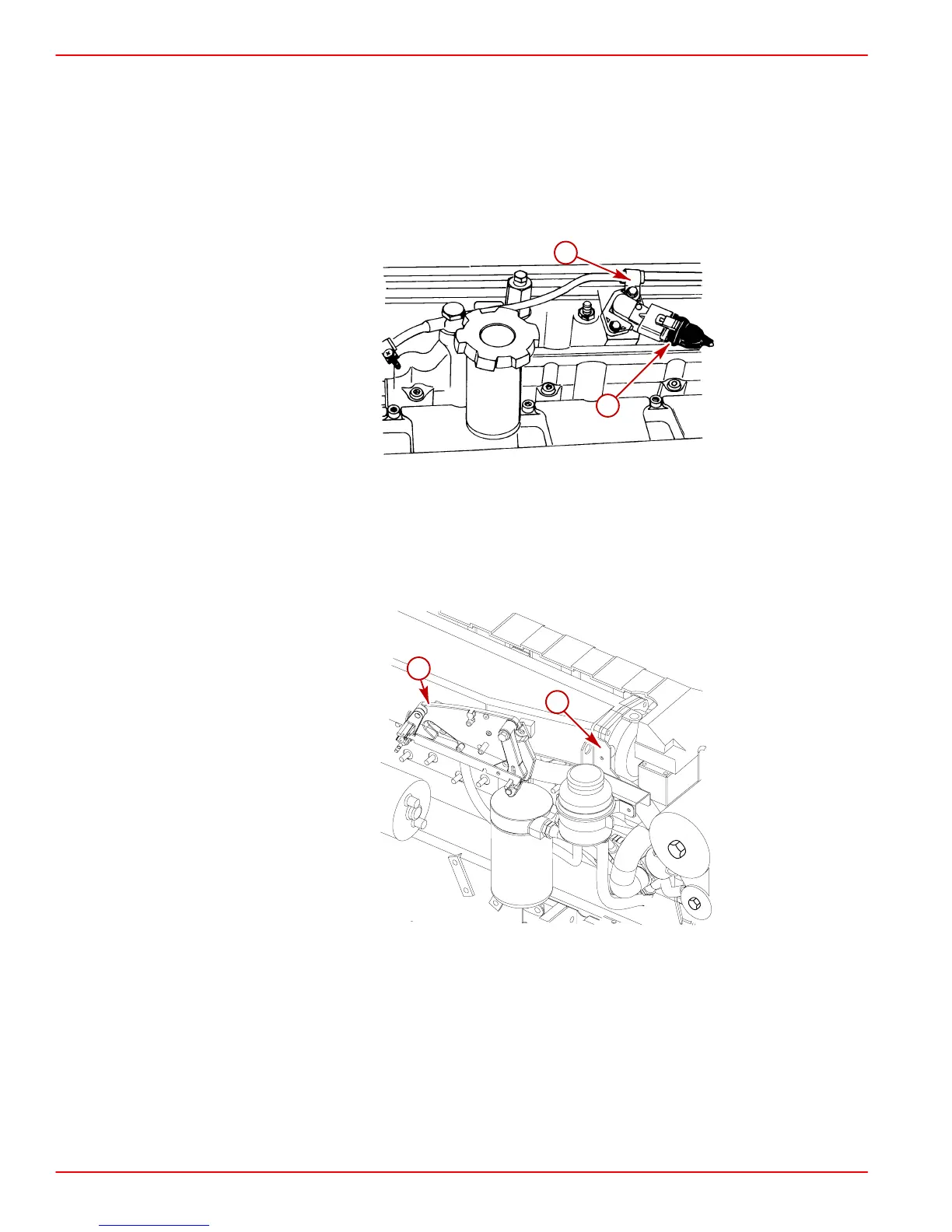

16. Disconnect MAP/IAT sensor. Remove J-clamp for coolant vent hose.

75582

a-MAP/IAT Sensor Connector

b-J-clamp

17. On Sterndrive Engines:

a. Remove sterndrive shift bracket.

b. Remove engine lifting eye bracket from intercooler end cover.

75300

Sterndrive (MCM ) Engine

a-Shift Bracket

b-Engine Lifting Eye Bracket
