TURBOCHARGER SERVICE MANUAL NUMBER 22
Page 7C-22 90-860074--1 FEBRUARY 2002

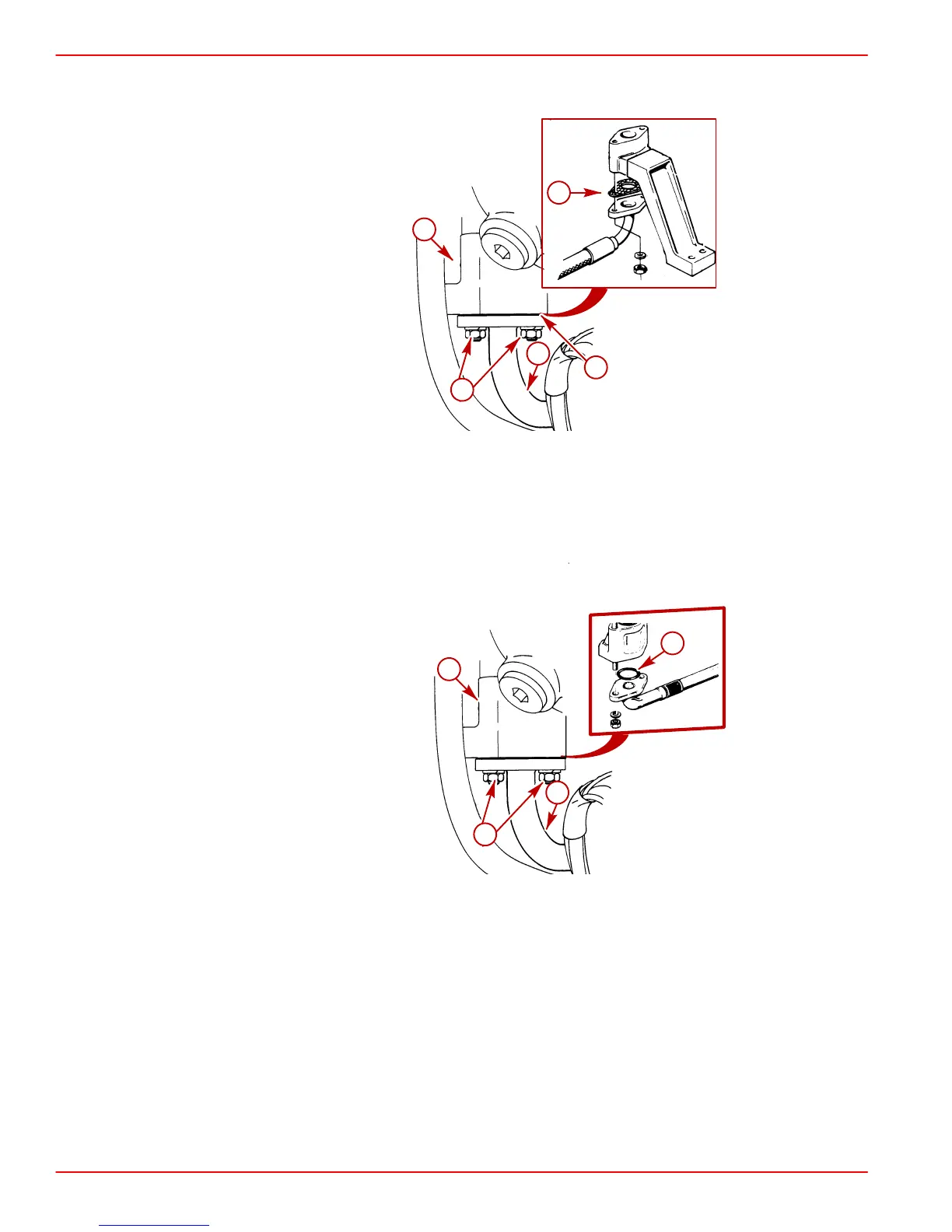

4. On Engines With Gasket Seal: Remove hex nuts from spacer (previously installed
finger-tight). Using a new gasket, install drain pipe. Tighten hex nuts securely.
71000
c
c
d
b
a
a-Spacer
b-Hex Nuts
c-Gasket
d-Oil Drain Pipe
5. On Engines With O-ring Seal: Remove hex nuts from spacer (previously installed
finger-tight). Using a new O-ring positioned in spacer groove, install drain pipe. Tighten
hex nuts with lockwashers securely.
70990
c
d
b
a
a-Spacer
b-Hex Nuts
c-O-ring
d-Oil Drain Pipe
