TURBOCHARGER SERVICE MANUAL NUMBER 22
Page 7C-26 90-860074--1 FEBRUARY 2002
15. Install hex nuts and washers on wastegate exhaust pipe. Tighten fasteners securely and
wrap with heat shield blanket. Fasten spring to retain blanket.
71001
73941
73632
a
c
e
e
c
b
d
c
d
f
b
g
h

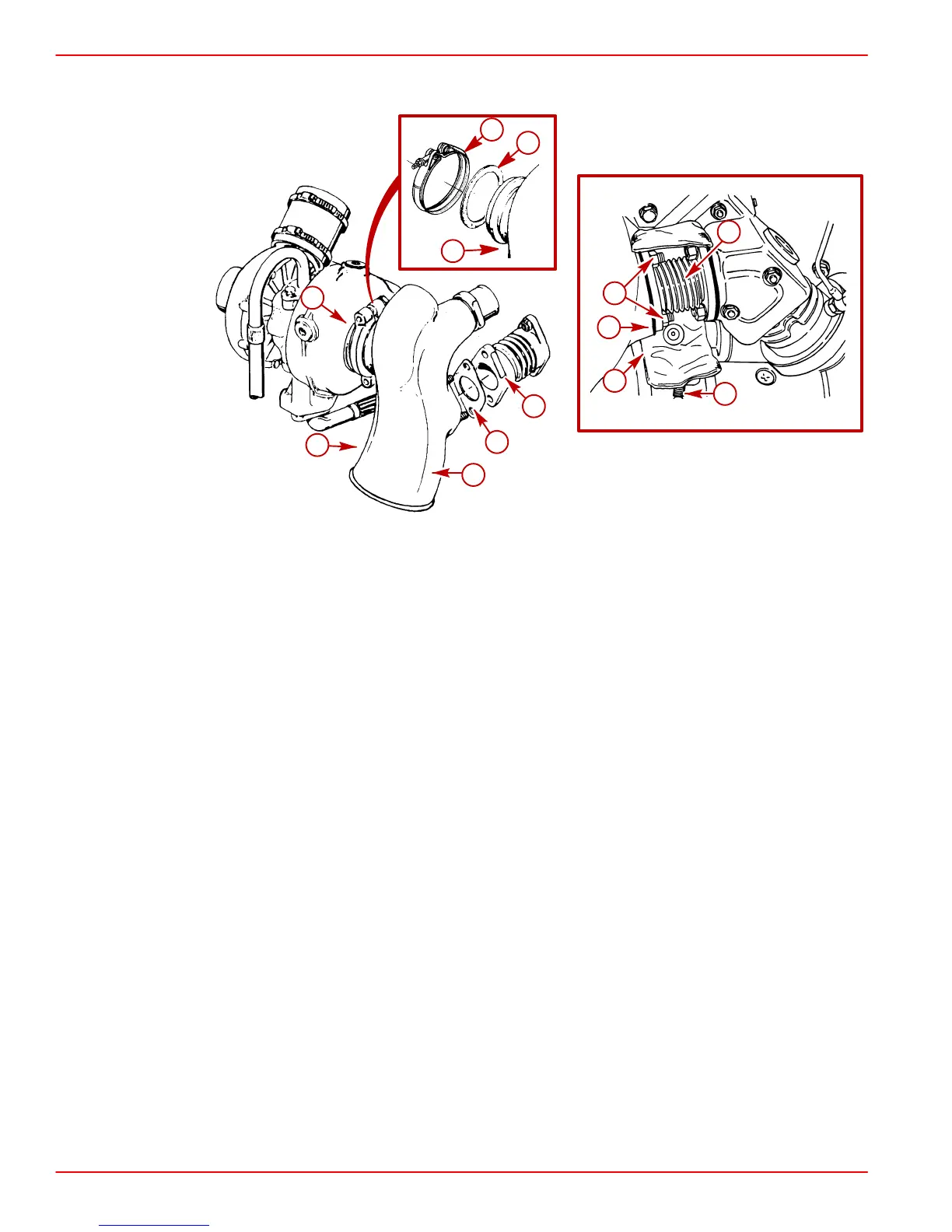

Typical Without Riser
a-Gasket, Exhaust Elbow
b-Gasket, Wastegate Exhaust Pipe To Elbow, Or Riser
c-Exhaust Elbow
d-Wastegate Exhaust Pipe
e-Clamp, Exhaust Elbow
f-Hex Nut
g-Heat Shield Blanket
h-Spring
To Next Page
