TURBOCHARGER
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 7C-25

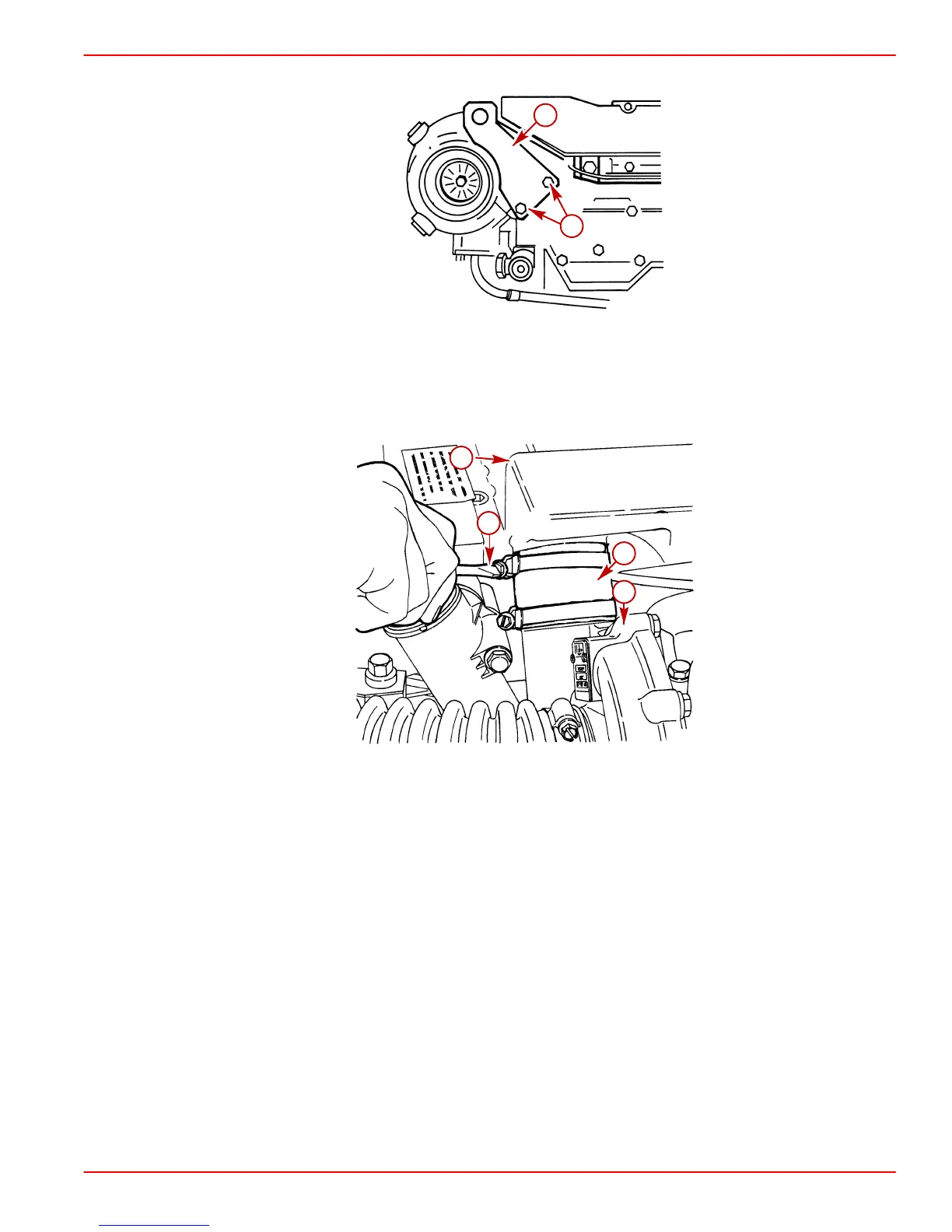

12. Install lifting eye bracket as shown. Tighten screws securely.
70988
a
b
Typical
a-Bracket, Lifting Eye
b-Screws With Washers
13. As shown, tighten turbocharger-to-intake duct hose clamp securely.
70918
a
c
b
d
Typical
a-Hose
b-Hose Clamp
c-Turbocharger
d-Intake Duct
14. Install exhaust elbow, or riser, using new gaskets on exhaust elbow and wastegate
exhaust pipe flange as shown. Align studs on elbow, or riser, with holes in wastegate
exhaust pipe. Simultaneously, align with exhaust pipe. Tighten exhaust elbow clamp
securely.
To Next Page
