ZF / HURTH TRASNSMISSIONS SERVICE MANUAL NUMBER 22
Page 8A-20 90-860074--1 FEBRUARY 2002
72956
71211
e
b
b
d
a
c
g
h

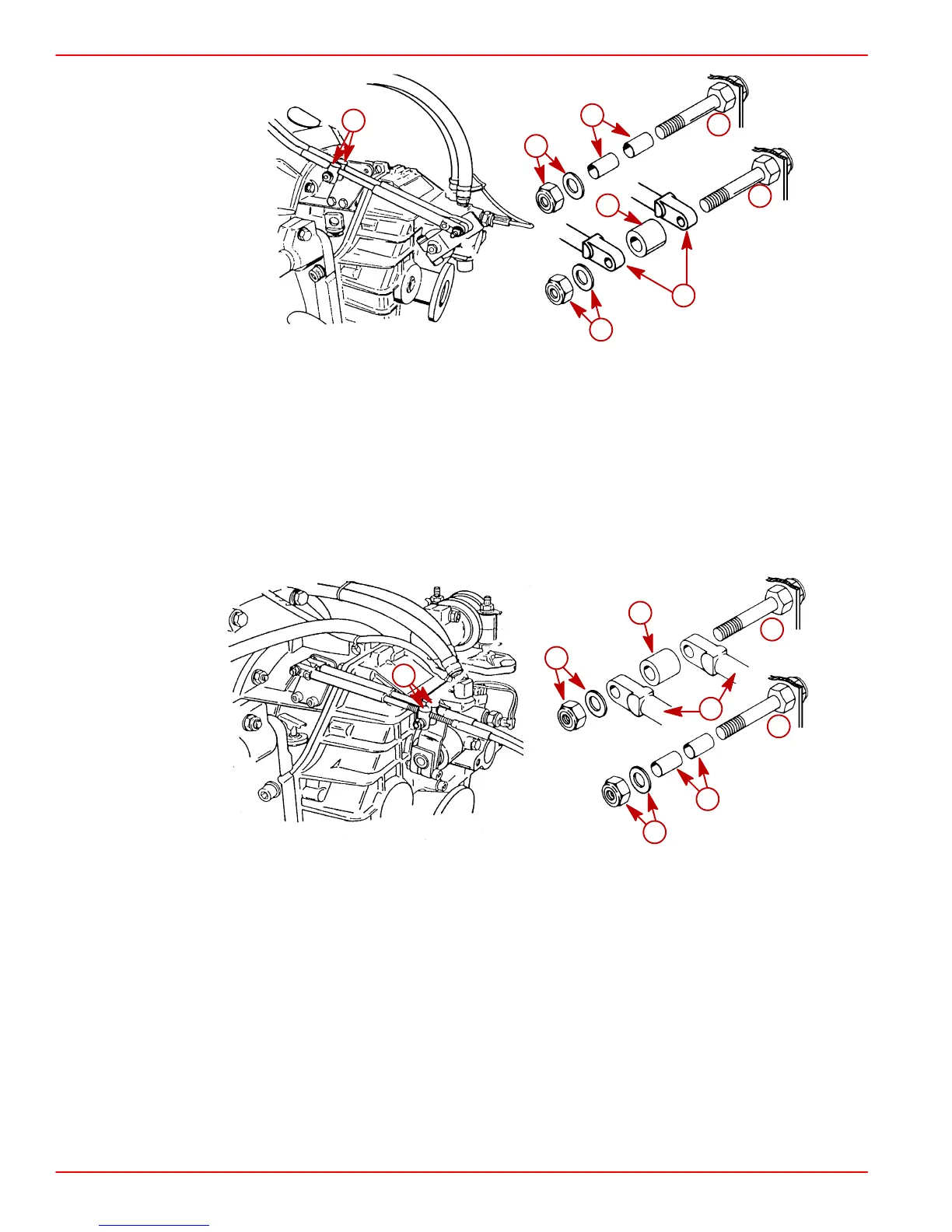

Typical Dual Cable Installation- Forward Approach
a-Cable End Guide
a-Cable End Guide
b-Locknut And Washer
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Spacers (Fits Over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
72960
50073
e
b
d
a
b
d
g
h
Typical Dual Cable Installation- Rear Approach
a-Cable End Guide
b-Locknut And Washer
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Spacers (Fits Over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
