ZF / HURTH TRANSMISSIONS
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 8A-19
NOTE: To change cable approach direction on single or dual station installations, only the
spacer/bushings have to be switched to the opposite stud. The studs are identical.
72955
71210
e
b
c
d
b
a
f
g
h

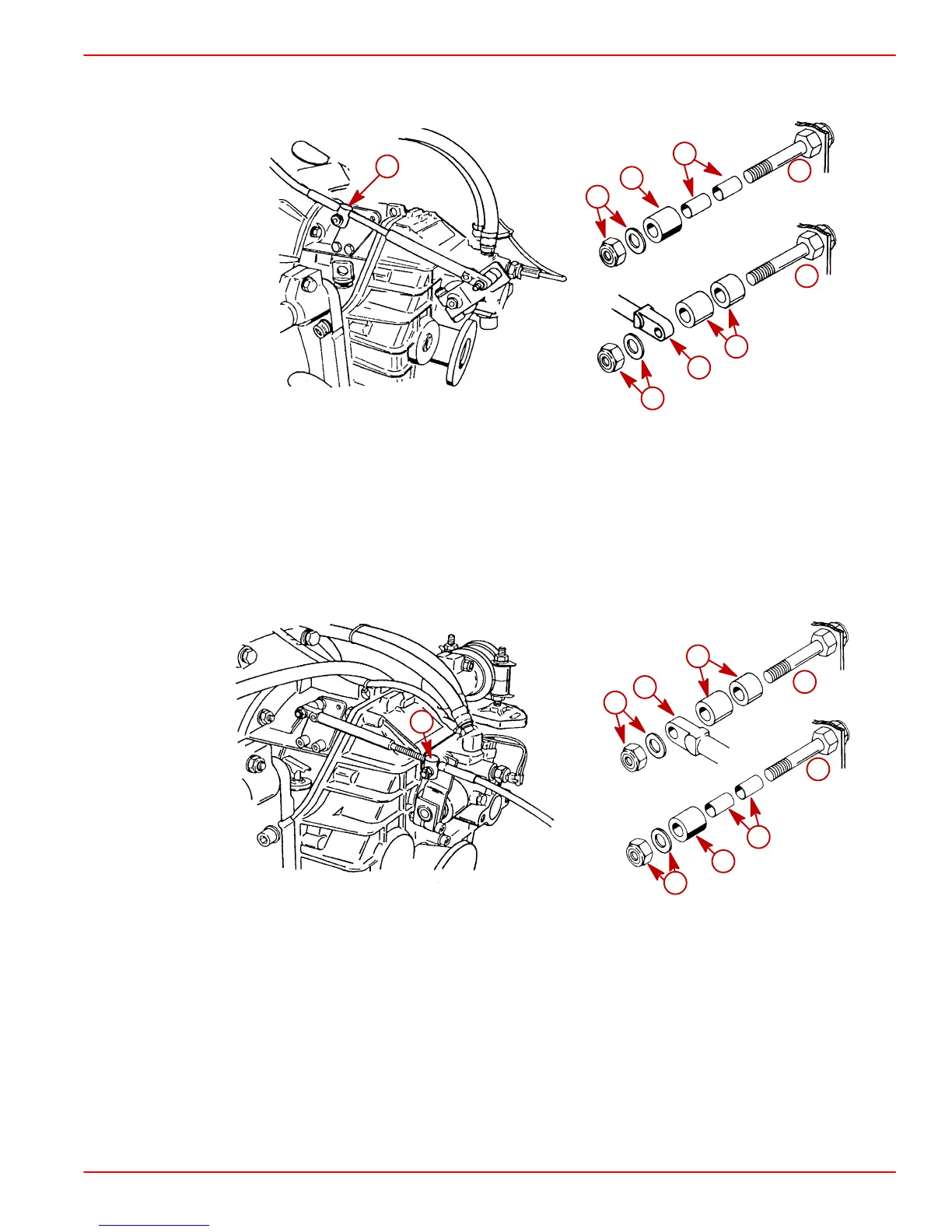

Typical Single Cable Installation - Forward Approach
a-Cable End Guide
b-Locknut and Washer
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Spacers (Fits Over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
72957
50229
a
b
f
b
c
d
e
g
h
Typical Single Cable Installation - Rear Approach
a-Cable End Guide
b-Locknut And Washer
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Cable Barrel Stud
g-Cable End Guide Stud
