Micom P631 - Page 211

62Z5304A
CTS:
End a faulty
460 471
CTS:
End b faulty
CTS:
Reset latch. EXT
[ 036 158 ]
CTS:
Reset latch. USER
[ 036 157 ]
1
0
1 100 ms
1: execute
0: don't execute
MAIN:
General reset USER
[ 003 002 ]
t 0
CTS:
t(Latch) PSx
[ * ]
1
1
1
S
R
t 0
CTS:
t(Alarm) PSx
[ * ]
CTS:
Operated (updating)
[ 036 099 ]
CTS:
Operated (latched)
[ 036 202 ]
CTS:
Idiff>(CTS)active
[ 036 203 ]
CTS:
Reset
Parameter
set 1
set 2
set 3
set 4
CTS:
t(Alarm) PSx
001 126
001 127
001 128
001 129
CTS:
t(Latch) PSx
001 130
001 131
001 132
001 133
1 500 ms
*
1: execute
≥1
≥1
≥1
460 450
460 472

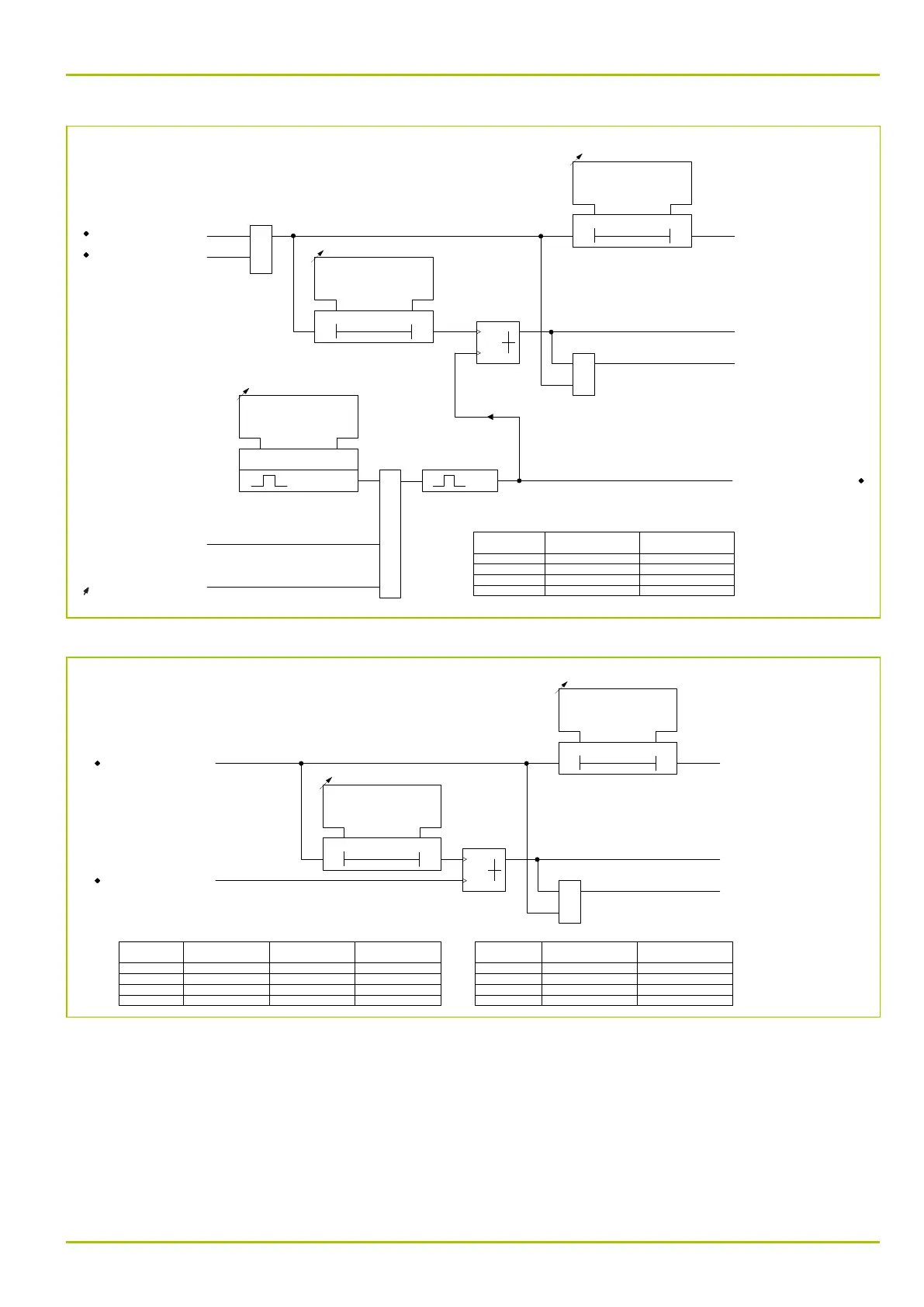

Fig. 3-121: CTS overreaching signals.
64Z5305B
CTS:
End a faulty
460 471
t 0
CTS:
t(Latch) PSx
[ * ]
1
1
1
S
R
t 0
CTS:
t(Alarm) PSx
[ * ]
CTS:
Alarm end a (updat.)
[ ** ]
CTS:
Reset
460 450
Parameter
set 1
set 2
set 3
set 4
CTS:
t(Alarm) PSx
001 126
001 127
001 128
001 129
CTS:
t(Latch) PSx
001 130
001 131
001 132
001 133
CTS:
Alarm end a (latch.)
[ ** ]
CTS:
Alarm end a
[ ** ]
End a
End b
End c
End d
CTS:
Alarm end a (updat.)
036 081
CTS:
Alarm end a (latch.)
036 204
CTS:
Alarm end a
036 205
036 082 036 206 036 207
036 083 036 208 036 209
036 084 036 210 036 211
** *
≥1
Fig. 3-122: CTS signals per end.
