Micom P631 - Trip Commands; Starting Trigger

64Z1105B
C
t
CBF_1:
Not ready
[ 040 025 ]
CBF_1:
Startup 3p
[ 038 211 ]
CBF_1:
Trip signal t1
[ 038 215 ]
CBF_1:
Trip signal t2
[ 038 219 ]
CBF_1:
CB faulty EXT
[ 038 234 ]
CBF_1:
t1 3p
[ 022 165 ]
C
CBF_1:
t2
[ 022 166 ]
MAIN:
CB failure
[ 036 017 ]
&
0
t 0

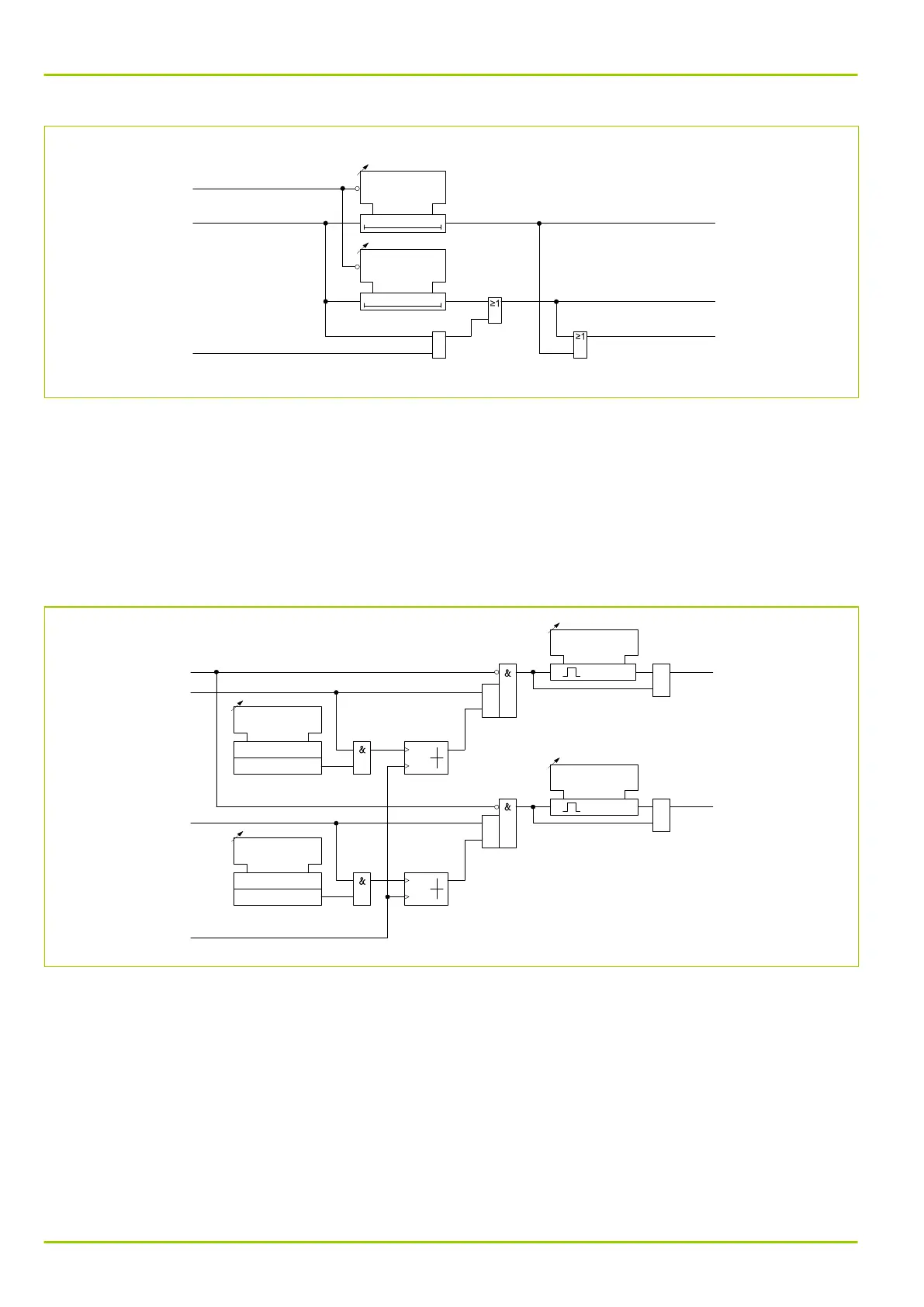

Fig. 3-131: Timer stages of the circuit breaker failure protection
3.27.10 Trip Commands
While trip signals issued by the CB failure protection have no timer stages
available the user can set minimum time delays for trip commands.
By appropriate setting it can further be determined that trip commands, issued
by the CB failure protection, will operate in latching mode. The respective trip
command, set to latch mode, will remain active until reset by operating
parameters or through an appropriately configured binary signal input.
CBF_1:
Trip signal t1
[ 038 215 ]
CBF_1:
Trip command t1
[ 038 220 ]
MAIN:
Latch. trip c. reset
[ 040 139 ]
CBF_1:
Min.dur. trip cmd.t1
[ 022 167 ]
1
1
1
S
R
MAIN:
Trip cmd. blocked
[ 021 013 ]
CBF_1:
Latching trip cmd.t1
[ 022 169 ]
0
1
0: No
1: Yes
CBF_1:
Trip signal t2
[ 038 219 ]
CBF_1:
Trip command t2
[ 038 224 ]
t 0
CBF_1:
Min.dur. trip cmd.t2
[ 022 168 ]
1
1
1
S
R
CBF_1:
Latching trip cmd.t2
[ 022 170 ]
0
1
0: No
1: Yes
64Z1106B
≥
1
≥1
≥1
≥
1
t 0
Fig. 3-132: Trip commands, issued by the CB failure protection
3.27.11 Starting Trigger
Should a downstream CB fail, a trip can be issued by the CB failure protection
function. In this case the dedicated general interrogation is checked as a
condition so as to guarantee increased security against overreaction.
The signal CBF_1: Starting will be issued when the signal CBF_1: Starting
trig. EXT is presented to an appropriately configured binary signal input and a
general starting is present. The signal CBF_1: Trip signal will be issued after
timer stage CBF_1: Delay/starting trig. has elapsed.
P631
3 Operation
3-164 P631/EN M/R-11-C // P631-310-650
