Micom P631 - Measured Data Output (Function Group MEASO); General Settings

3.10 Measured Data Output (Function Group MEASO)
Measurands made available by the P631 can be provided in BCD (binary coded
decimal) form through output relays or in analog form as direct current output.
Output as direct current can only occur if the P631 is equipped with analog
module Y. BCD output is always possible, whether the P631 is equipped with
analog module Y or not.
3.10.1 General Settings
3.10.1.1 Disabling or Enabling the Measured Data Output Function
The Measured Data Output function can be disabled or enabled via setting
parameters.
S8Z52H1A
MEASI:
General enable USER
[ 011 100 ]
MEASI:
Enabled
[ 035 008 ]
1: Yes
0
1
0: No

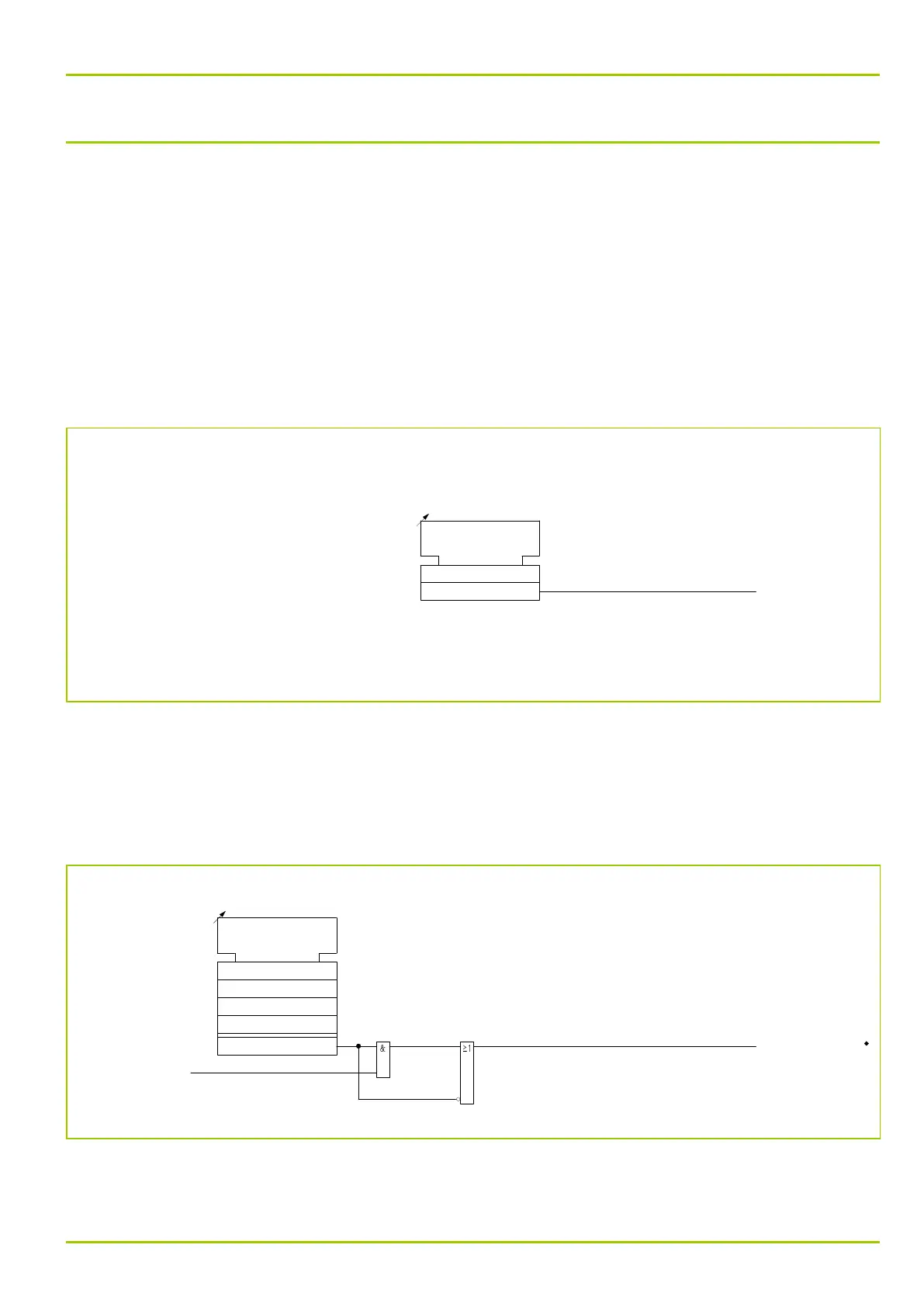

Fig. 3-31: Disabling or enabling the measured data output function.
3.10.1.2 Enabling Measured Data Output
The measured data output can be enabled through a binary signal input,
provided that the function MEASO: Outp. enabled EXT has been configured.
If the function MEASO: Outp. enabled EXT has not been configured to a
binary signal input, then the measured data output is always enabled.
S8Z52H5A
INP:
Fct. assignm. U xxx
[ xxx xxx ]
Address
U x1
U x2
U x3
U xx
036 085
MEASO:
Enable
304 600
MEASO:
Outp. enabled EXT
[ 036 085 ]
Fig. 3-32: Enabling measured data output.
3 Operation
P631
P631/EN M/R-11-C // P631-310-650 3-47
