0: No
0
1
LOGIC:
Set 1 USER
[ 034 030 ]
1: Yes
LOGIC:
1 has been set
[ 034 067 ]
LOGIC:
1 set externally
[ 034 075 ]
INP:
Fct. assignm. U xxx
[ xxx xxx ]
Address 036 051
U x1
U x2
U x3
U xx
Address 036 059
LOGIC:
Set 1 EXT
[ 034 051 ]
LOGIC:
Reset 1 EXT
[ 034 059 ]
D5Z52FAB

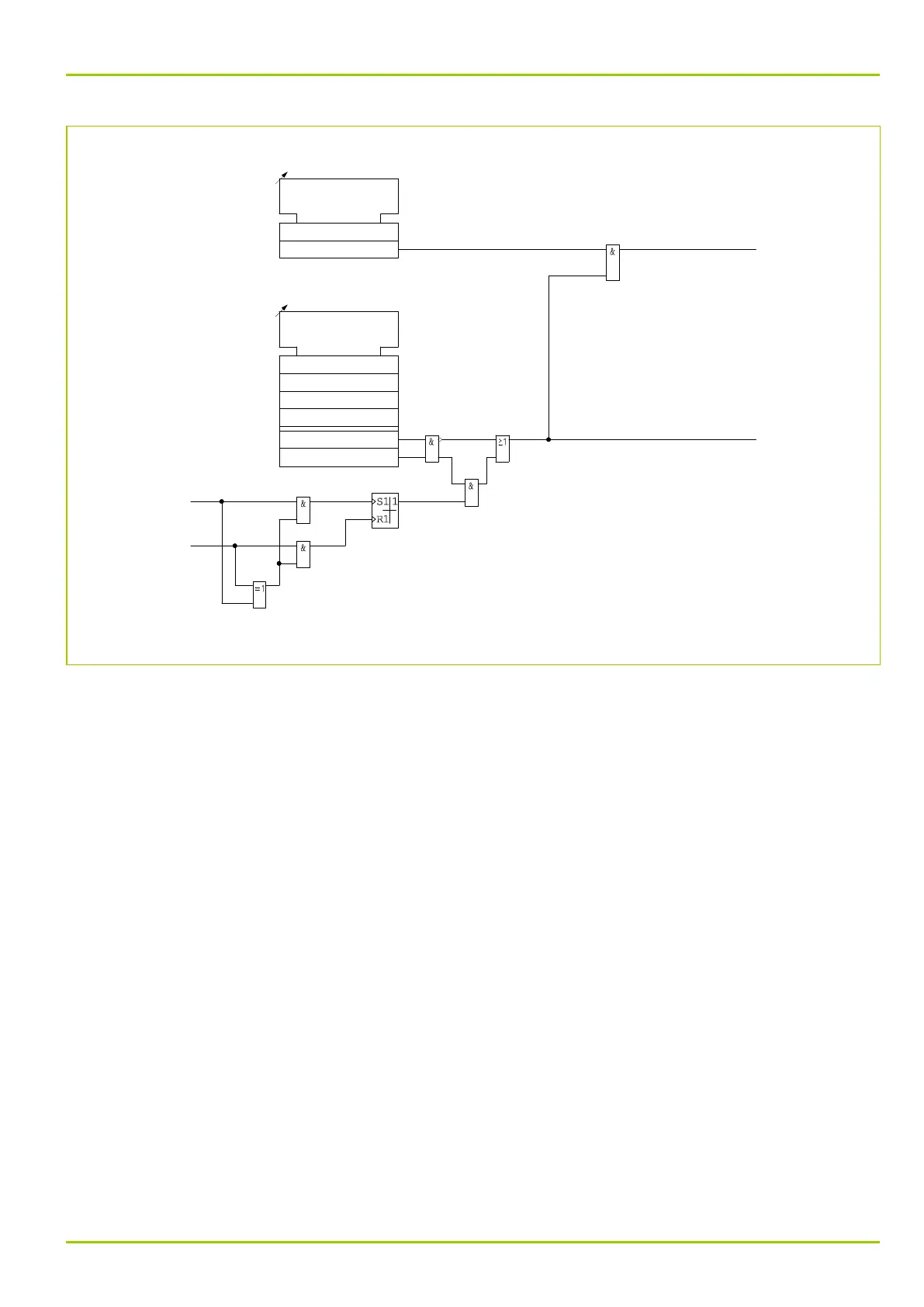

Fig. 3-140: Control of logic operations via setting parameters or stored input signals. (The logic does not apply to
LOG_2.)
The LOGIC: Trigger 1 signal is a “triggering function” that causes a 100 ms
pulse to be issued.
3 Operation
P631
P631/EN M/R-11-C // P631-310-650 3-173
