Micom P631 - Page 233

D5Z50CAA
LOGIC:
Output n
LOGIC:
Output n (t)
LOGIC:
Output n
LOGIC:
Output n (t)
LOGIC:
Output n
LOGIC:
Output n (t)
t2 = 0s
t1 = 0s
t1, t2 > 0s
t1
t1
t1 t1
t2 t2
t2
t2 t2
t2
t2
Retrigger pulse
Retrigger pulse

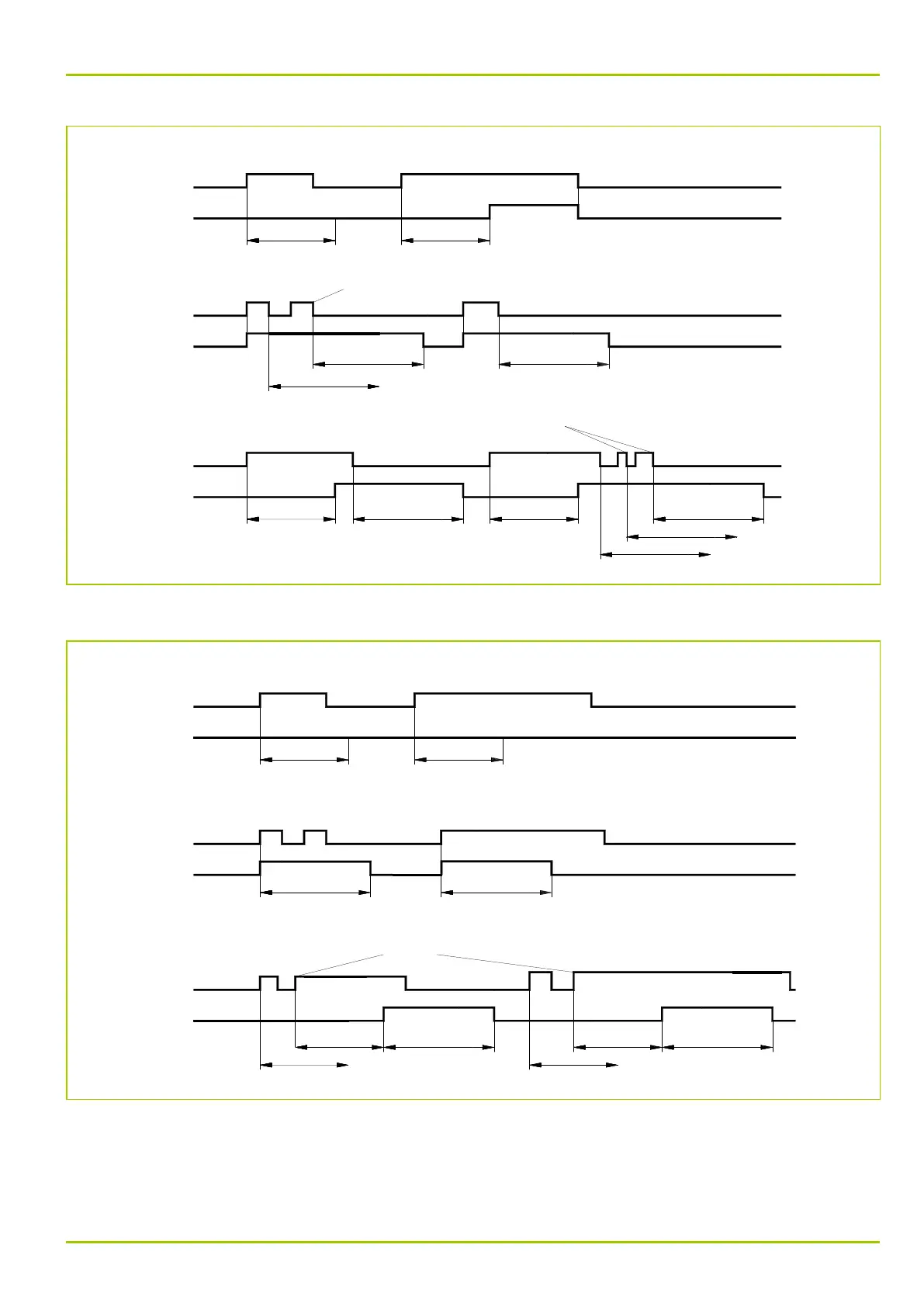

Fig. 3-145: Operating mode 3: Pickup/reset delay, retriggerable (Op./rel.delay,retrig). (This diagram is also valid for
LOG_2, if the signal parameters are replaced by the corresponding ones from LOG_2 .)
D5Z50CBA
LOGIC:
Output n
LOGIC:
Output n (t)
LOGIC:
Output n
LOGIC:
Output n (t)
LOGIC:
Output n
LOGIC:
Output n (t)
t2 = 0s
t1 = 0s
t1, t2 > 0s
t1 t1
Retrigger pulse
t1
t1 t1
t1
t2 t2
t2 t2
Fig. 3-146: Operating mode 4: Pulse, delayed pickup, retriggerable (Op.del./puls.dur.,rt). (This diagram is also valid
for LOG_2, if the signal parameters are replaced by the corresponding ones from LOG_2 .)
