Micom P631 - Page 235

D5Z52FBA
Signal 1 EXT
[ AAA AAA ]
INP:
Fct. assignm. U xxx
[ xxx xxx ]
Address BBB BBB
Address BBB BBB
Address AAA AAA
Address AAA AAA
INP:
Fct. assignm. U xxx
[ xxx xxx ]
LOGIC:
Sig.assig. outp. 1
[ 044 000 ]
LOGIC:
Sig.assig.outp. 1(t)
[ 044 001 ]
-Uxxx
-Uxxx
Signal 1 EXT
[ AAA AAA ]
Signal 2 EXT
[ BBB BBB ]
Signal 3 EXT
[ CCC CCC ]
Signal n EXT
[ NNN NNN ]
LOGIC:
Output 1
[ 042 032 ]
LOGIC:
Output 1 (t)
[ 042 033 ]
Signal 2 EXT
[ BBB BBB ]

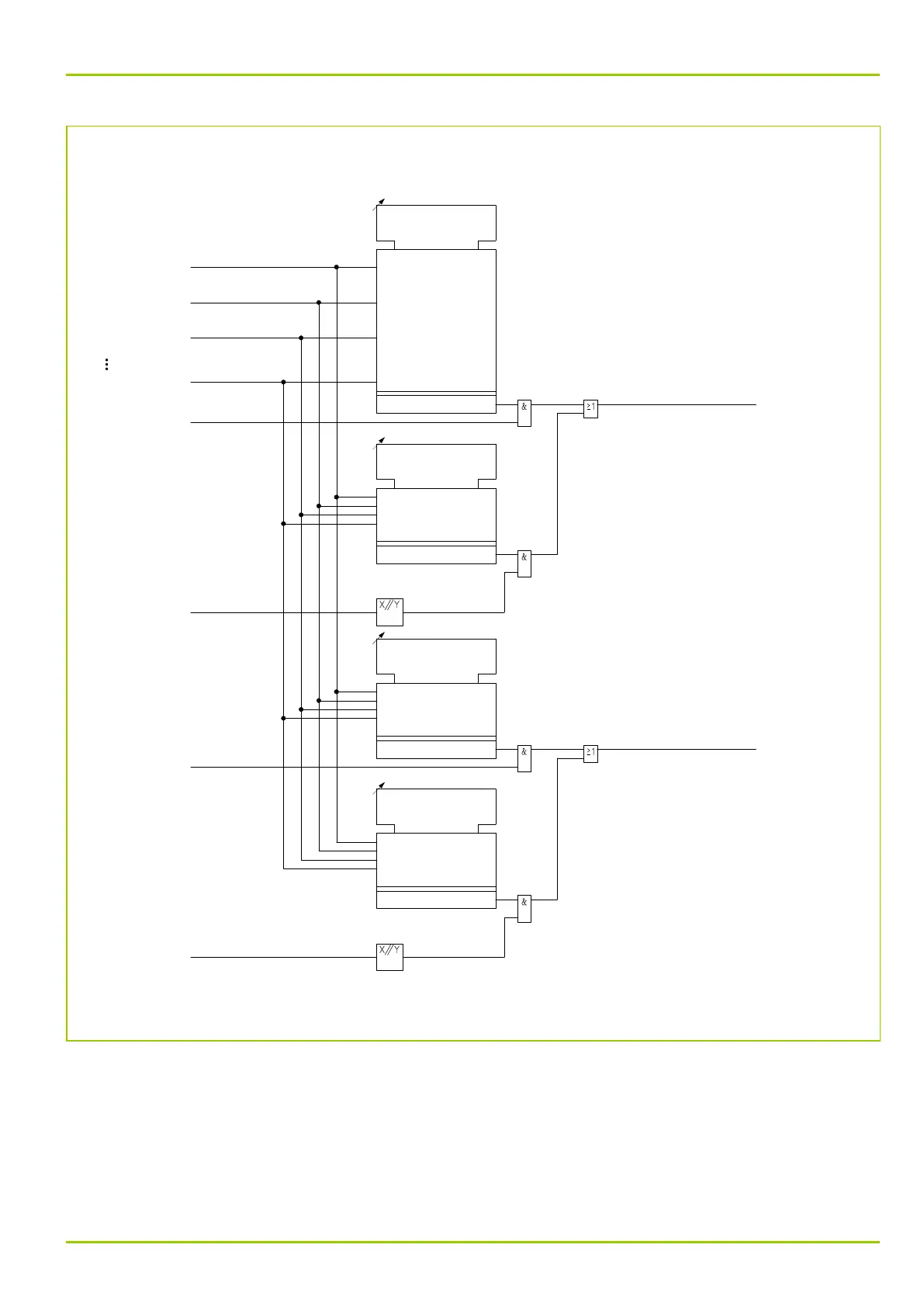

Fig. 3-148: Signal assignment to outputs of Boolean equations. (This diagram is also valid for LOG_2, if the
parameters from LOGIC are replaced by the corresponding ones from LOG_2 .)
3 Operation
P631
P631/EN M/R-11-C // P631-310-650 3-179
