connected with a wire jumper. An external resistor is therefore not necessary.

The second resistor must be connected externally to the device (resistor order

number see Chapter “Accessories and Spare Parts”).

19Z6480A

First participant

connect. to the line

(e.g. the master)

Last participant

connect. to the line

Device with half-

duplex interface

P631

XXXX

D1[T]

D2[R]

D1[T]

D2[R]

200 ... 220 Ω

-X10

D1[T]D2[R] D1[T]D2[R]

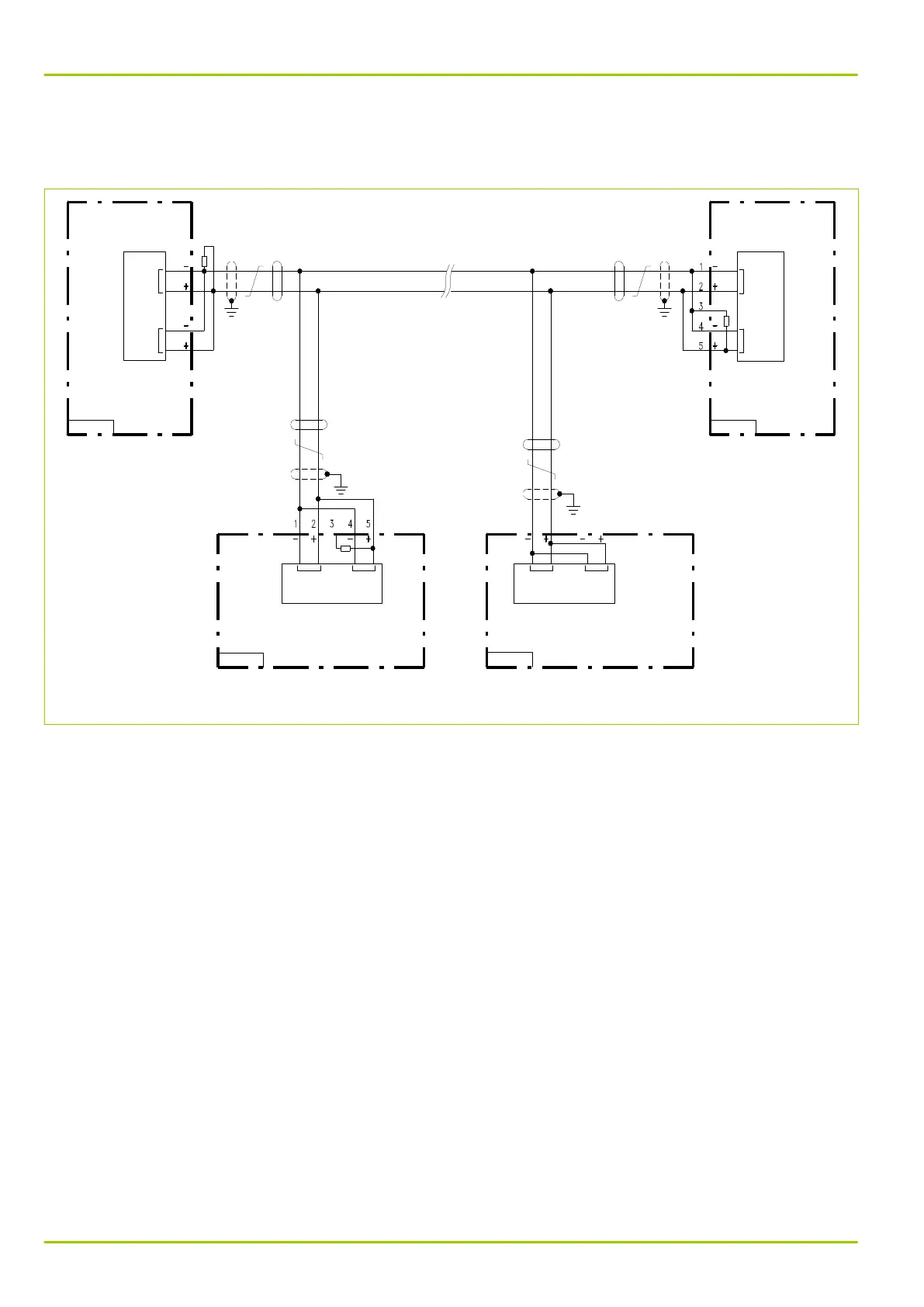

Fig. 5-11: 2-wire data link.

P631

5 Installation and Connection

5-16 P631/EN M/R-11-C // P631-310-650
