3.4.3.1 COMM2 – Checking Spontaneous Signals
It is possible to select a signal for test purposes. The transmission of this signal to
the control station as ‘sig. start‘ or ‘sig. end‘ can then be triggered via the local
control panel.
48Z50FLA
COMM2:
Test spont.sig. end
[ 103 186 ]
Selected signals
Signal 1
Signal 2
Signal 3
Signal n
1: execute
0: don't execute
0
1
1: execute
0: don't execute
0
1
COMM2:
Test spont.sig.start
[ 103 184 ]
COMM2:
Sel.spontan.sig.test
[ 103 180 ]
COMM2:
Spontan. sig. start
[ --- --- ]
COMM2:
Spontan. sig. end
[ --- --- ]

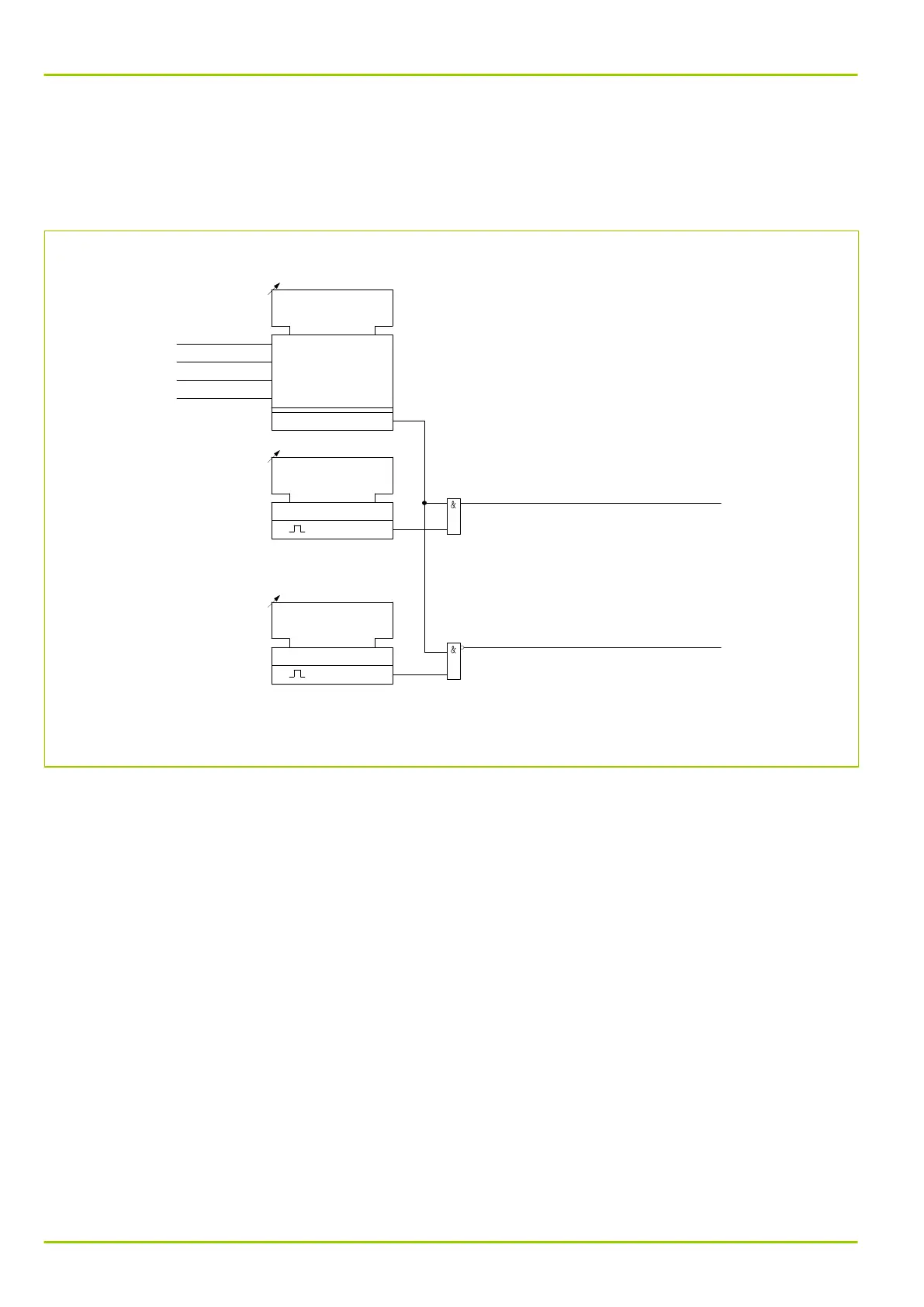

Fig. 3-15: COMM2 – Checking spontaneous signals.
