The virtual key "Unmap" may be used to remove the link of a binary signal input
to an external data point. In such a case all entries for this binary signal input are
deleted.
3.4.4.2.4 Uniqueness of Control within a System
If with a system application it must be ensured that only one control command at
a time is being processed system wide (“uniqueness”) then interlocking of
secondary devices among themselves is setup with GOOSE. The P631 sets the
status information Control/LLN0.ST.OrdRun.stVal. when it has received a control
command. This information – stored in a dataset – is distributed in the system by
GOOSE and is therefore available to all other devices as an interlocking
condition. The state information is reset and accordingly signaled after
termination of the command sequence.
The P631 is capable to monitor the command status of up to 32 further devices.
With the IED Configurator OrdRunGGIO1.ind1.stVal to OrdRunGGIO1.ind32.stVal
are configured in a similar way to the other GOOSE inputs. A shuttling to the
interlocking equations is not necessary as their consideration within command
checking is automatically enabled when the first binary signal input is configured.
During a signaling receipt phase command effecting will be rejected.
S1 Studio
System/LLN0/gcb01 ... 08
IED Configurator
System/LLN0/Datasetx
Ind1.stVal ... Ind32.stVal
System/OrdRunGGIO1
Control/LLN0.ST.OrdRun.stVal
»
Device A
»
Device B
19Z7004A
IED Configurator
IED Configurator
IED Configurator
MCL

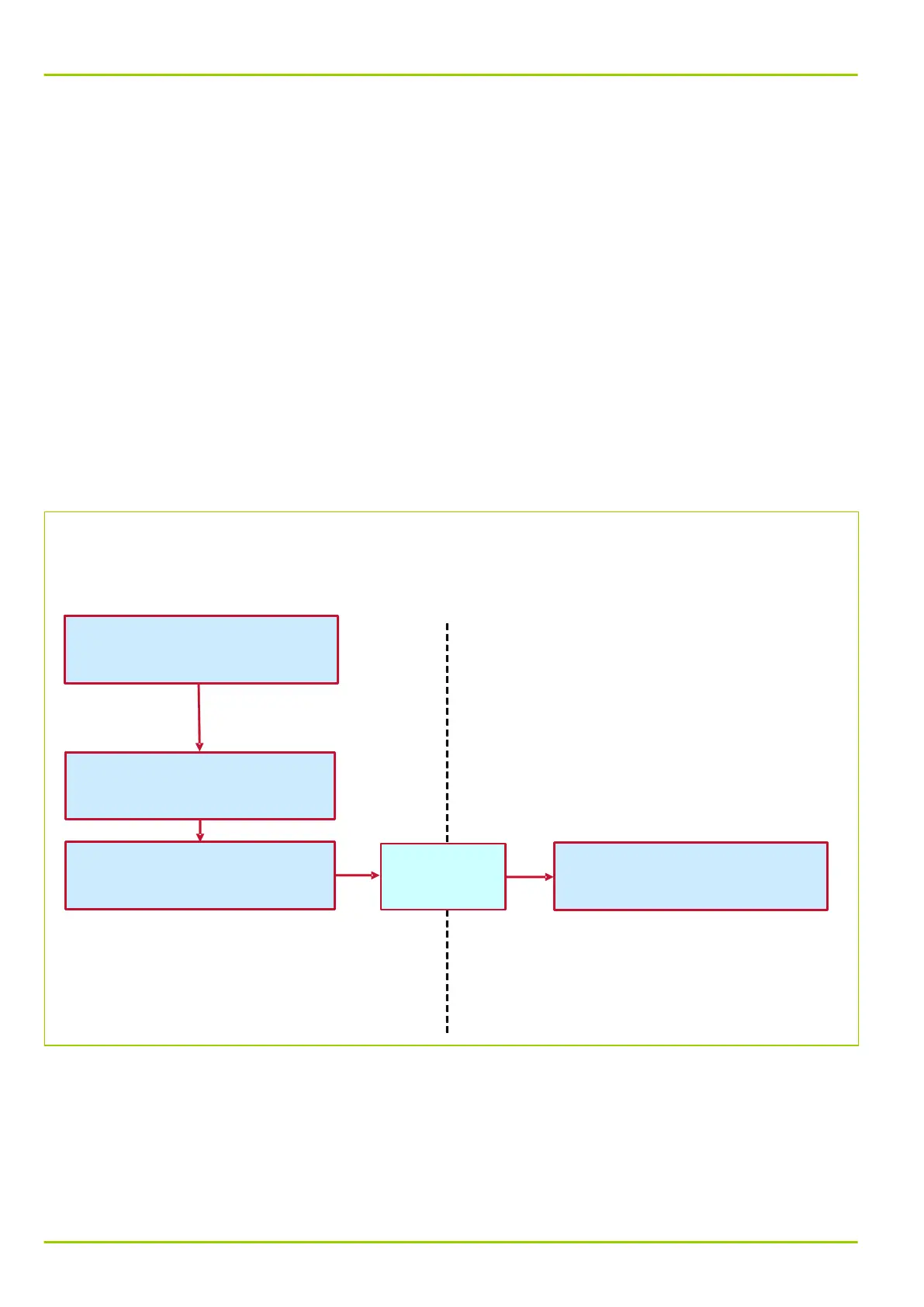

Fig. 3-19: Uniqueness of Control.
P631
3 Operation
3-30 P631/EN M/R-11-C // P631-310-650
