Micom P631 - Page 93

12Z6213A
INP:
Fct. assignm. U xxx
[ XXX XXX ]
&
&
Selected function
INP:
Oper. mode U xxx
[ YYY XXX ]
&
0: Active "low"
1: Active "high"
2: Active "low", filt.
3: Active "high", filt.
Input signal
0
1
2
3
Function 1 EXT
Function 2 EXT
Function 3 EXT
Function n EXT
Activate function
-Uxxx
INP:
Filter
[ 010 220 ]
&
&
&
&
INP:
State U xxx
[ ZZZ ZZZ ]

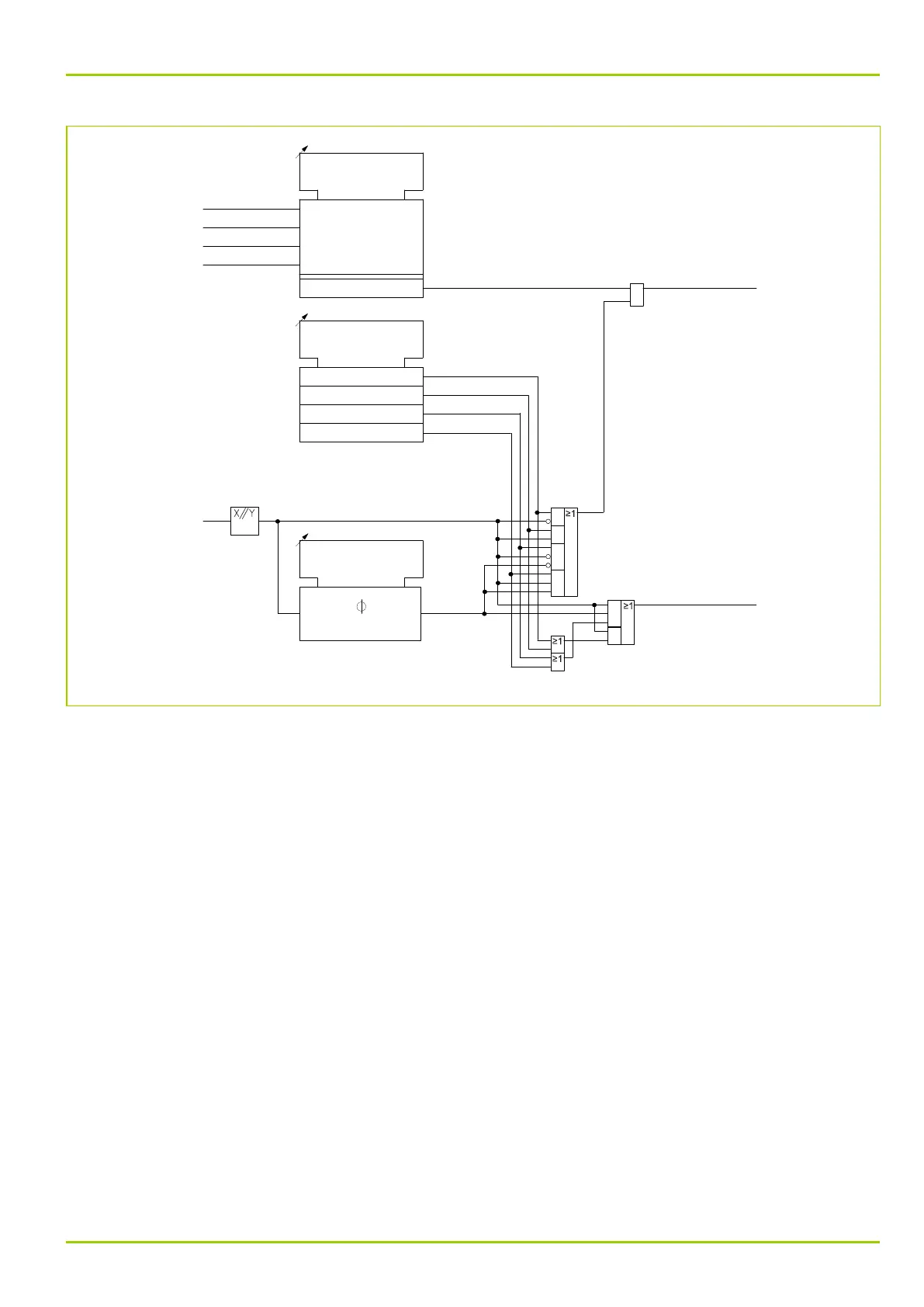

Fig. 3-22: Configuration and operating mode of the binary signal inputs.
3 Operation
P631
P631/EN M/R-11-C // P631-310-650 3-37
