Appendix | Operating Menu
optoCONTROL 2600
7
ESC
Leading edge < No.
of visible edge
Error:
leading edge >=
No. Of edges
press return
No
Yes
ESC
Leading edge < trailing edge
=< No. Of visible edges
Error:
trailing edge <=
leading edge
pr
No
Yes
Error:
trailing edge >
No. Of edges
press return
worked on segment
==
number of segments to
be measured ?
No
Yes
detected edges: 6
1.segment
1st edge ?: 1
3
1
2
0
detected edges: 6
1.Segment
1st edge : 1
2nd edge ?: 2
3
1
2
0
back to menu
3100
worked on
segment + 1

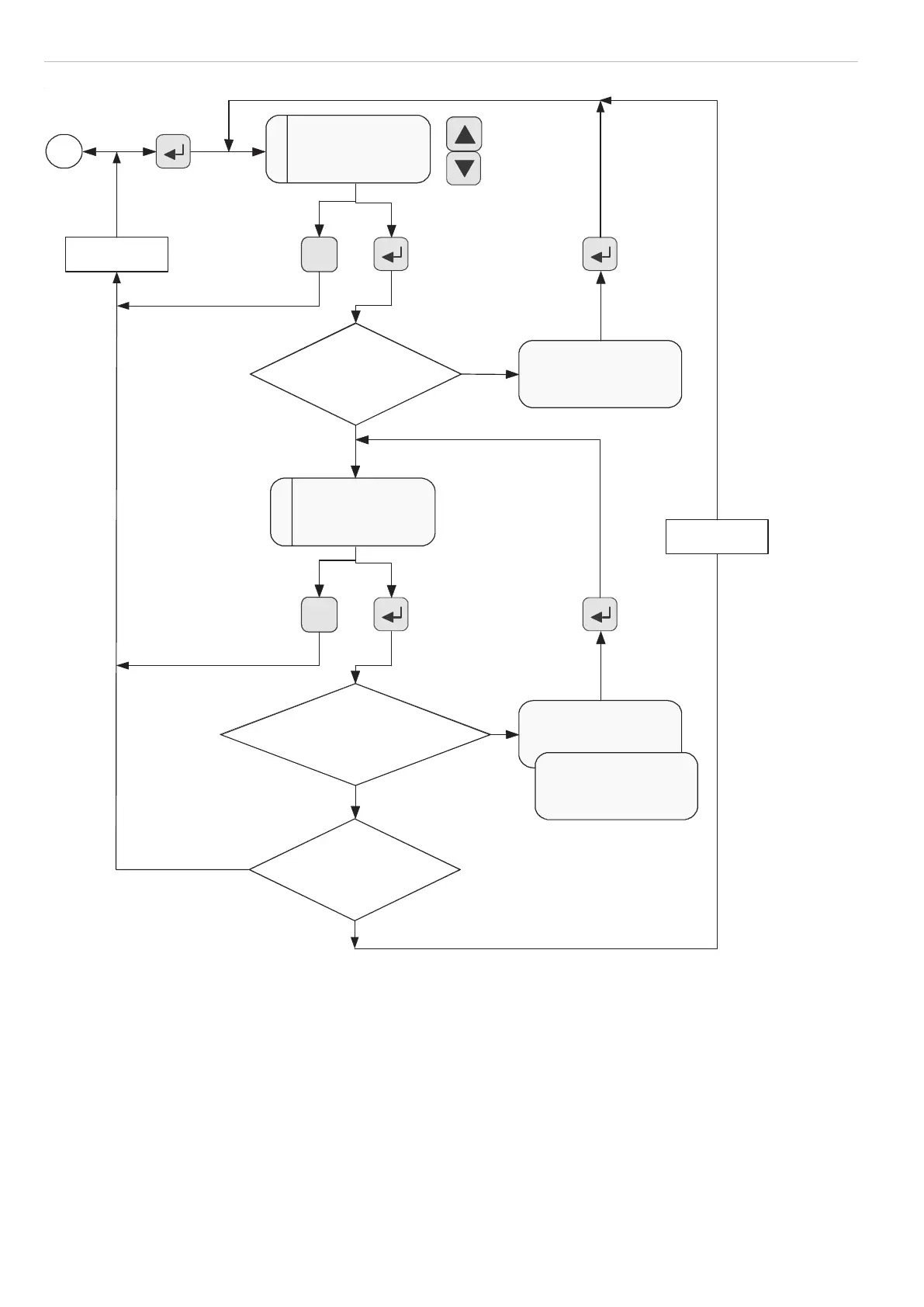

Fig. 73 Operating menu Editing the Measurement Program, part 3
The leading edge can also be set = 0; then the measurement is taken from the zero point of the receiver.
