Page 18
Measure
optoCONTROL 2600
5.3 Mounting the Controller
The controller should be mounted with four M4 screws (not included in the supplied items)
on a flat mounting plate. The controller can be mounted in any orientation.
i
Pay attention to sufficient space for connectors and cables.
ESC
195.15 (7.68)
155 (6.1)
191.05 (7.52)
97 (3.82)
110 (4.33)
45 (1.77)
Ø4.6 (.18 dia.)

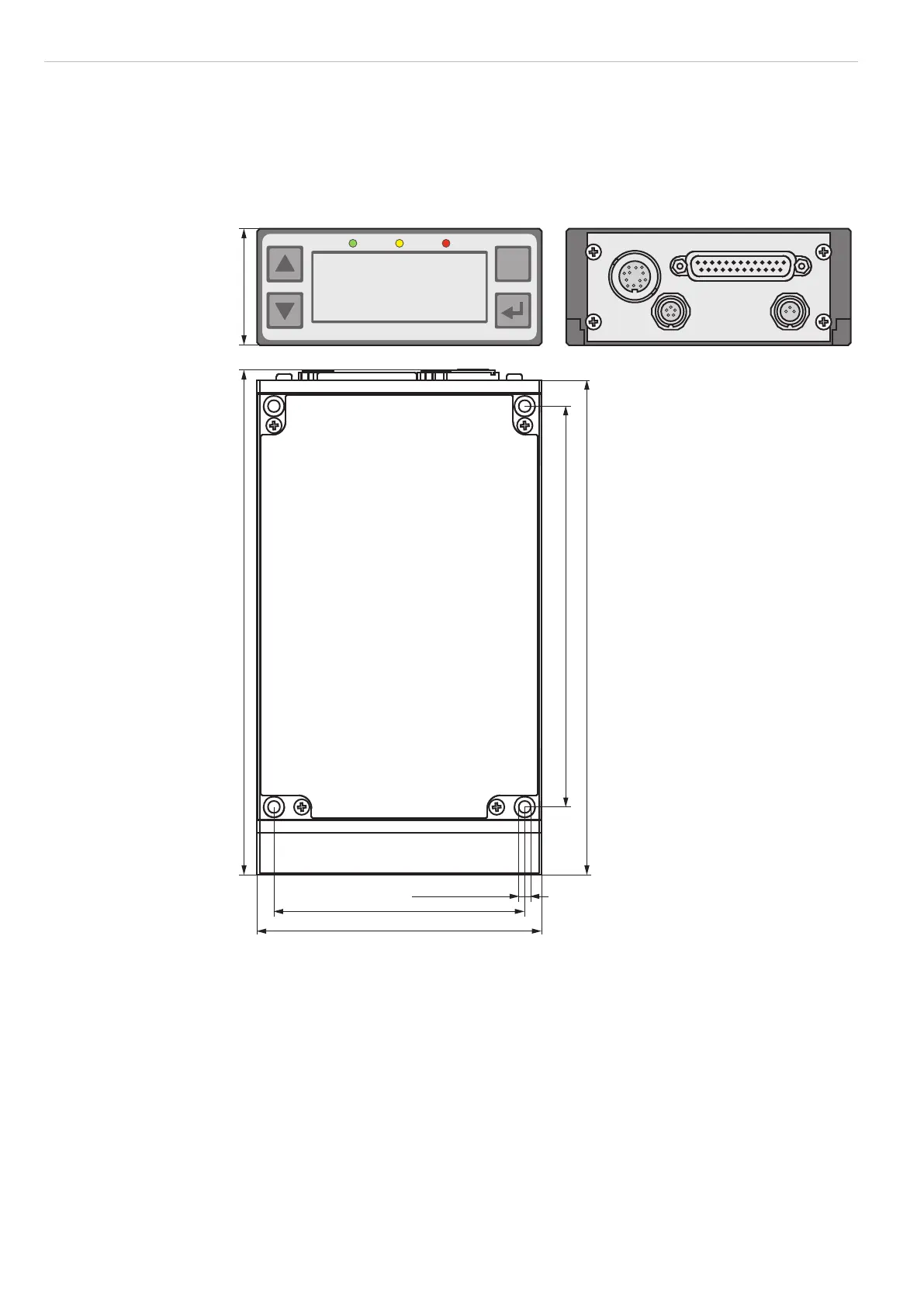

Fig. 17 Dimensional drawing controller
Dimensions in mm (inches)
i
The light source and receiver are assigned to their particular controller through the
serial number and must not to be endangered.
Minimum cable bending radius
Signal output cable SCA2500 respectively SCD2500
Flexible: 96 mm Fixed: 40 mm
