6.3.6 Select Measurement Program
The six standard measurement programs cannot be modified. They can be used though as templates for your own
user-defined measurement programs. First, select a suitable standard program, see Fig. 29.
(End of scan)
Edge 4 (dark - bright)
Edge 3 (bright - dark)
Edge 2 (dark - bright)
Edge1 (bright - dark)
(Start of scan)
Receiver
Edge bright - dark
Edge dark - bright

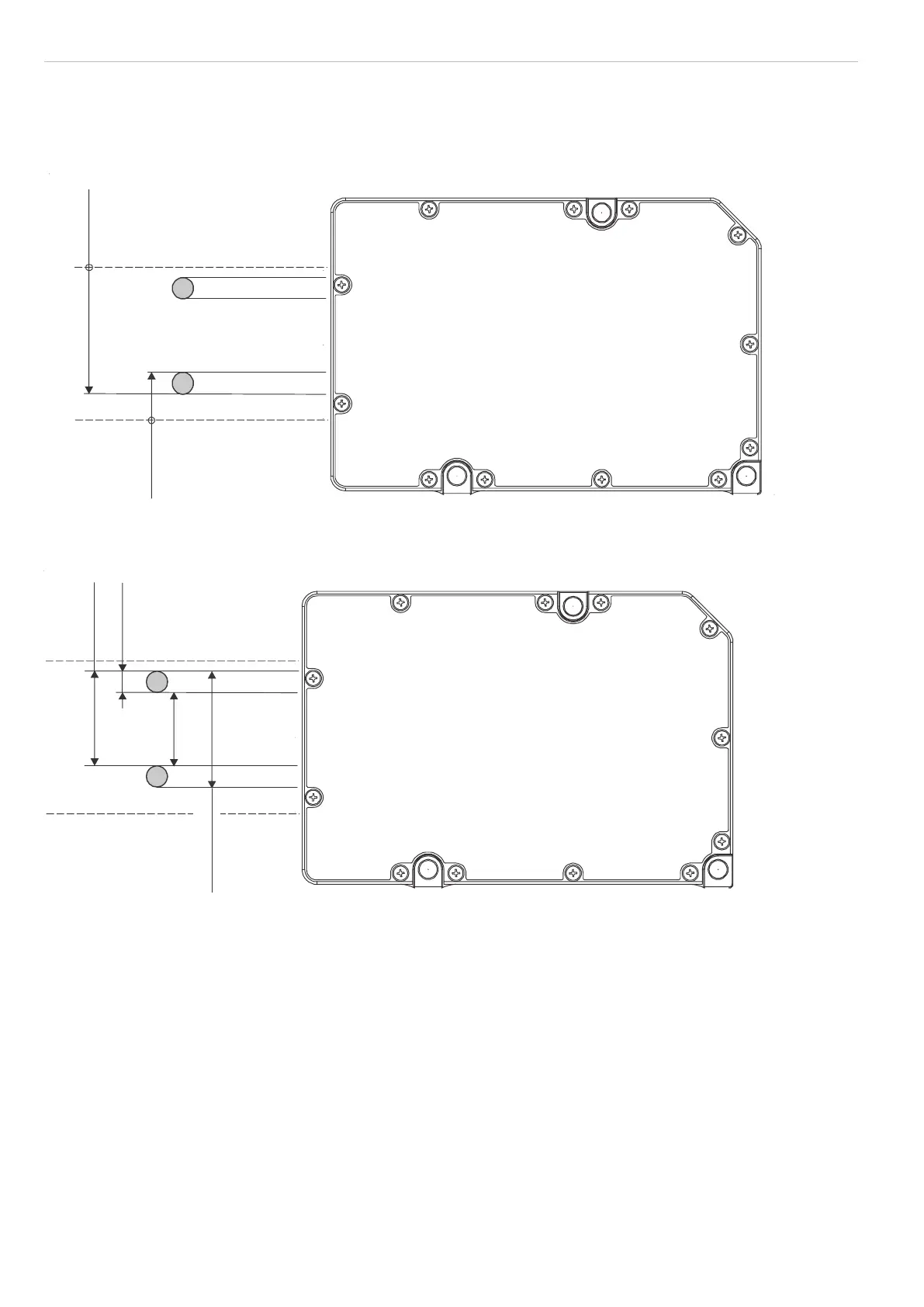

Fig. 27 Definition of terms for measurement program edge
(End of scan)
Edge 4 (dark - bright)
Edge 3 (bright - dark)
Edge 2 (dark - bright)
Edge 1 (bright - dark)
(Start of scan - zero)
Receiver
Segment 2 4 Segment 3 4
Gap
Diameter/ Width
Fig. 28 Definition of terms for measurement programs segment, gap, diameter and width
