Page 28
Measure
optoCONTROL 2600
6.3.7 Edit Measurement Program (User-specific Programs)
Here, you can carry out user-specific adjustments to the previously selected measure-
ment program.

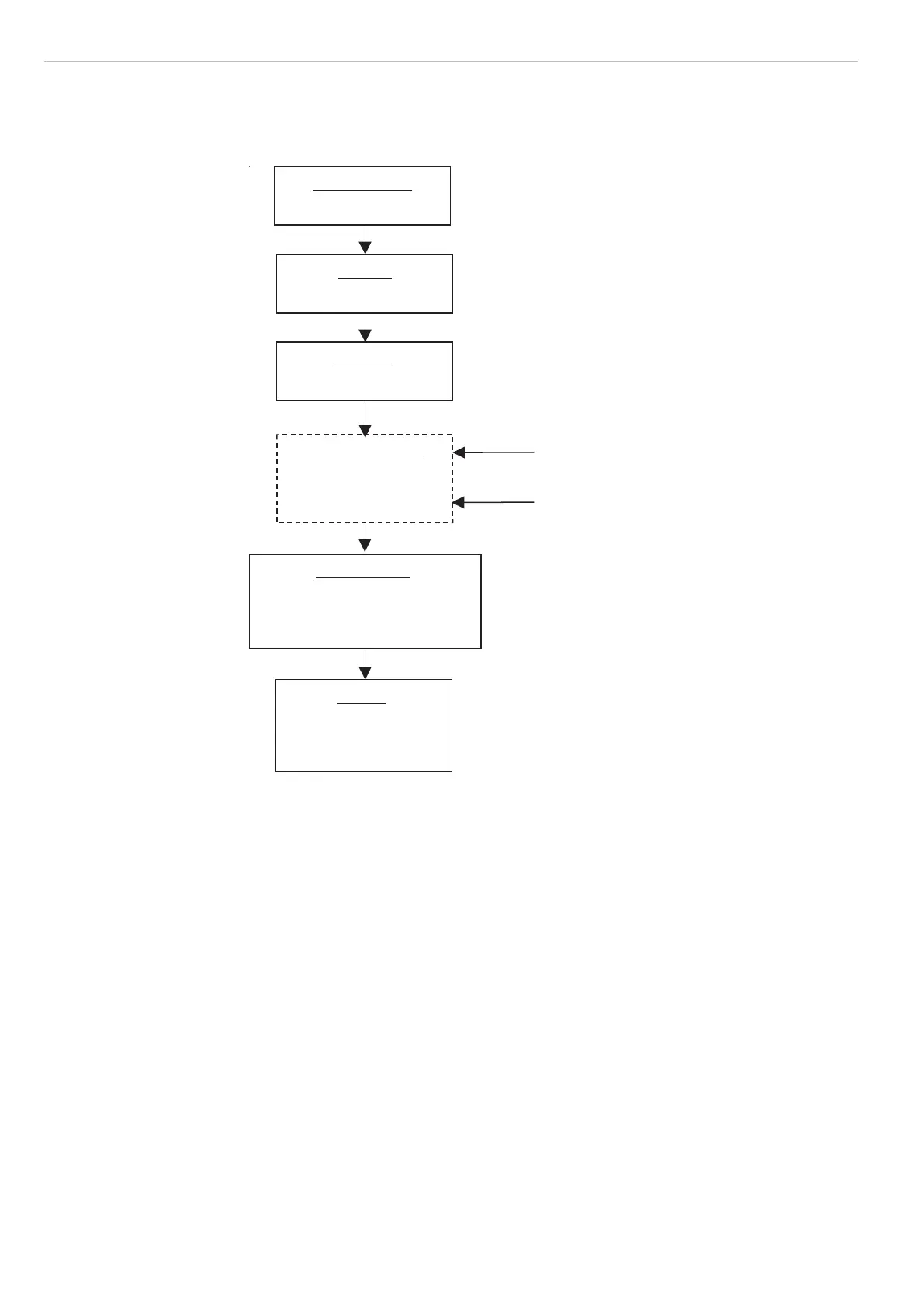

Measurement
as raw value
Median
Can be switched off
Average:
1-4096
Computation:
Display (with Offset / factor),
Analog (with Offset / factor),
Digital values and limits
Measuring mode:
Trigger or
continous Max, Min,
P-P
Output:
Display, analog,
digital values, limit
outputs
Reset
Trigger
Fig. 30 Measurement flow
i
The trigger only functions when the external light source control is not active.
During selection, the measurement program which is entered in the option data in the
main memory is always first displayed. If parameters have been changed, then you can
decide whether these settings are to be retained also after switch-off. Then you must
save a user-specific program under a new, freely selected name. This is then automati-
cally activated during switch-on. USER1 or the last user-specified name used appears as
a suggestion. These can be overwritten so that the user-specific program can be edited
and saved again and again.
If you respond negatively with ESC to the query “Measurement task store?”, the changes
made only remain active until the device is not switched off.
i
The measurement program name must be regarded as a comment and not as a
search criterion, i.e. multiple use of the same name is not evaluated but is not per-
missible.
Up to four user-specific programs are possible. User-specific programs already saved
can be called up and activated under Select program.
After saving (or responding negatively with ESC), you are again returned to the measure-
ment mode. The measurement program name appears in the measurement display
mode Full Display for checking in the display.
