Appendix | Other Pin Assignments
optoCONTROL 2600
A 3.3 Interface Card IF2008/PCIE
The IF2008/PCIE interface card enables synchronous acquisition of up to four digital sen-
sor signals and two encoders.
The ODC 2600 controller is connected to the IF2008/PCIE interface card from MICRO-EP-
SILON Eltrotec GmbH, see A 1, via the SCD2500-x/IF2008 signal output cable on the
upper socket (sensor 1).
You can connect a second ODC 2600 to the X2 socket (sensor 3).
You require an IF2008-Y adapter cable from MICRO-EPSILON Eltrotec GmbH, see A 1, to
connect more than two ODC 2600 sensors to an IF2008/PCIE.
The interface parameters at the ODC 2600 must be set to the active RS422 interface and
the following default settings:
Baud rate: 691200 Baud
Data format: 8 data bits, no parity, 1 stop bit (8, N, 1)
i
IF2008/PCIE requires an X7 supply via PC.

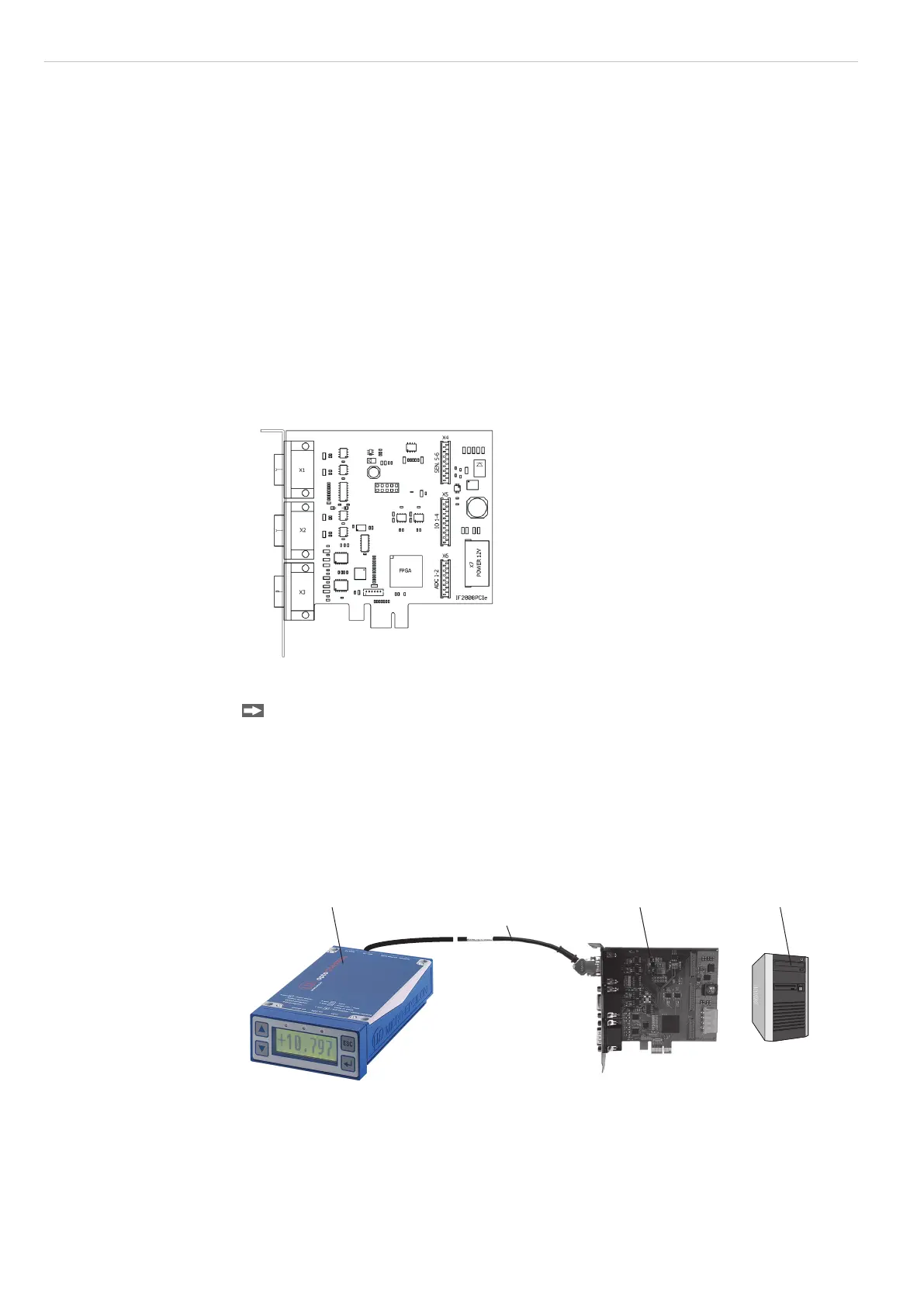

Fig. 59 View IF2008/PCIE
Turn on downstream computers first and then the controller.
All inputs are isolated via optocouplers on the ODC 2600 controller as well as on the
IF2008/PCIE interface card.
The designations Sensor 1 and 3 refer to the terminology of the MEDAQlib, see A 1,
driver software and the ICONNECT data acquisition software from MICRO-EPSILON Eltro-
tec GmbH.
For further information, please refer to the documentation about IF2008/PCIE, ICONNECT
and MEDAQlib from MICRO-EPSILON Eltrotec GmbH.
Controller ODC 2600 IF2008/PCIE PC
Interface cable
SCD2500-x/IF2008
Fig. 60 System design for the operation of the IF2008/PCIE interface card
