Version 1.10 Page 135 of 203
5.1.2.1 GYKO
If the jump test was performed using the Gyko inertial sensor as well (usually at the height of the
belt), other columns are added to the previous values.

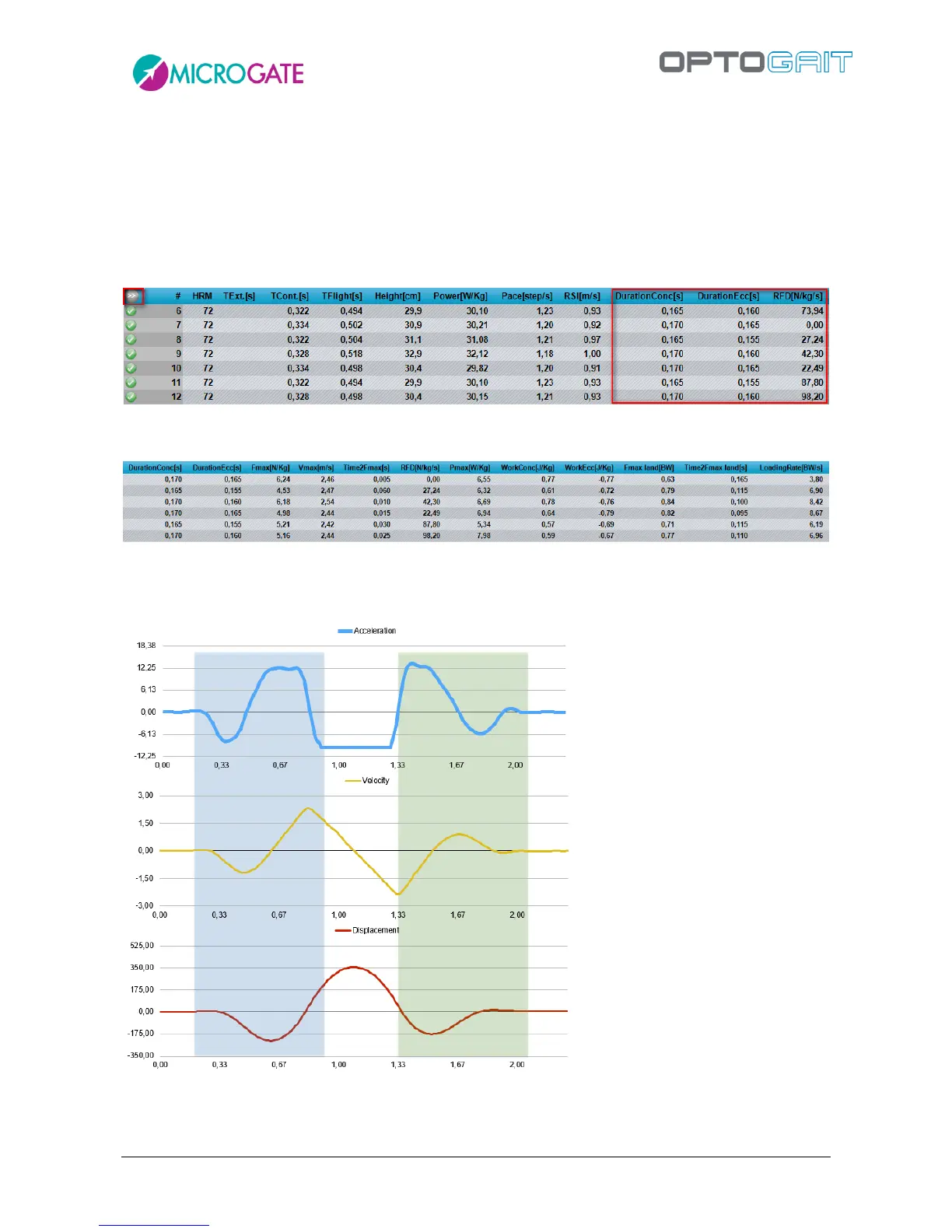

The most important ones are those highlighted in the figure below:
By clicking on the >> button you can view additional columns:
Let's take as an example a Counter Movement Jump (CMJ) where we can divide the jump into two
phases: Pre-Jump (Blue Area) and Landing (Green Area)
Figure 105 - Stages of a jump
5.1.2.1.1 Pre-Jump
