Data
o Data: shows/hides the grid with numerical data
o Bars: shows/hides the OptoJump Next bars
Video
o Video: shows/hides the acquired video
o Play: you can play ‘Single’ (only once) or ‘Continuous’ (looping the test)
o Overlay: using graphical tools draw on a still picture and save this image as an
overlay ( ); use this flag to show or hide it
o Video choice: Allows to choose whether to show or hide one of the two videos
o Speed: sets the playing speed: normal (1x) or slowed down by a factor from 0.1x to
0.9x

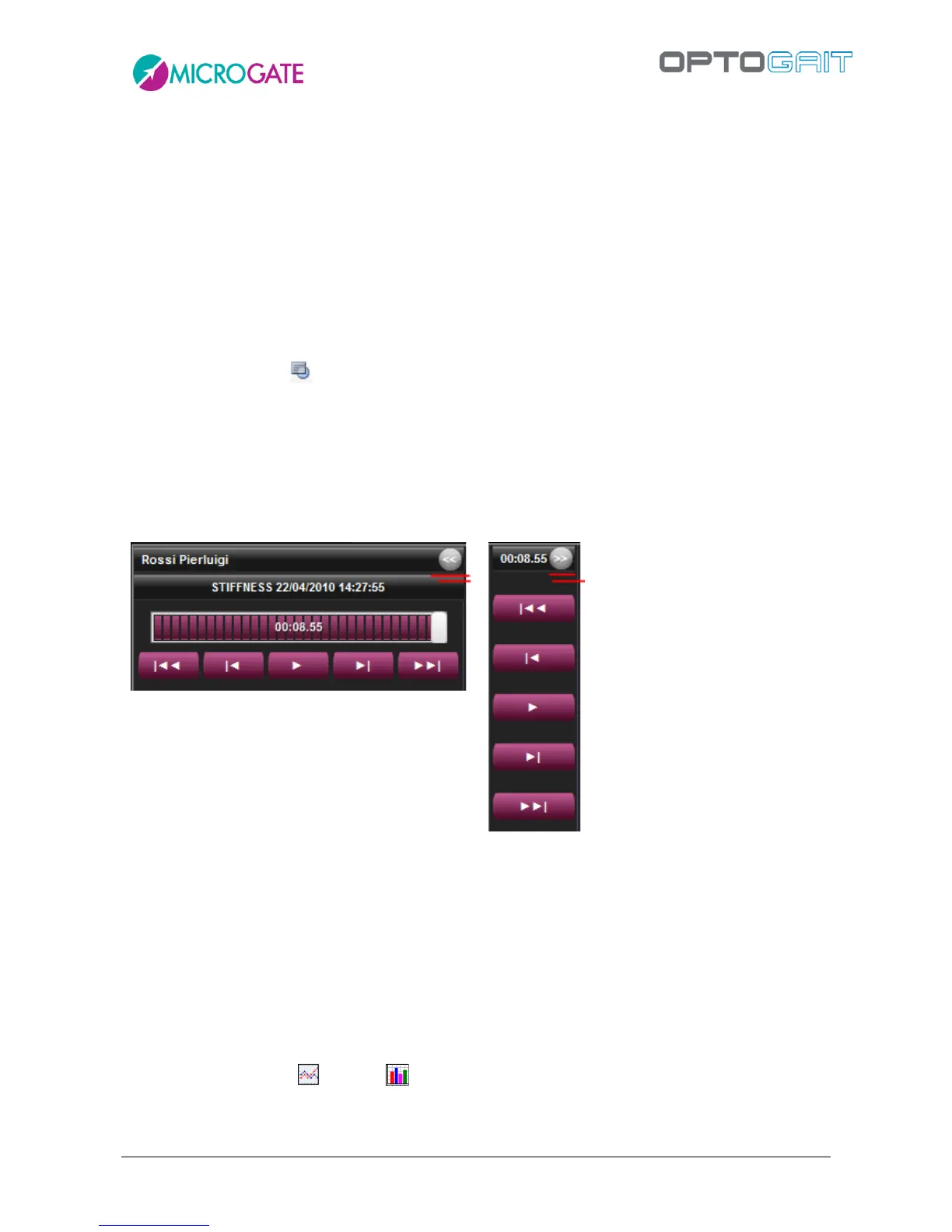

The Configuration panel can be closed (i.e. minimized) using the button << in the upper left corner.
Only the video commands (play, stop, ff-fw, rew, etc.) are available, allowing to view the test. Use
>> to open again the panel.
4.3.1.2 CHARTS
In OptoJump Next charts there are usually some possible viewing possibilities. (e.g. in Figure 10
‘Flight times’ and ‘Contact times’ are displayed). To change view type just left-click with the mouse
on another option (such as ‘Power’ or ‘Height’). The buttons have the same colors as the chart
bars/lines and are therefore used as legend.
In addition, if you place your cursor on one of the buttons, the displayed chart type will appear on
the right. It can be lines ( ) or bars ( ). To change the chart type just left-click with the mouse on
the corresponding symbol.
